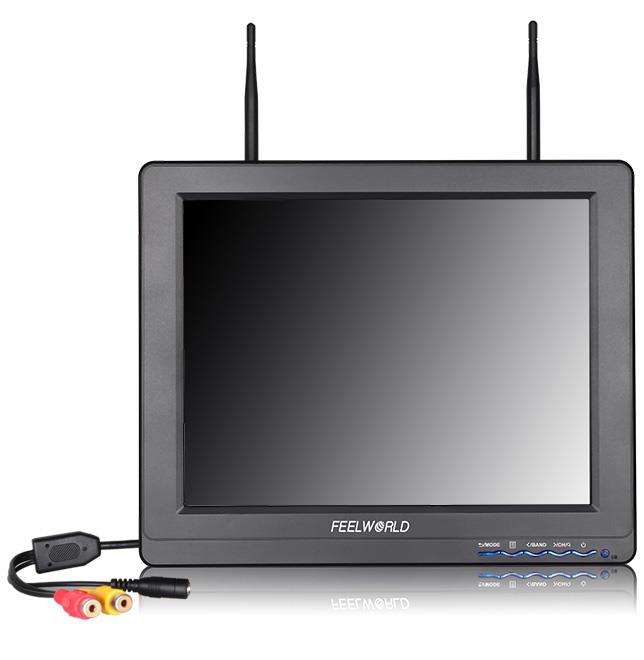

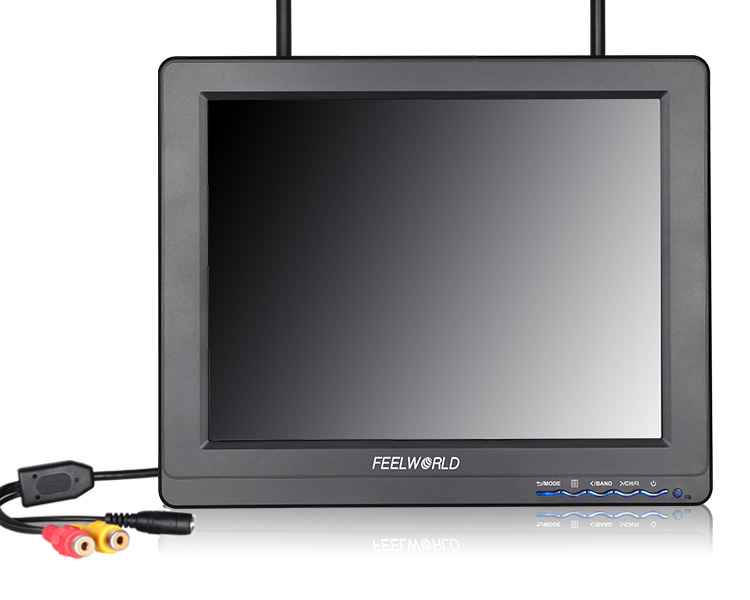

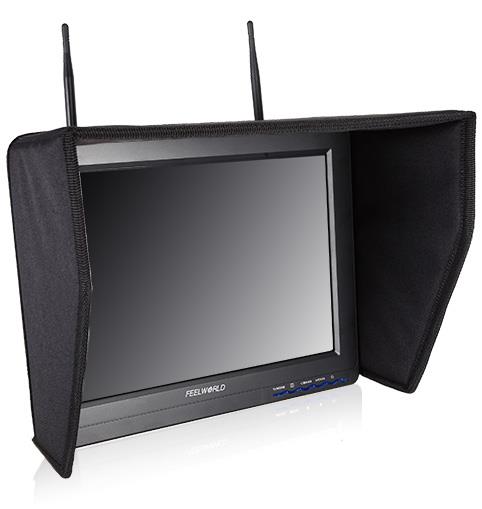

12.1" 800x600 FPV Monitor with Dual 5.8G 32CH Diversity Receiver FPV121DT
-
12.1" 5.8GHz Dual Receiver Monitor
This FPV121DT monitor is the ultimate solution to FPV First Person View Flying as it can receive any channel on the 5.8Ghz fpv band, 12.1" FPV monitor with dual 5.8Ghz (4 bands & total 32 channels) wireless receiver for Aerial & Outdoor Photography. Built in Dual Receiver Automatically for the best reception Automatic Antenna Switching, No "blue screen" problem when the signal gets weak. Simulation of composite video AV inputs,aerial camera connection.Sunlight readable with ultra brightness & definition screen.
-
5.8GHz Wireless AV Receiver
· Built-in AV receiver support PAL / NTSC
· Simulation of composite video AV inputs, aerial camera connection
· 5.8Ghz frequency 4 Bands and total 32 channels
· Snow screen, no more "blue" screen
Wireless Receiver 32 Channel (Mhz)
Optional RaceBand
-

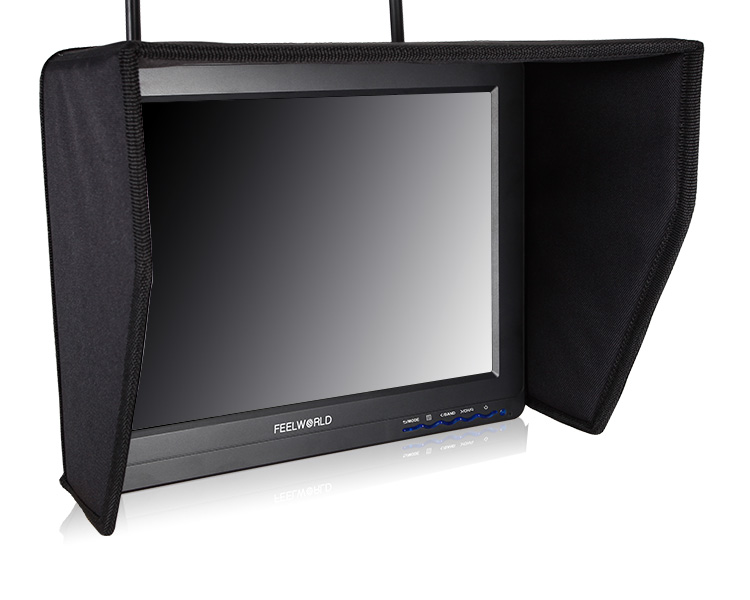

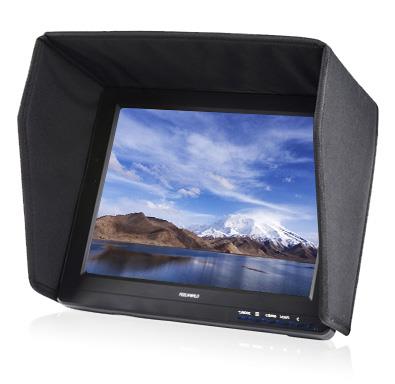

Screen Sunshade
New generation super deep sunhood allows you get ideal view effect in almost all the environment.
1. Channel Auto searching ,selection via button
2. Best Channel Receiption via Antenna Auto-switching
3. 5.8GHz,32 Channels Receiver
2. Supports Composite Video RCA Input
3. Display Resolution up to 1920x1440 Pixels
4. High Sensitivity:-90dBM
2. Best Channel Receiption via Antenna Auto-switching
3. 5.8GHz,32 Channels Receiver
2. Supports Composite Video RCA Input
3. Display Resolution up to 1920x1440 Pixels
4. High Sensitivity:-90dBM
Display Spec.
| Model | FPV121DT |
| Screen Size | 12.1" |
| Resolution | 800×600 pixels |
| Pixe Pitch | 0.3075(H)×0.3075(V) mm |
| Aspect Ratio | 4:3 |
| Brightness | 330cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 60°/80°(U/D) |

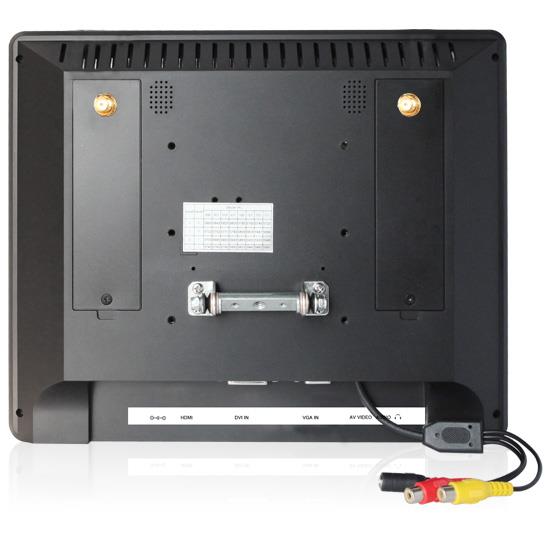

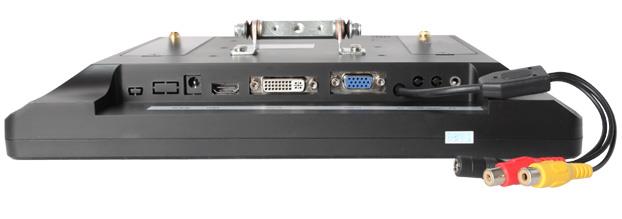

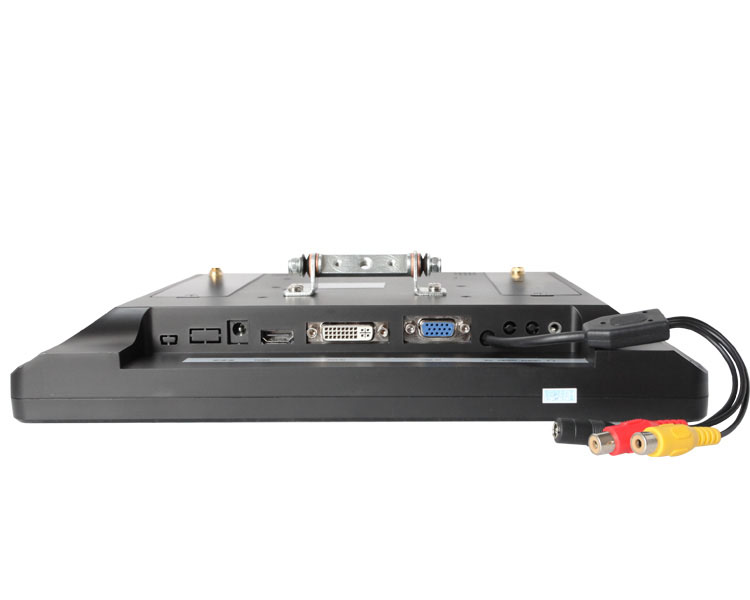

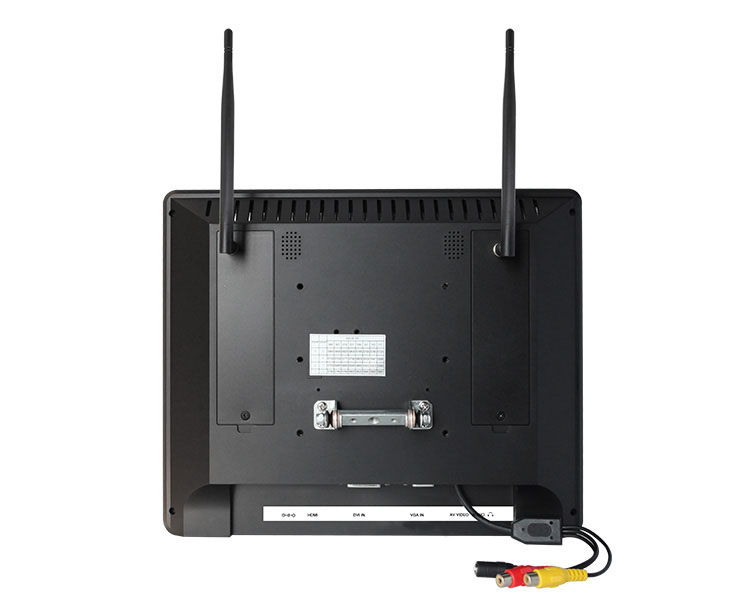

Input
| 1 X HDMI | HDMI |
| 1 X RCA | Video |
| 1 X RCA | Audio |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
Audio
| Audio Out | Stereo Headphone, Speaker |
Video Support Format
| NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG. |
General
| Input Voltage | DC6～24V |
| Power Consumption | ≤12W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |

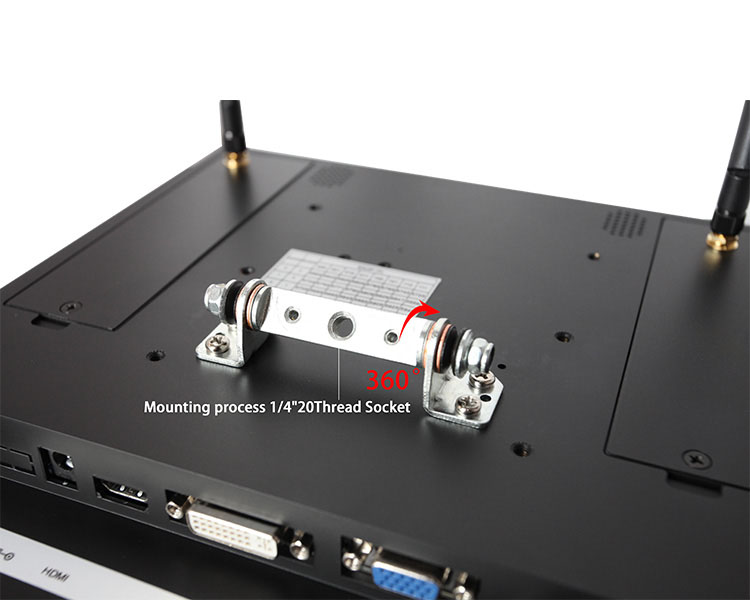

| Install Way | VESA 100mm×100mm |
| Unit Size | 300L×245H×45.3D (mm) |
| Unit Weight | 1280g |
Professional FPV Monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission

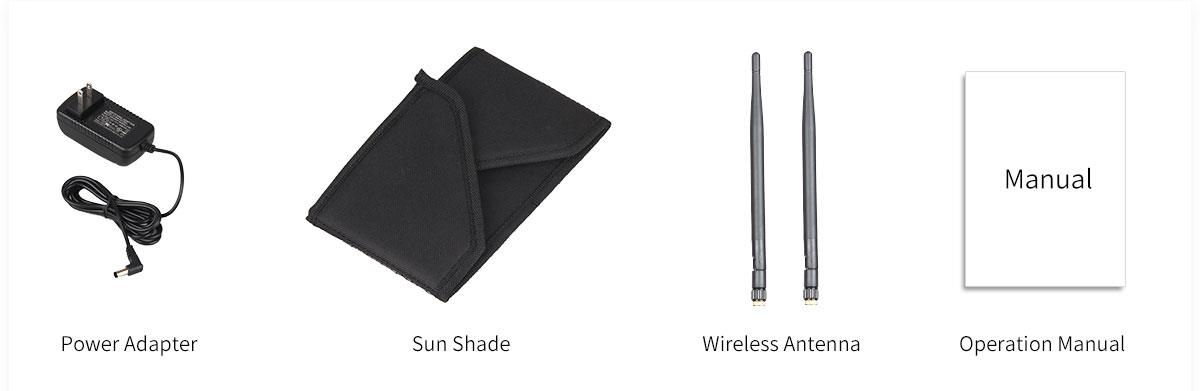

Standard Accessories:
1× Power Adapter
1× Sunshade
2× Wireless Antenna
1× Operation Manual
1× Power Adapter
1× Sunshade
2× Wireless Antenna
1× Operation Manual
