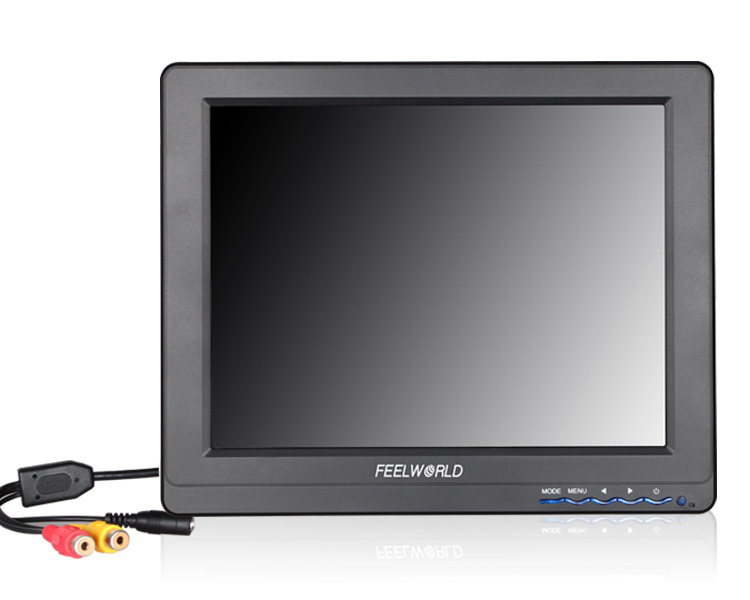

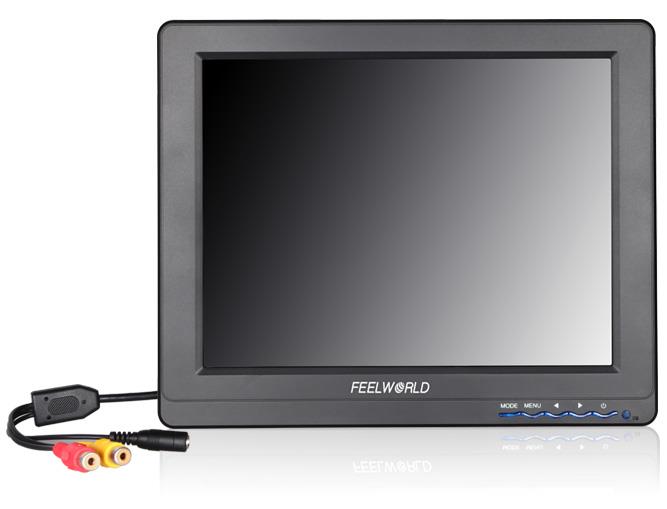

12.1" 800x600 Ground Station HD FPV Monitor with HDMI, DVI, VGA, Audio Video FPV121A
〔small big〕
Number: 20150423131748991015384
Model: FPV121A
Size: 12.1"
Introduction: Screen Size： 12.1"
Resolution： 800x600 pixels
Aspect ratio： 4:3
Brightness： 330cd/m²
Input: HDMI, Video, Audio, DVI, VGA
Output: Stereo Headphone, Speaker(built-in)
DM:
Download:

  • 12.1" Aerial Equipment LCD Monitor
    1. FPV aerial dedicated input port, high definition. High brightness, No Blue Screen under weak signal.
    2. Multiple color format support,manually enter the menu to select the appropriate standard, stronger adaptability.
    3. Analog composite video AV input, connect FPV aerial camera.

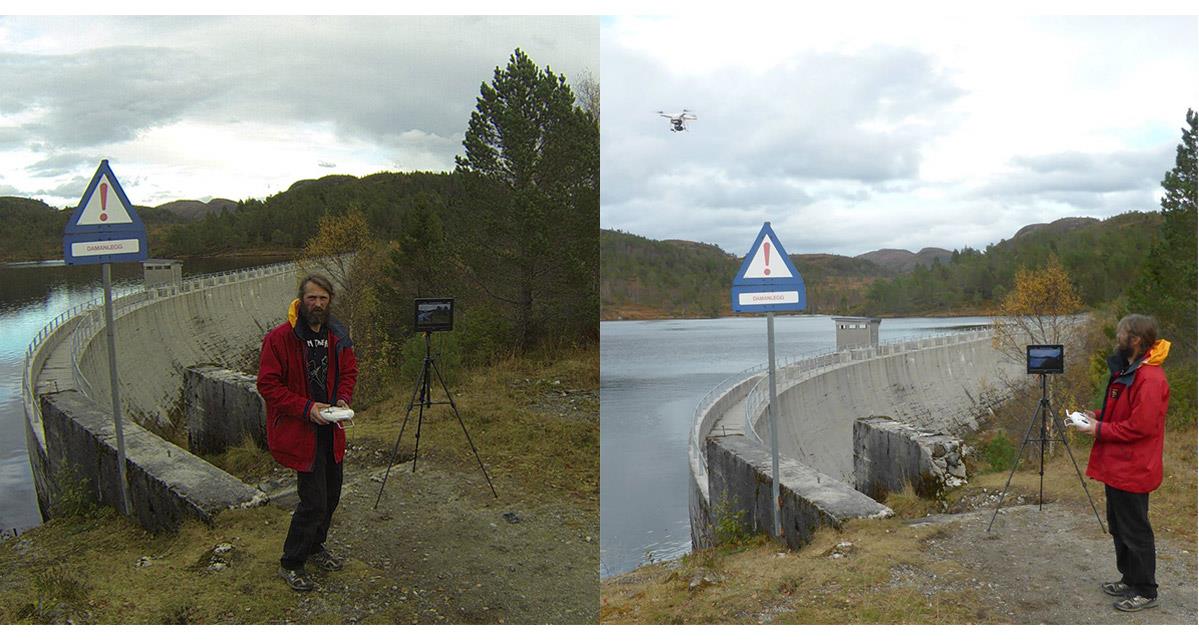

    4. Connect with camera,as a monitor or aerial monitor.
    5. High brightness, contrast ratio sunshade cover, can see clearly under sunlight.
    6. Multiple installation ways,convenient for different angles to view.

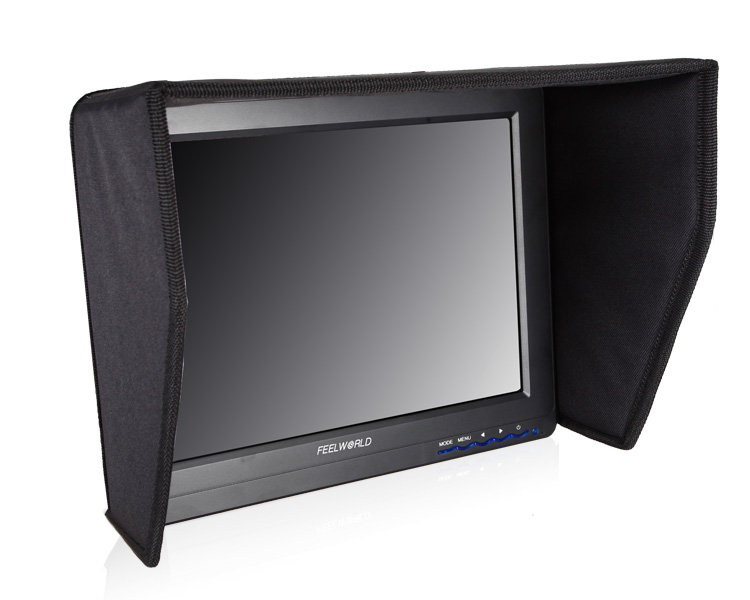

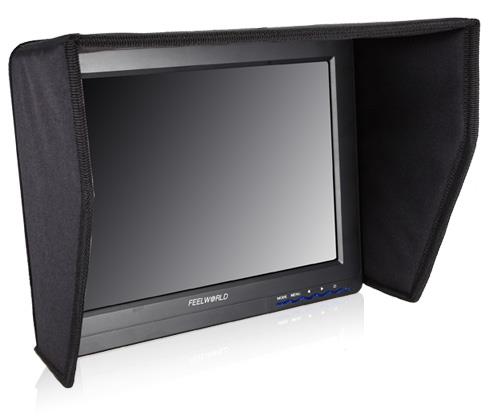

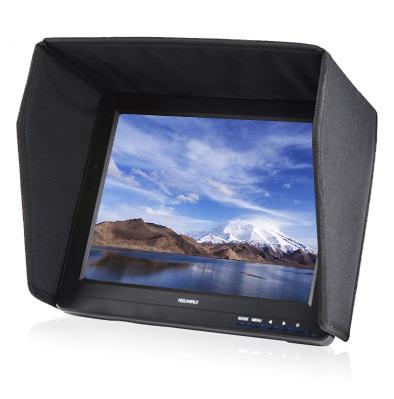

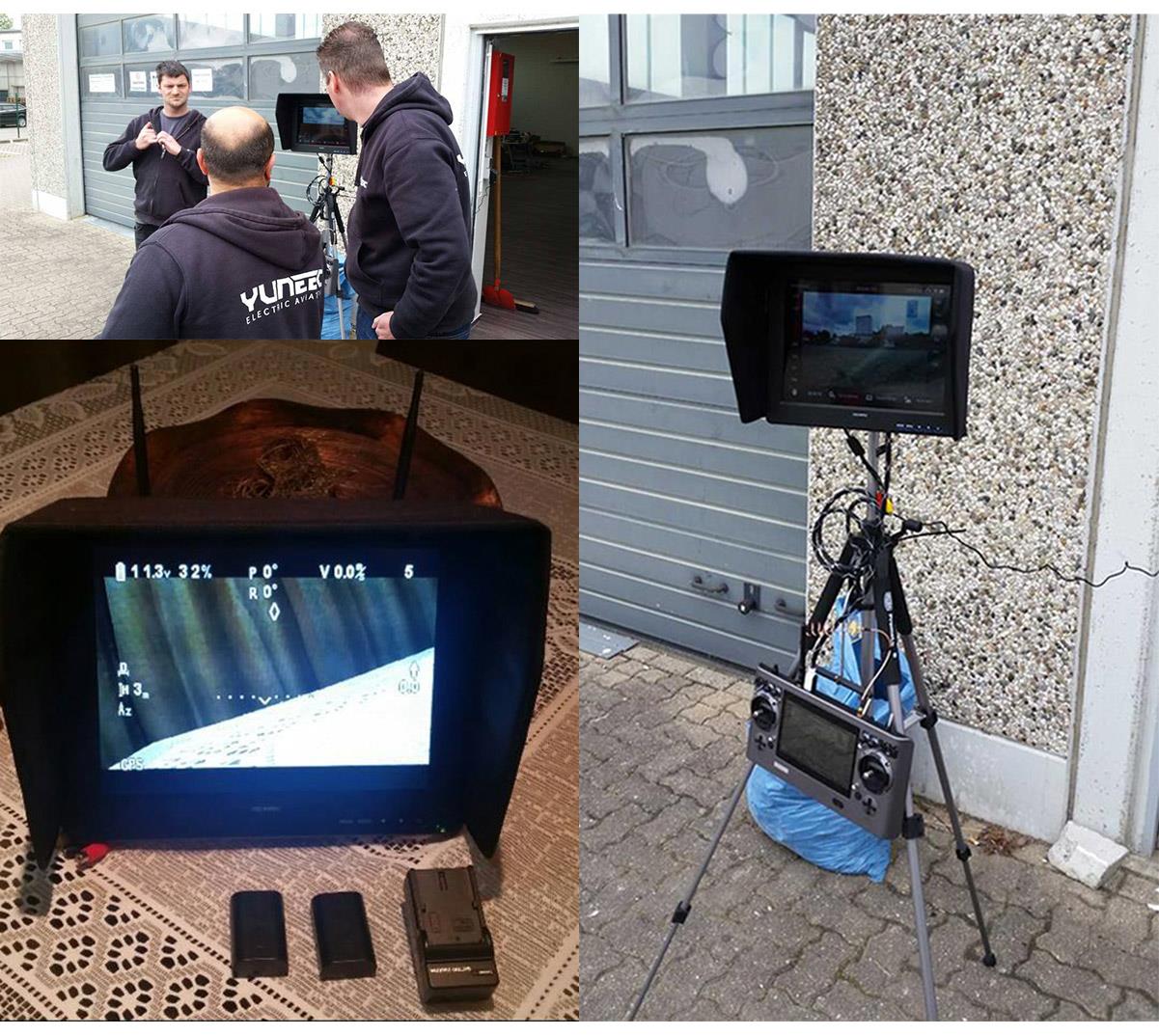

  • Screen Sunshade
    New generation super deep sunhood allows you get ideal view effect in almost all the environment.

1. No Blue Screen
2. Default Display View
3. Supports Composite Video RCA Input
4. Display Resolution up to 1920x1440 Pixels



Display Spec.
 Model  FPV121A
 Screen Size  12.1"
 Resolution  800×600 pixels
 Pixe Pitch  0.3075(H)×0.3075(V) mm
 Aspect Ratio  4:3
 Brightness  330cd/m²
 Contrast Ratio  800:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 60°/80°(U/D)

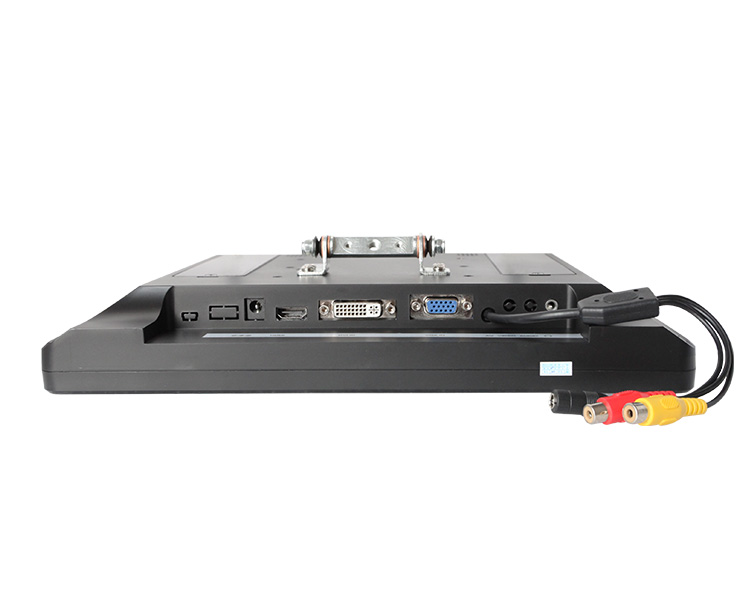

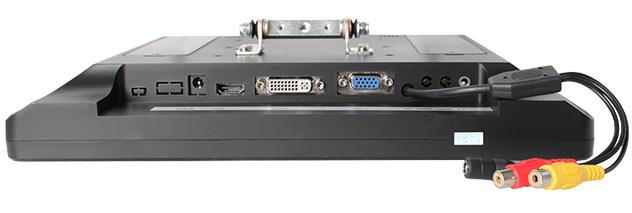

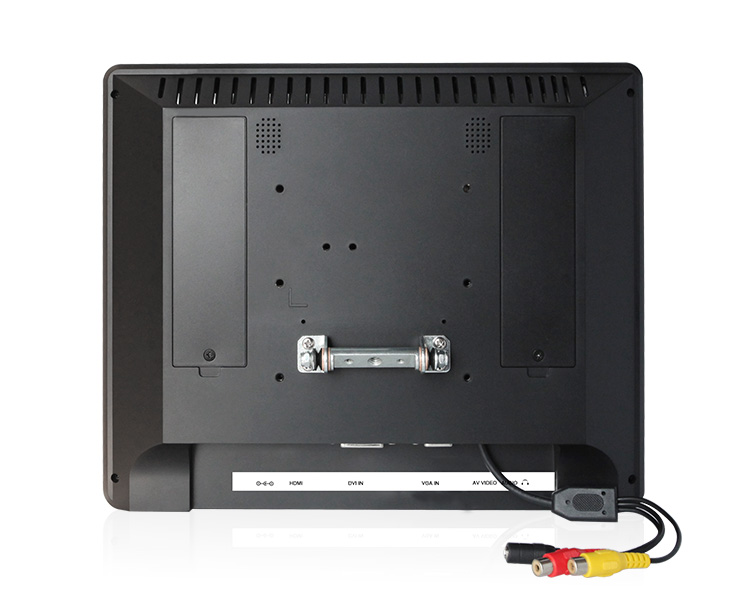

Input
 1 X HDMI  HDMI
 1 X RCA  Video
 1 X RCA  Audio
 1 X DVI  DVI
 1 X VGA  VGA

Audio
 Audio Out  Stereo Headphone, Speaker

Video Support Format
NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

General
 Input Voltage  DC6～24V
 Power Consumption  ≤12W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C

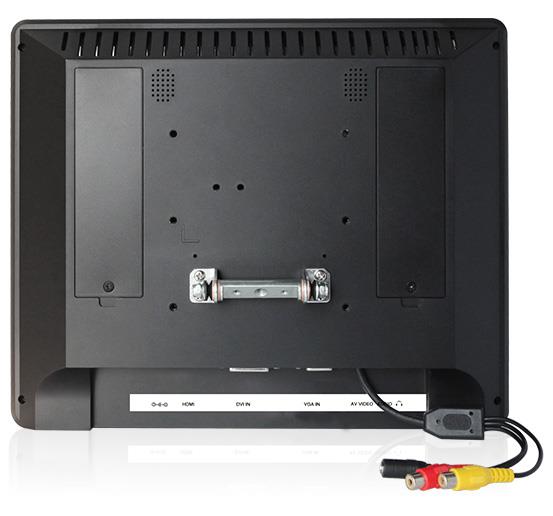

 Install Way  VESA 100mm×100mm
 Unit Size  300L×245H×45.3D (mm)
 Unit Weight  1280g

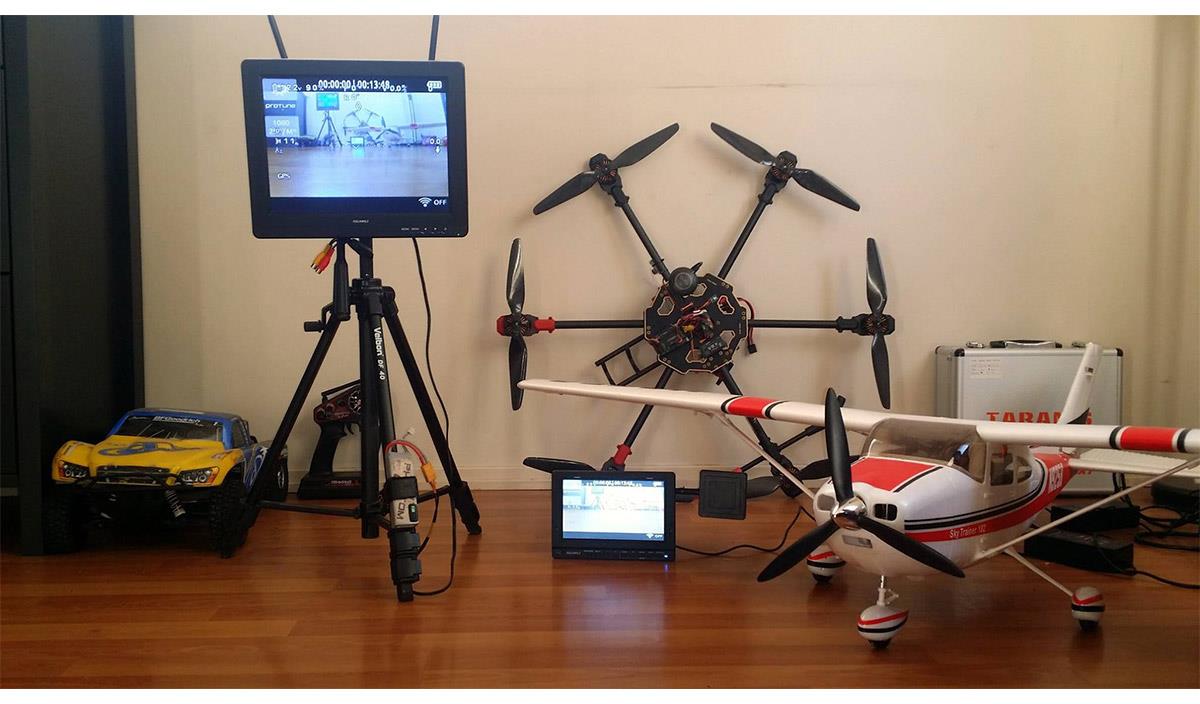

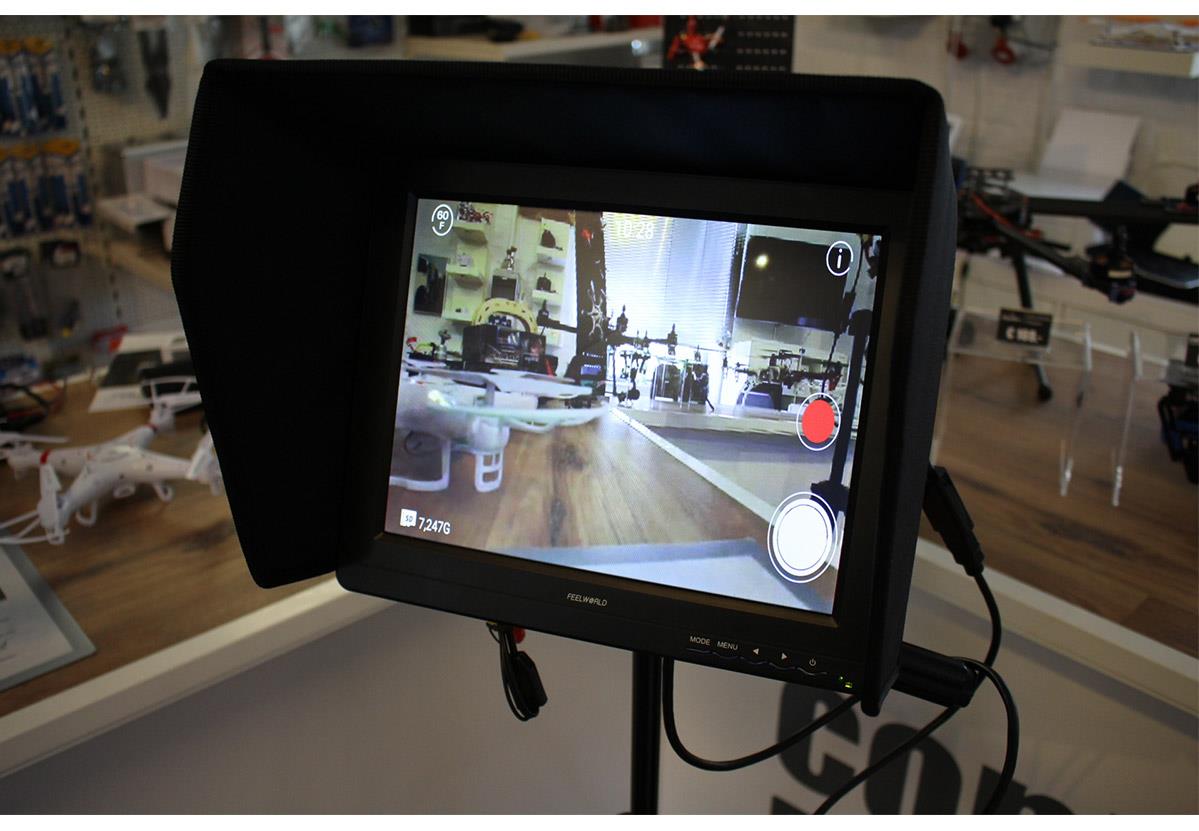

Professional FPV Monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission

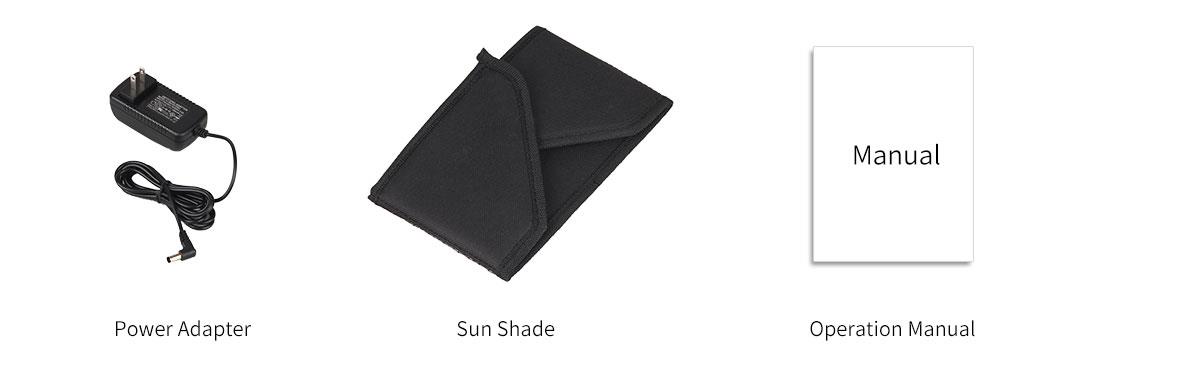

Standard Accessories:
1× Power Adapter
1× Sunshade
1× Operation Manual
