12.1" 800x600 TFT LCD Touch Screen USB powered Monitor DP121T
-
Introduction

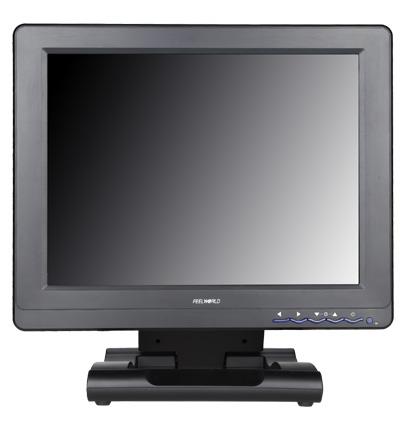

DP121T is a 12.1 inch TFT LCD USB Powered monitor.
DP121T use a high quality new LCD Panel, with 800x600 resolution, 330cd/m² high brightness and 80°/80°(L/R) 60°/80°(U/D) wide angle, which can display clear images.
It uses LED backlight, which has advantage like Energy-Saving, Long life and environmental protection.
One USB Cable does it all! Not need Power Adapter, not need VGA etc.
Displaylink Chip, support Windows OS, MAC OS.
Displaylink Chip, support Windows OS, MAC OS.
-

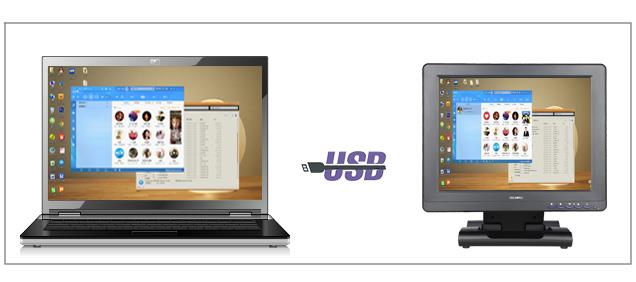

Duplicate
Copy the primary monitor's picture, when requiring more picture, it can easily handle.
-

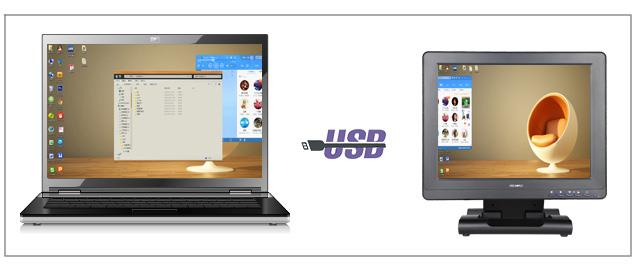

Extend
It can expand the primary monitor's picture, enlarge display area, conveniently cope with multitasking.
-
Primary Monitor
Can set the USB monitor as the primary monitor, deal with all special needs.
* The original primary monitor will be closed.
-

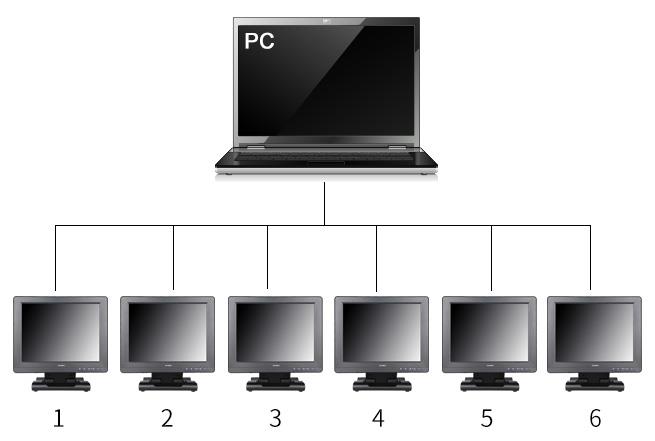

One PC Can Connect 6pcs USB Powered Monitors At The Same Time
Can be used on meeting or school etc.

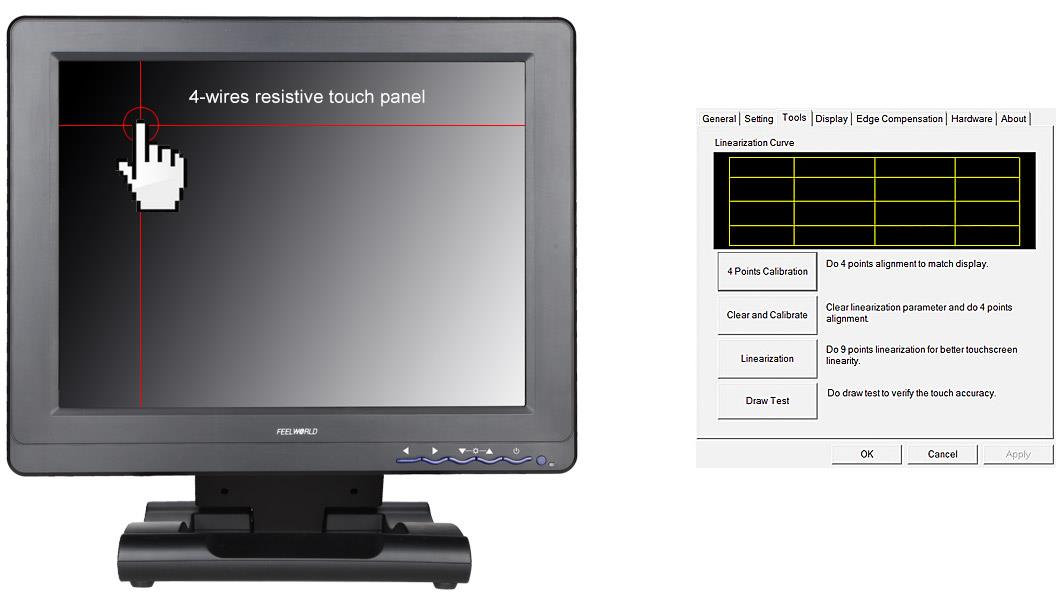

Touch Function
> Using 4-wires resistive touch panel,support Serials OS like Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6.
> With standard TouchKit Driver CD, you can install touch driver, changing settings and calibrate the touch very easily.
> USB Touch interface as standard.
> Using 4-wires resistive touch panel,support Serials OS like Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6.
> With standard TouchKit Driver CD, you can install touch driver, changing settings and calibrate the touch very easily.
> USB Touch interface as standard.

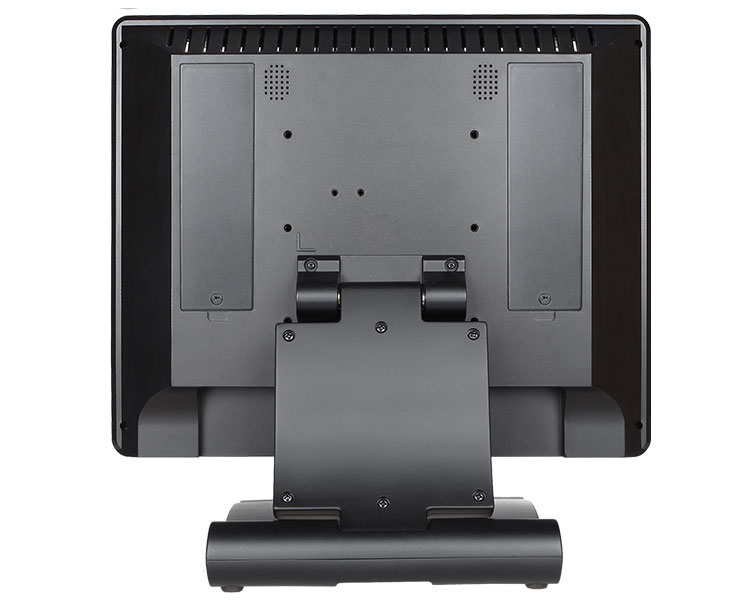

VESA 75mm Mount Holes
There has VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor. So it can be used with wall mount arm which support VESA 75mm.
There has VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor. So it can be used with wall mount arm which support VESA 75mm.
USB Output
Possible to connect with Keyboard, Mouse, Wireless Headphone etc through USB output.
Possible to connect with Keyboard, Mouse, Wireless Headphone etc through USB output.

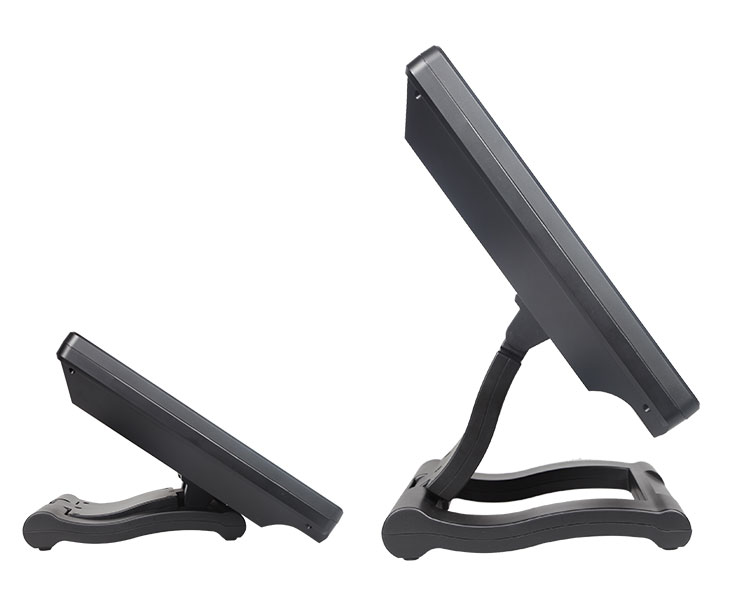

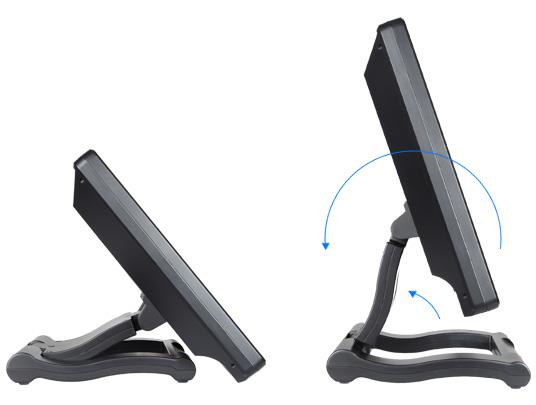

Folding Bracket
> Possible to stretch & folding
> Wall Mount possible
> Possible to stretch & folding
> Wall Mount possible
Display Spec.
| Model | DP121T |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB |
| Screen Size | 12.1" |
| Resolution | 800×600 pixels |
| Aspect Ratio | 4:3 |
| Brightness | 330cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 60°/80°(U/D) |
Input
| 1 X USB | USB |
Output
| 1 X USB | USB |
General
| Input Voltage | USB (DC 5V±10%) |
| Power Consumption | ≤6W |
| Working Temperature | -20℃～50℃ |
| Storage Temperature | -30°C~65°C |
| Unit Size | 300L×245H×45.3D mm/ 300L×245H×90D mm (folding) / 300L×245H×310D mm (stretching) |
| Unit Weight | 1840g |
Operating Systems Support
| Windows 8 (32 & 64 bit) |
| Windows 7 (32 & 64 bit) |
| Windows Vista (32 & 64 bit) |
| Windows XP (32bit) |
| Mac Snow Leopard 10.6 Leopart 10.5 (Intel CPU) |
| Mac 10.5.3 Leopart (Power PC) |
| Linux |
| Windows 8.1 (32 & 64 bit) (without touch screen) |
| Manericks 10.9 Mountain Lion 10.8 (without touch screen) |
| Mac Lion 10.7 10.6Tiger 10.4 (without touch screen) |
-
Extension Display
News Reader
Digital Picture Frame
Game Player

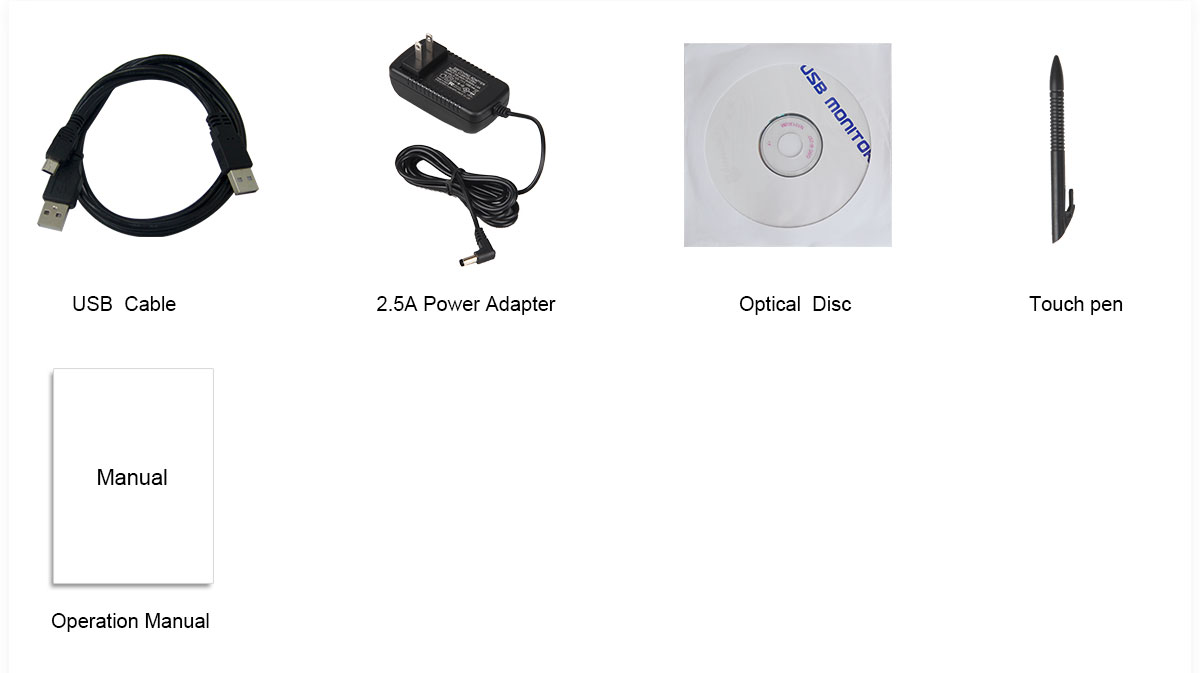

Standard Accessories:
1× USB Cable
1× Power Adapter
1× Optical Disc
1× Touch Pen
1× Operation Manual
1× USB Cable
1× Power Adapter
1× Optical Disc
1× Touch Pen
1× Operation Manual
