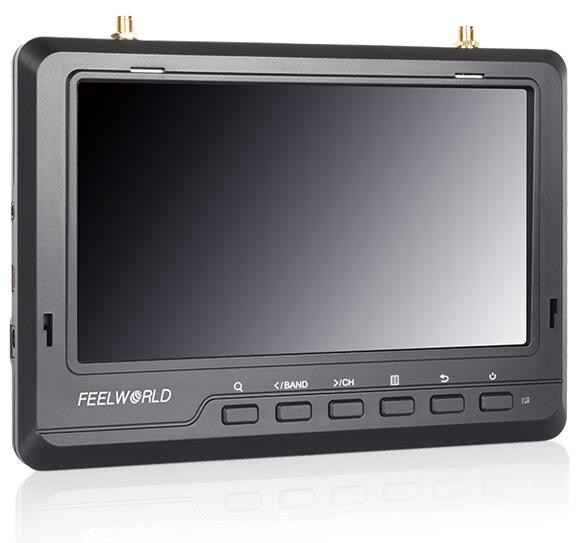

7" 1024x600 IPS Screen ultra-thin FPV Monitor Built-in Battery Dual 5.8G 32CH Diversity Receiver FPV720
This FPV monitor is the most cost-effective 5.8G 32CH Diversity Receiver 7”IPS Screen with a super bright LCD 600cd/m² and built in rechargeable battery. The input signals is AV, RF. The OSD with battery status and channel information. FPV720 is excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 600cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV ground station compact and easy to use. Perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
-

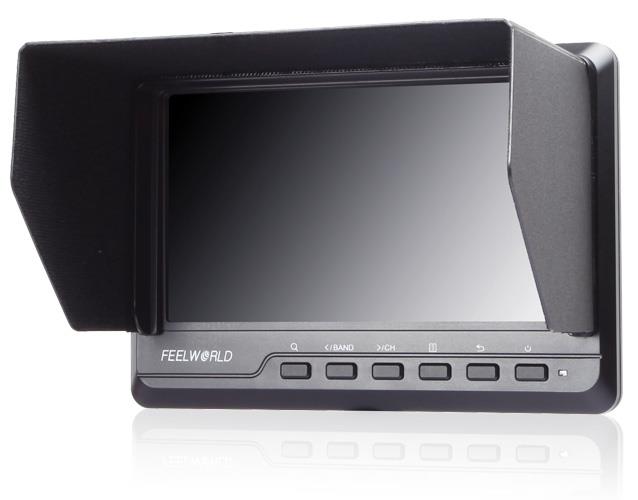

Function Button for Easy Operation

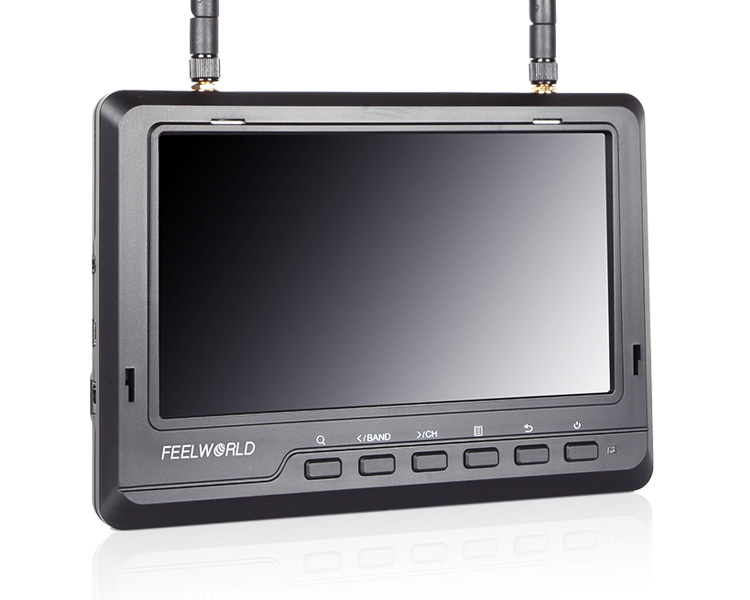

Ultra-thin Design

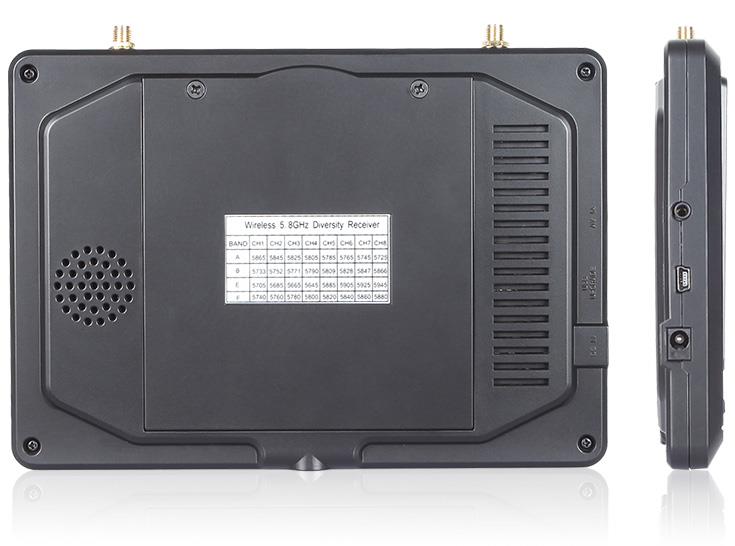

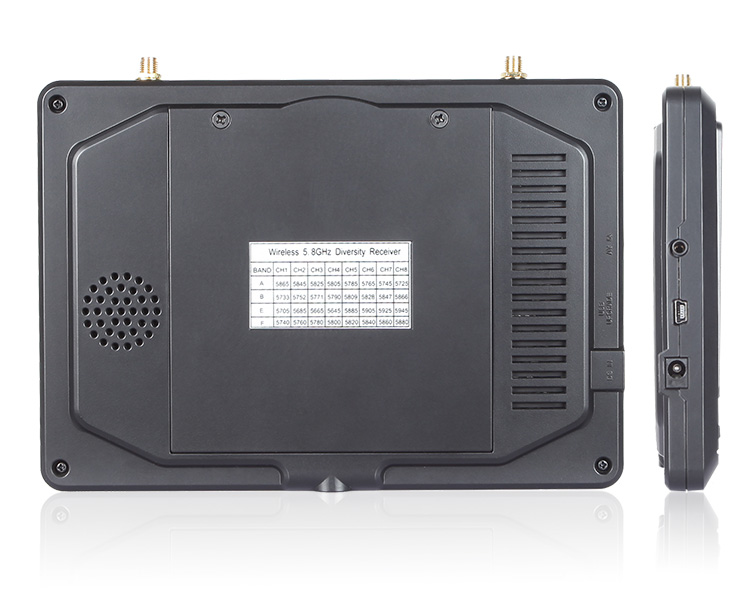

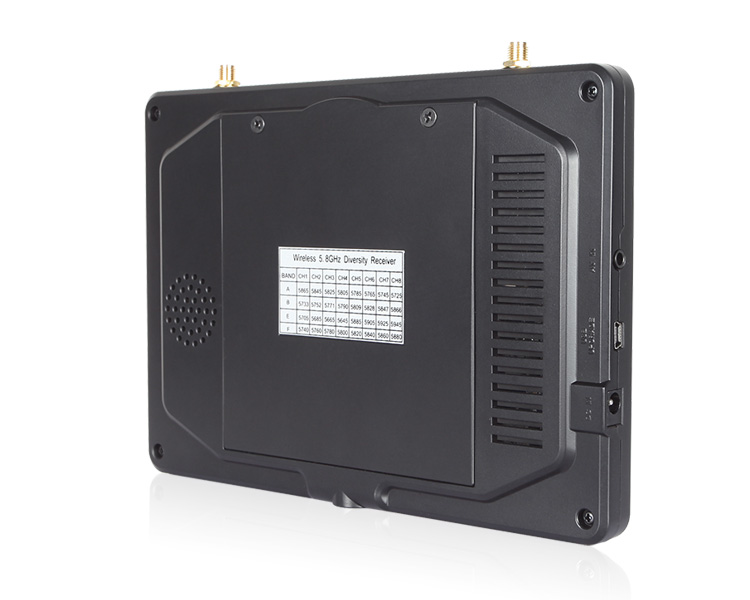

AV input, USB for upgrade, built-in battery.
AV input, USB for upgrade, built-in battery.
-
Built-in Battery
2200mA Last for about 2 hours.
Special design for Outdoor Operation.
-

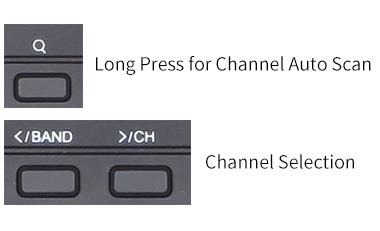

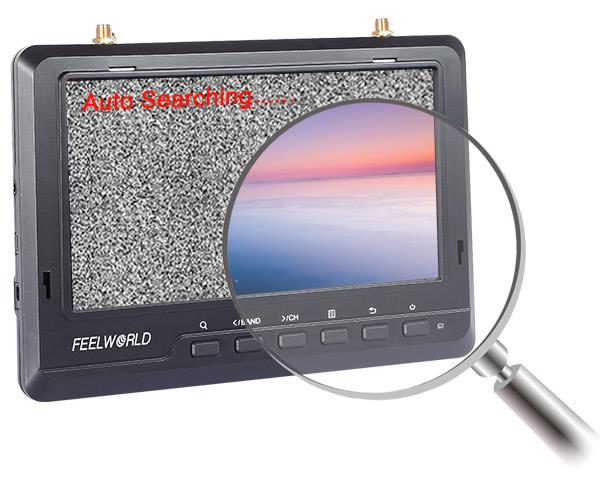

Channel Auto Scan
It supports 32-channels totally, Long press "Q" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
-
5.8GHz Wireless AV Receiver
· Built-in AV receiver support PAL / NTSC
· Simulation of composite video AV inputs, aerial camera connection
· 5.8Ghz frequency 4 Bands and total 32 channels
· Snow screen, no more "blue" screen
Wireless Receiver 32 Channel (Mhz)
Optional RaceBand
-

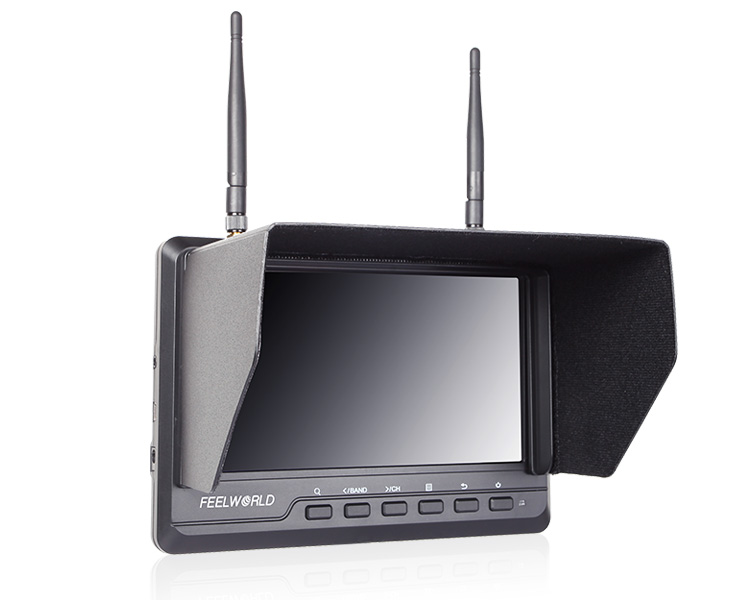

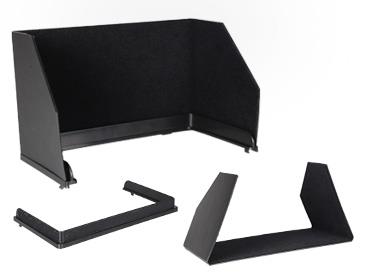

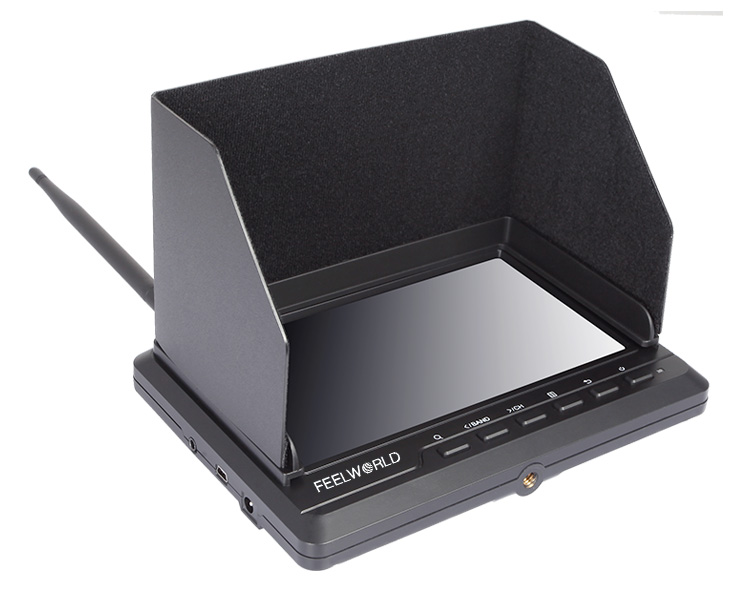

Collapsable Sunshade
New generation super deep sunhood allows you get ideal view effect in almost all the environment.

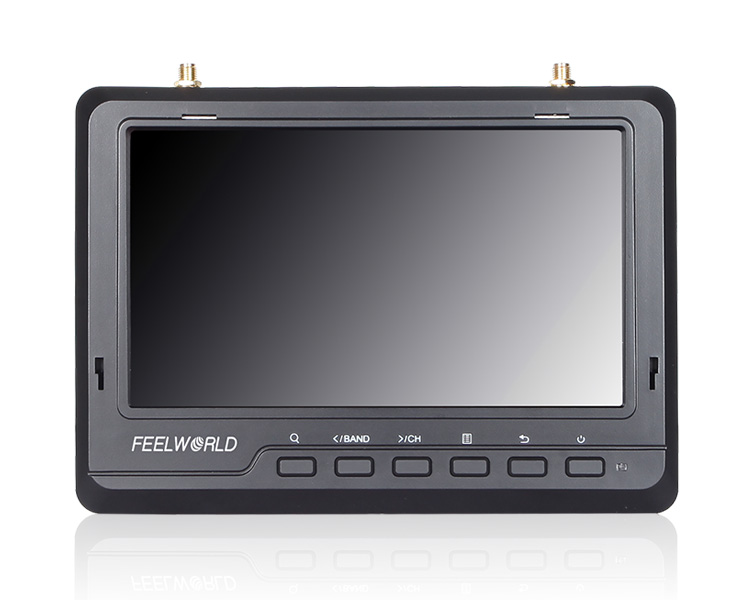

1. IPS Panel High resolution 1024x600, Brightness 600cd/m²
2. Built-in integrated lipo battery
3. Channel Auto searching, selection via button
4. High sensitivity diversity receivers for the best possible reception, Built in Dual receiver Automatically for best reception automatic switching.
5. FPV aerial dedicated input port, High Definition.
6. High brightness,contrast ratio sunshade cover, can see clearly under sunlight.
7. No Blue Screen under weak signal
8. Multiple color format support, manually enter the menu to select the appropriate standard, stronger adaptability
9. Analog composite video AV input, connect FPV aerial camera
10. 16:9 screen radio, switch 16:9/4:3 display mode freely
11. Multiple installation ways, convenient for different angles to view
2. Built-in integrated lipo battery
3. Channel Auto searching, selection via button
4. High sensitivity diversity receivers for the best possible reception, Built in Dual receiver Automatically for best reception automatic switching.
5. FPV aerial dedicated input port, High Definition.
6. High brightness,contrast ratio sunshade cover, can see clearly under sunlight.
7. No Blue Screen under weak signal
8. Multiple color format support, manually enter the menu to select the appropriate standard, stronger adaptability
9. Analog composite video AV input, connect FPV aerial camera
10. 16:9 screen radio, switch 16:9/4:3 display mode freely
11. Multiple installation ways, convenient for different angles to view
Display Spec.
| Model | FPV720 |
| Screen Size | 7" IPS |
| Resolution | 1024×600 pixels |
| Pixe Pitch | 0.1506(H)×0.1432(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 600cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Input
| 1 X AV | AV |
| 1 X RF | RF |
Audio
| Audio Out | Speaker |
Video Support Format
| PAL-4.43; NTSC-3.58 |
General
| Built-in battery | 7.4V/ 2200mA (2 hours) |
| Input Voltage | DC9～18V |
| Power Consumption | ≤13W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread mounting socket |
| Unit Size | 191L×134.7H ×23D (mm) |
| Unit Weight | 380g/ 470g (with battery) |
Professional FPV Monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission

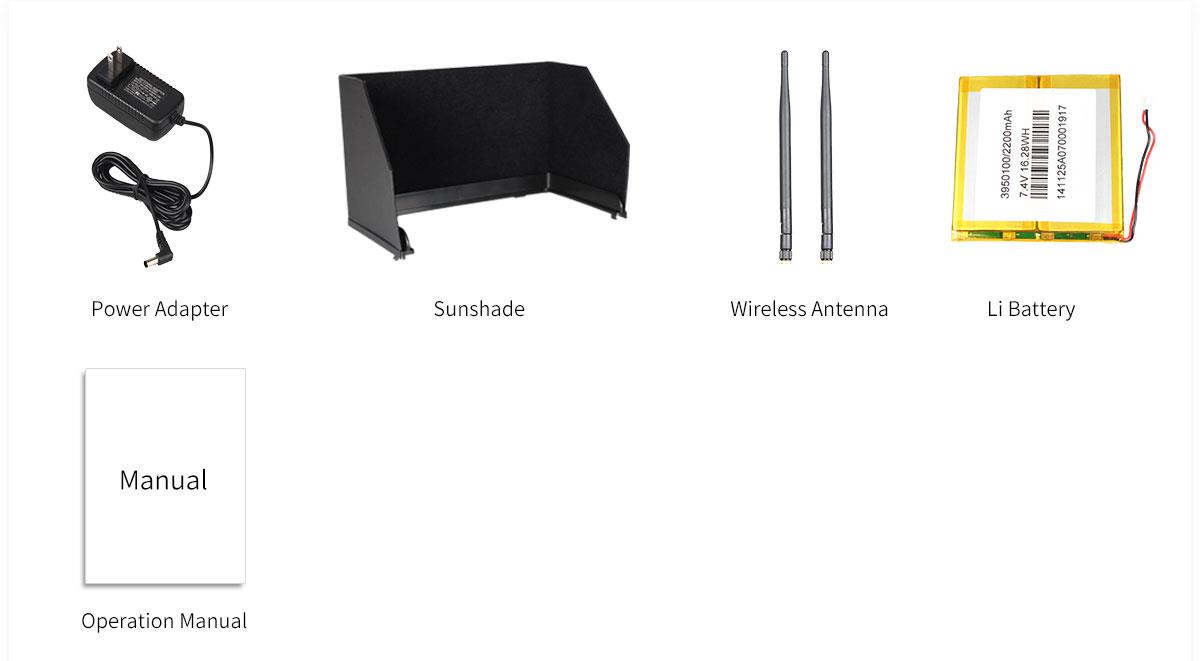

Standard Accessories:
1× Power Adapter
1× Sunshade
1× Li Battery
2× Wireless Antenna
1× Operation Manual
1× Power Adapter
1× Sunshade
1× Li Battery
2× Wireless Antenna
1× Operation Manual
