7" 800x480 TFT LCD Touch Screen USB Monitor without VGA DC cable DP701T
-
Introduction

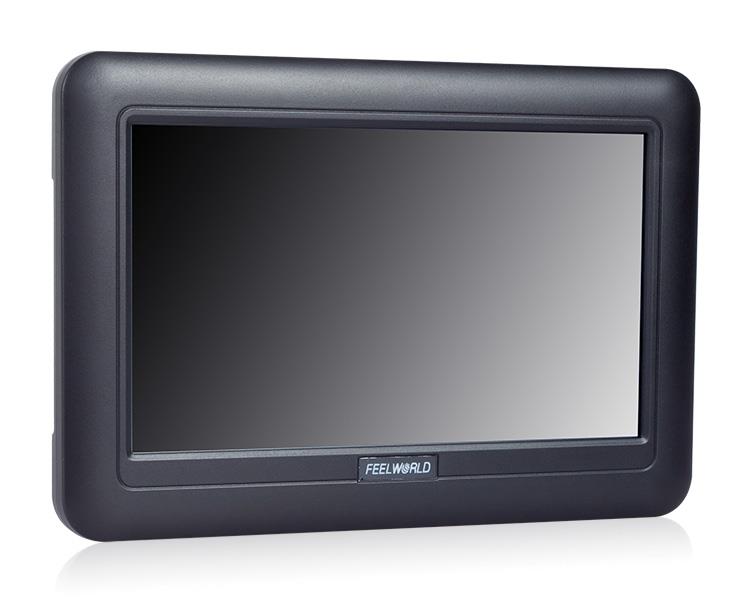

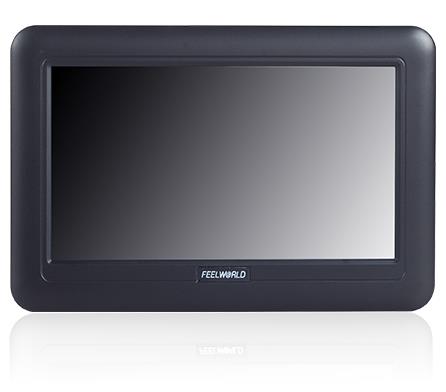

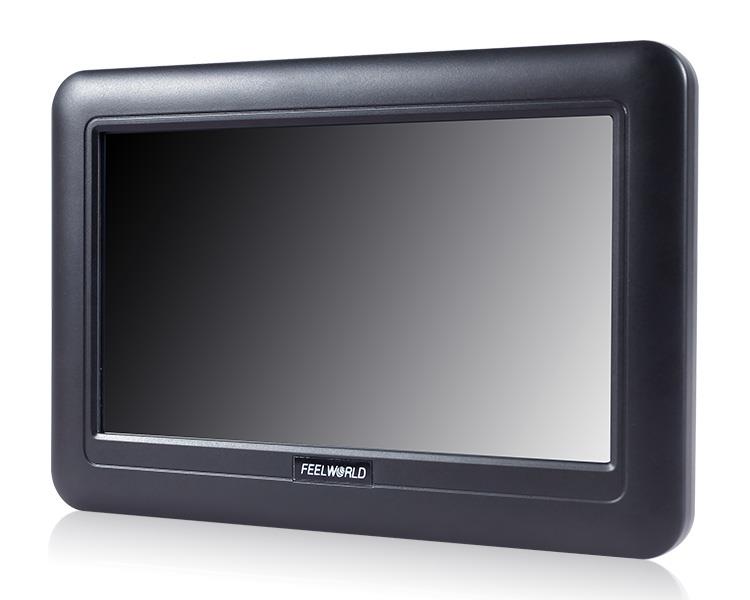

DP701T is a 7 inch TFT LCD USB Powered monitor.
DP701T use a high quality new LCD Panel,with 800x480 resolution, 250cd/m² high brightness and L/R=140°, U/D=120° wide angle, which can display clear images.
It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.

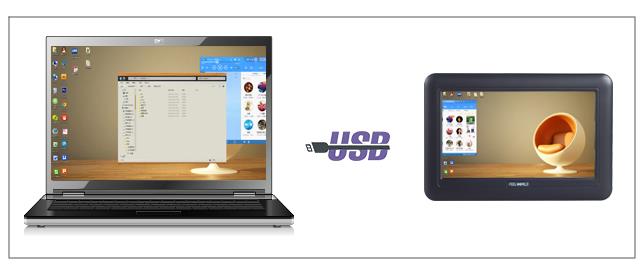

One USB Cable does it all! Not need Power Adapter, not need VGA etc.
Displaylink Chip, support Windows OS, MAC OS.
Displaylink Chip, support Windows OS, MAC OS.
-

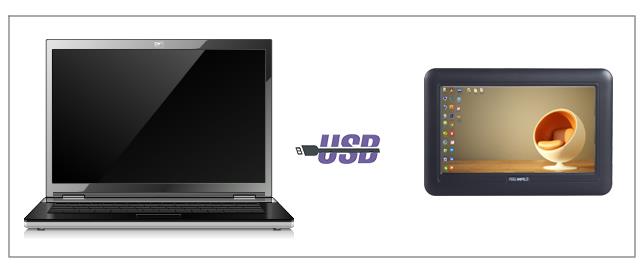

Duplicate
Copy the primary monitor's picture, when requiring more picture, it can easily handle.
-

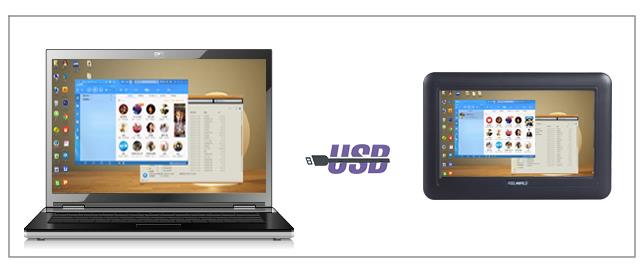

Extend
It can expand the primary monitor's picture, enlarge display area, conveniently cope with multitasking.
-
Primary Monitor
Can set the USB monitor as the primary monitor, deal with all special needs.
* The original primary monitor will be closed.
-

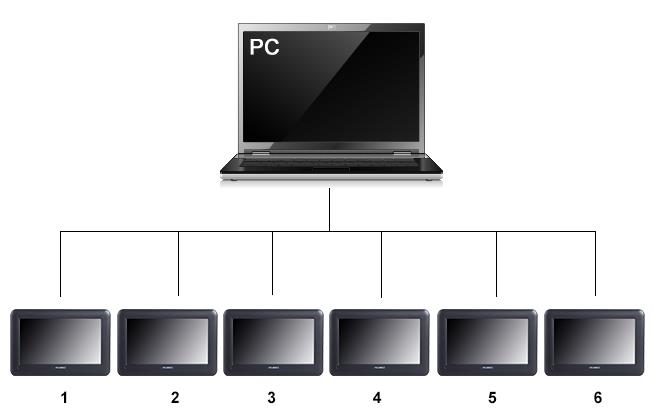

One PC Can Connect 6pcs USB Powered Monitors At The Same Time
Can be used on meeting or school etc.

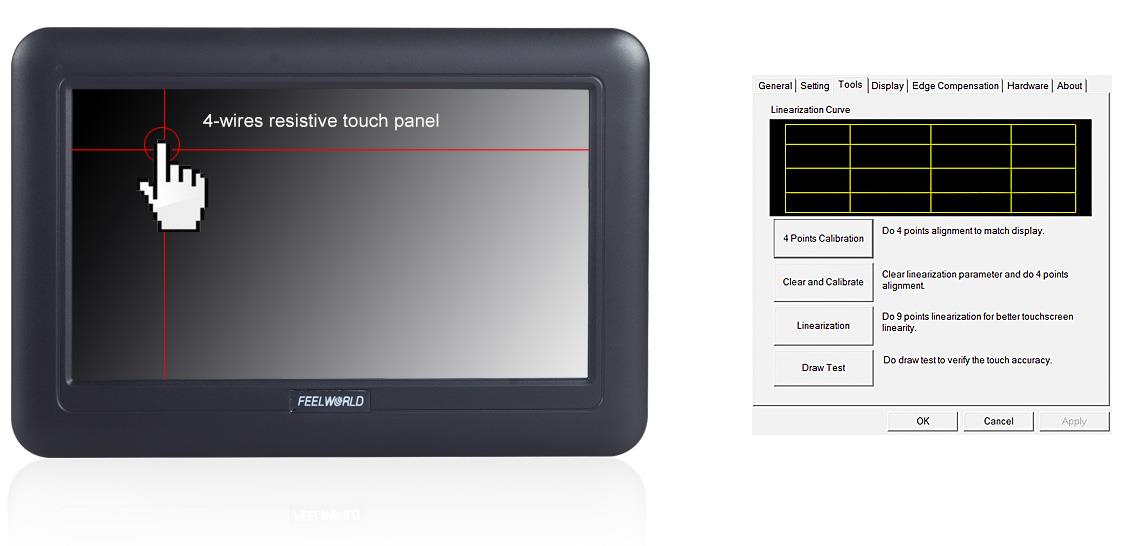

Touch Function
> Using 4-wires resistive touch panel,support Serials OS like Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6.
> With standard TouchKit Driver CD, you can install touch driver, changing settings and calibrate the touch very easily.
> USB Touch interface as standard.
> Using 4-wires resistive touch panel,support Serials OS like Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6.
> With standard TouchKit Driver CD, you can install touch driver, changing settings and calibrate the touch very easily.
> USB Touch interface as standard.

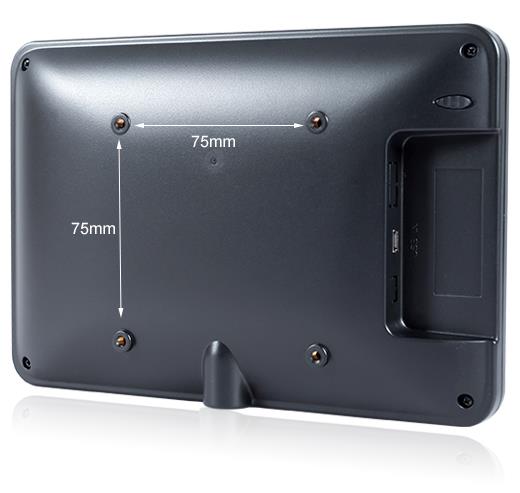

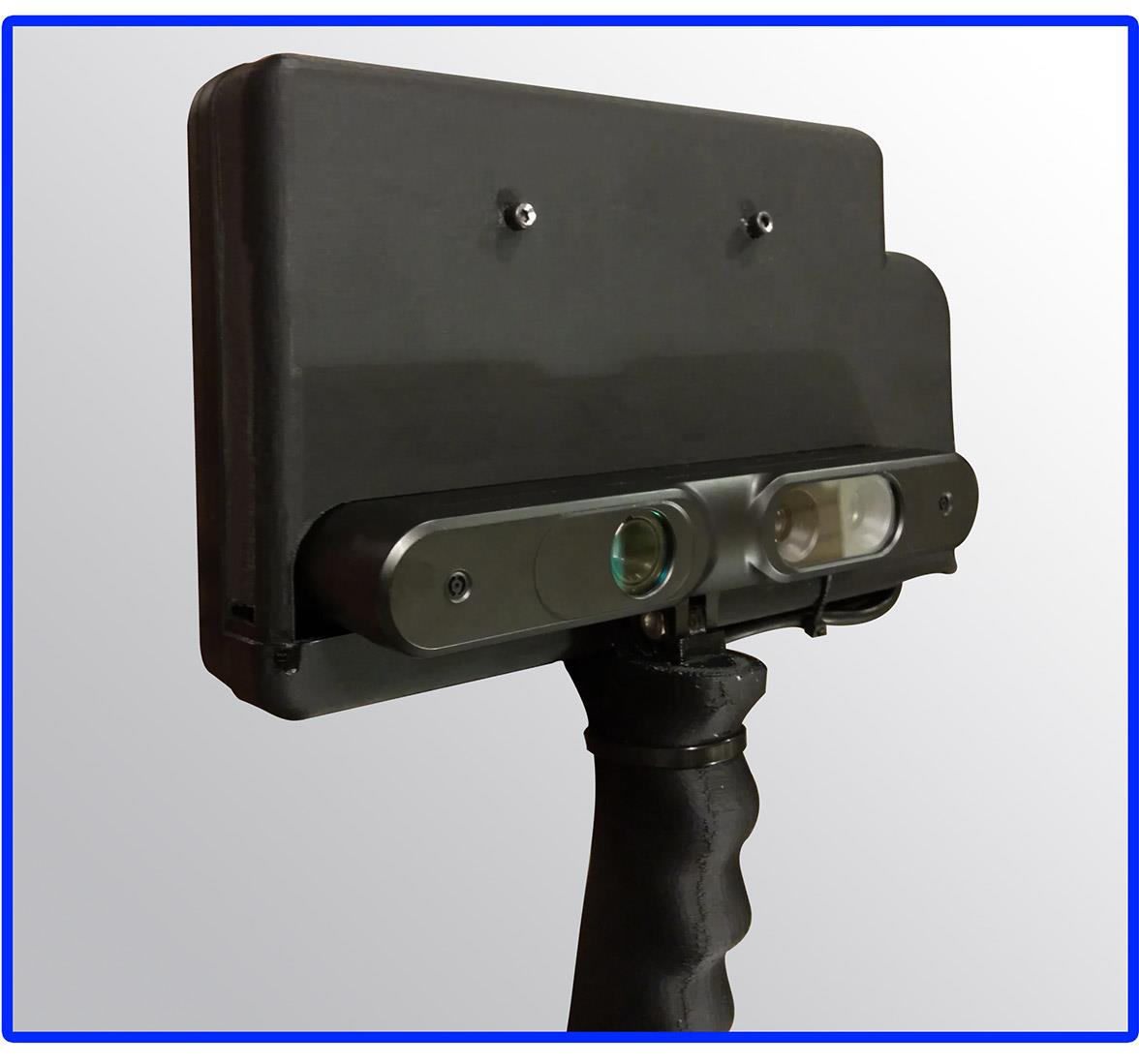

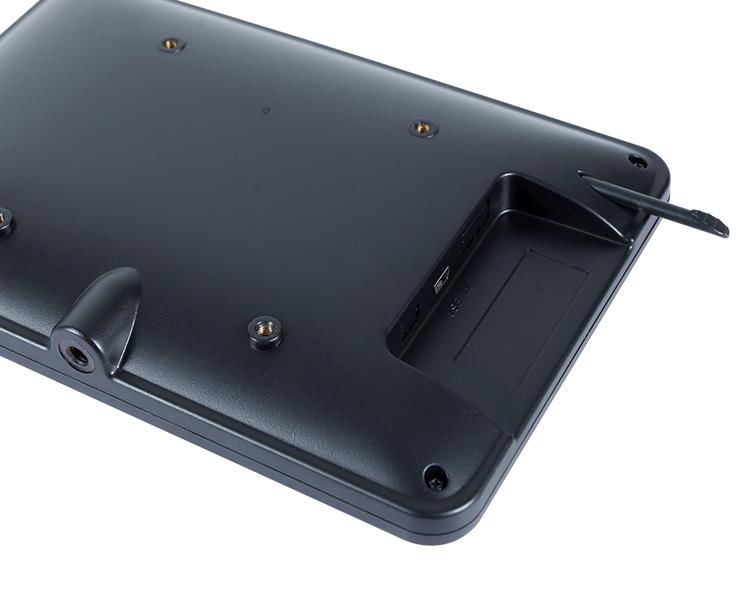

VESA 75mm Mount Holes
There has VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor. So it can be used with wall mount arm which support VESA 75mm.
There has VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor. So it can be used with wall mount arm which support VESA 75mm.
-

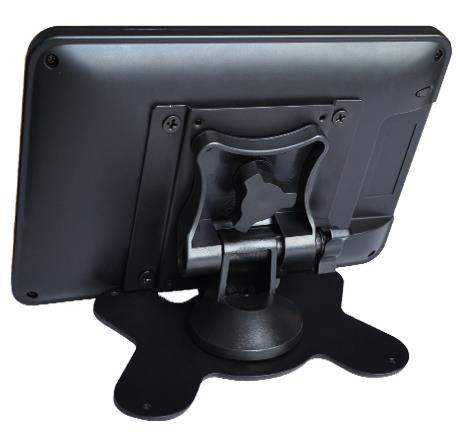

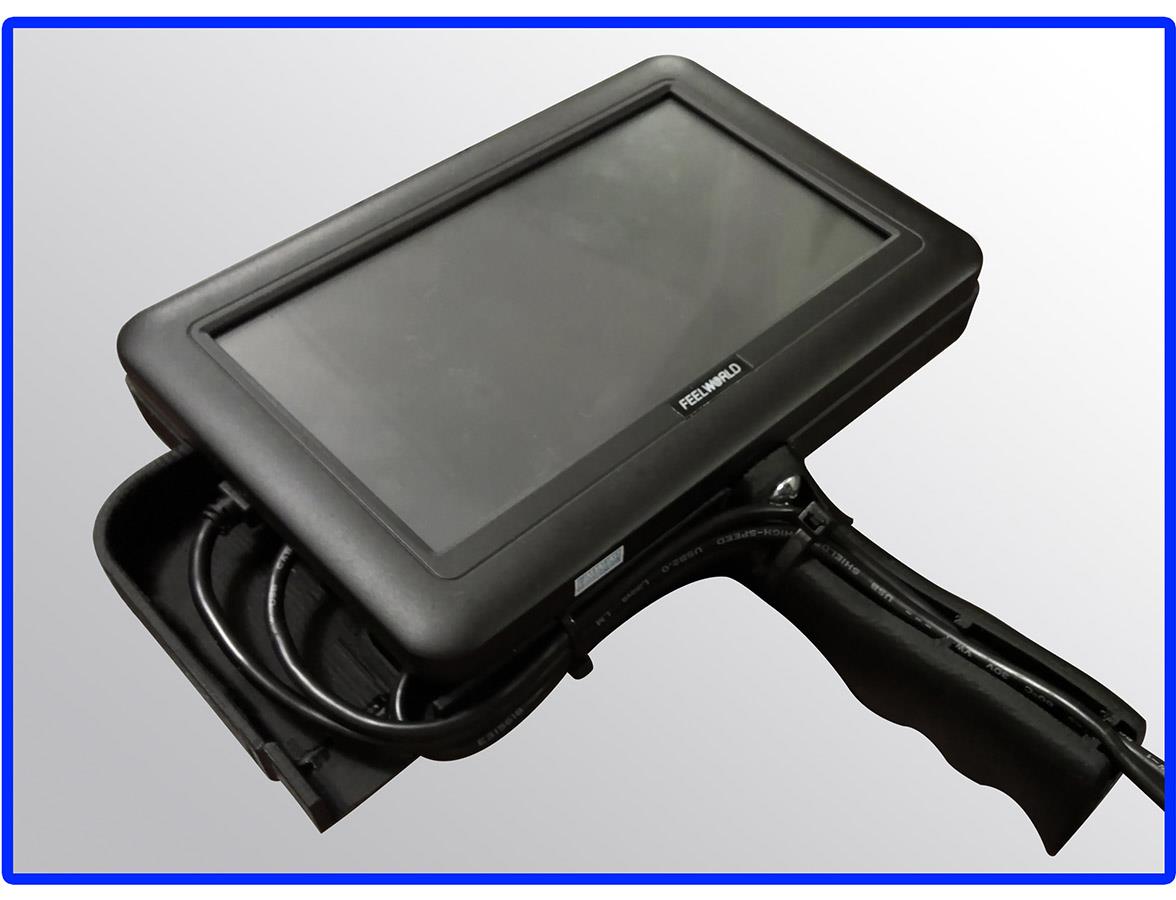

Standard Bracket
Portable Bracket. It is convenient to adjust the monitor as 360-degree horizontal and 90 degree vertical.
Display Spec.
| Model | DP701T |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB |
| Screen Size | 7" |
| Resolution | 800×480 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Viewing Angle | L/R=140°, U/D=120° |
Input
| 1 X USB | USB |
General
| Input Voltage | USB (DC5V) |
| Power Consumption | 2.5~3.0W |
| Working Temperature | -20℃～60℃ |
| Storage Temperature | -30°C~70°C |
| Unit Size | 190L×128H×23.5D (mm) |
| Unit Weight | 397g |
Operating Systems Support
| Windows 7 (32 & 64 bit) |
| Windows Vista (32 & 64 bit) |
| Windows XP (32bit) |
| Mac 10.5 Leopart |
| Linux |
| Win 10 |
| Windows 8.1 (32 & 64 bit) (without touch screen) |
| Manericks 10.9 Mountain Lion 10.8 (without touch screen) |
| Mac Lion 10.7 10.6Tiger 10.4 (without touch screen) |
-
Extension Display

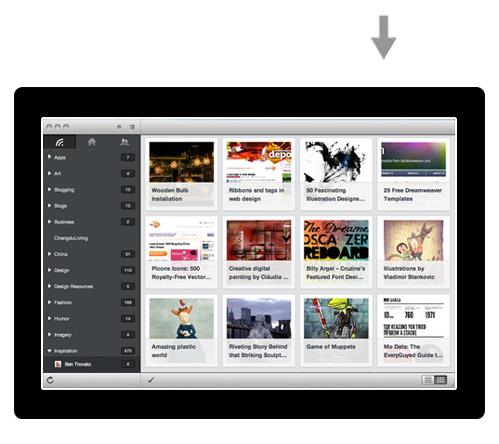

News Reader
Digital Picture Frame

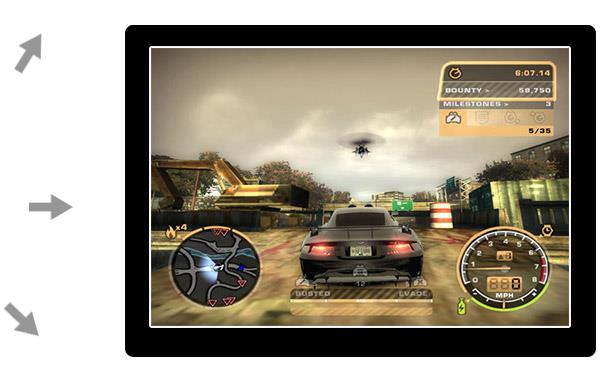

Game Player

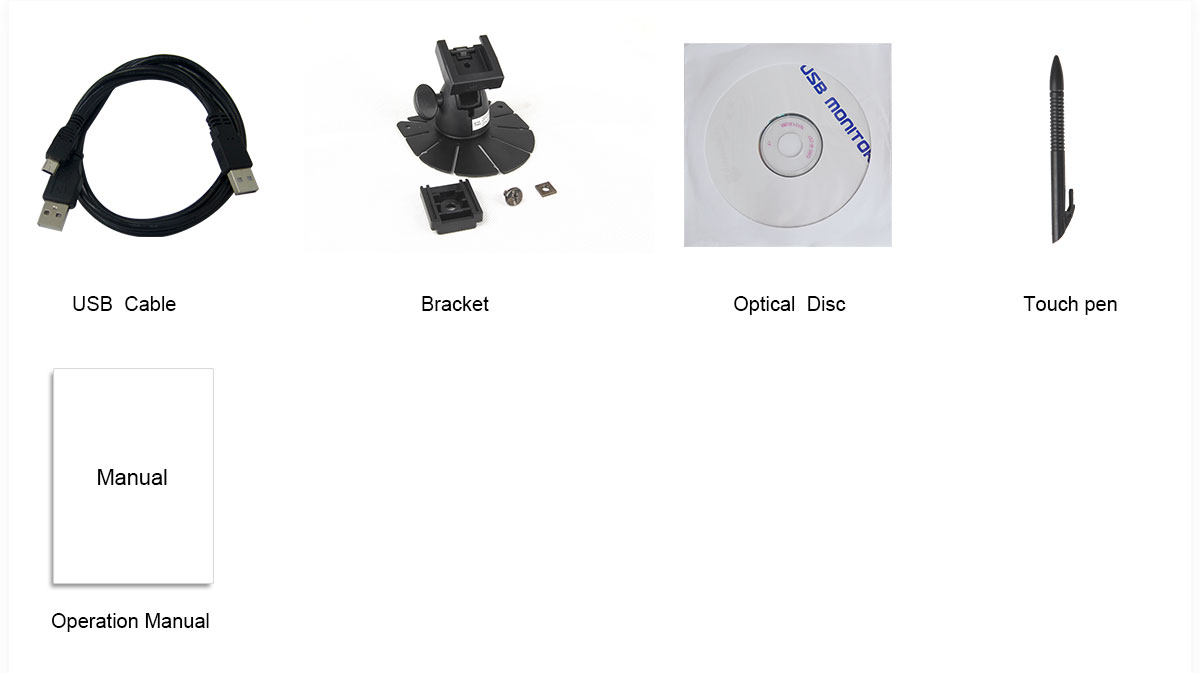

Standard Accessories:
1× USB Cable
1× Bracket
1× Optical Disc
1× Touch Pen
1× Operation Manual
1× USB Cable
1× Bracket
1× Optical Disc
1× Touch Pen
1× Operation Manual
