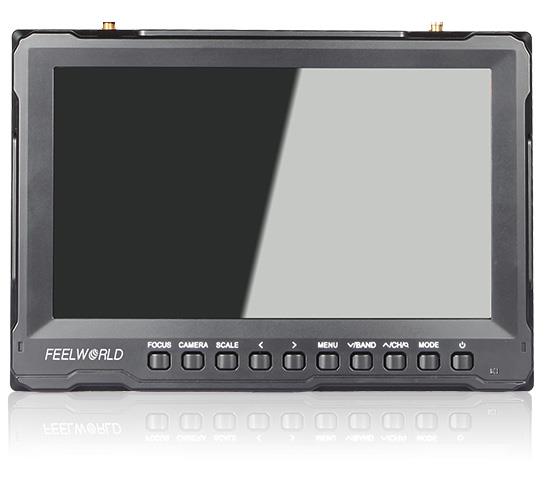

8" Super-slim HD Screen FPV Monitor with Built-in Battery Dual 5.8G 32CH Diversity Receiver FPV821
-

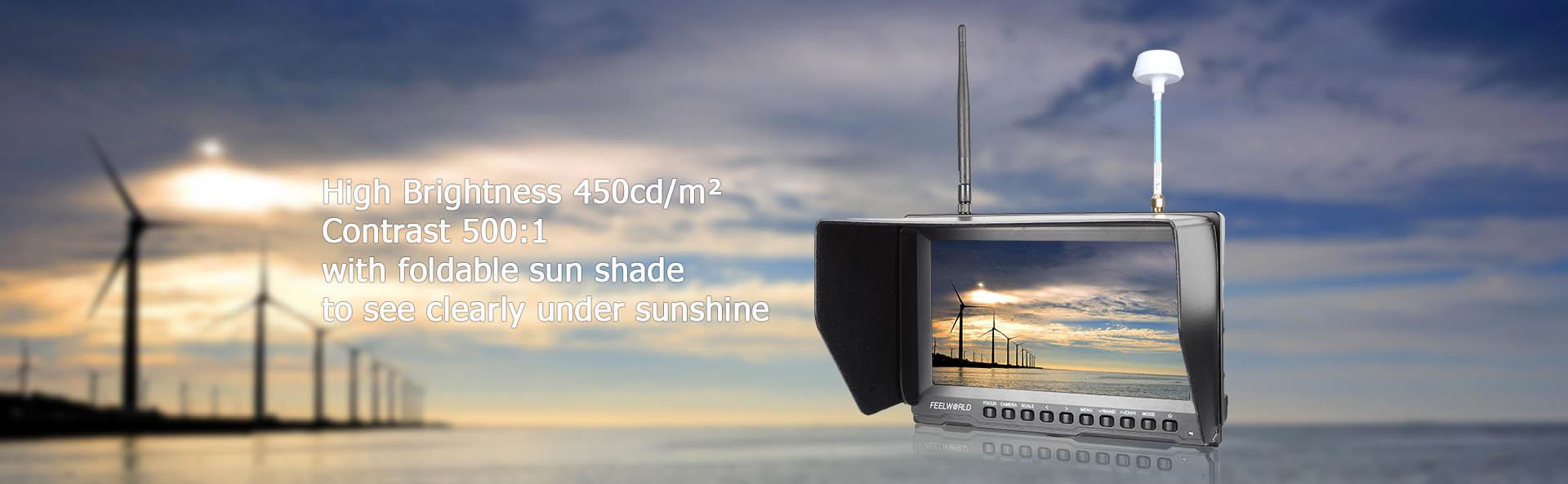

Ultra-thin design only 22mm Thickness, 8" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, Channel Auto searching. Excellent choice for your FPV monitor. The 450cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The built in integrated rechargeagble battery keeps your FPV ground station compact and easy to use. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
-
FEELWORLD the new generation of powerfull FPV Monitor can meet the demand of an unprecedented visual experience.
Model No: FPV821
-

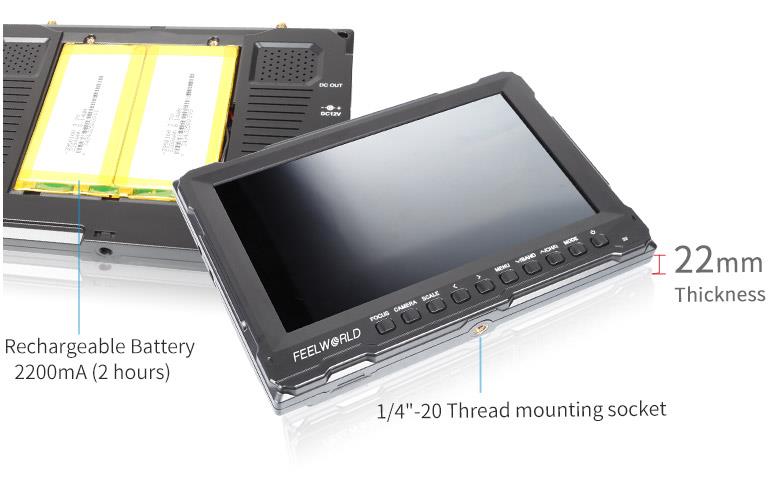

Ultra-thin Design
Built-in Battery
-

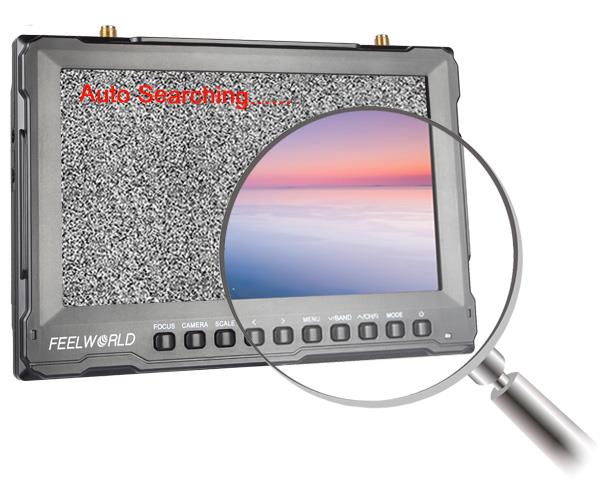

Channel Auto Scan

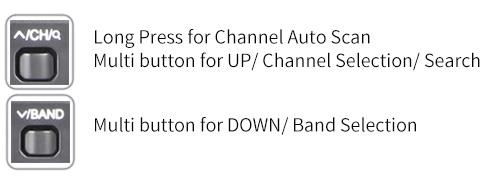

It supports 32-channels totally, Long press "Q" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
-
5.8GHz Wireless AV Receiver
· Built-in AV receiver support PAL / NTSC
· Simulation of composite video AV inputs, aerial camera connection
· 5.8Ghz frequency 4 Bands and total 32 channels
· Snow screen, no more "blue" screen
Wireless Receiver 32 Channel (Mhz)
Optional RaceBand

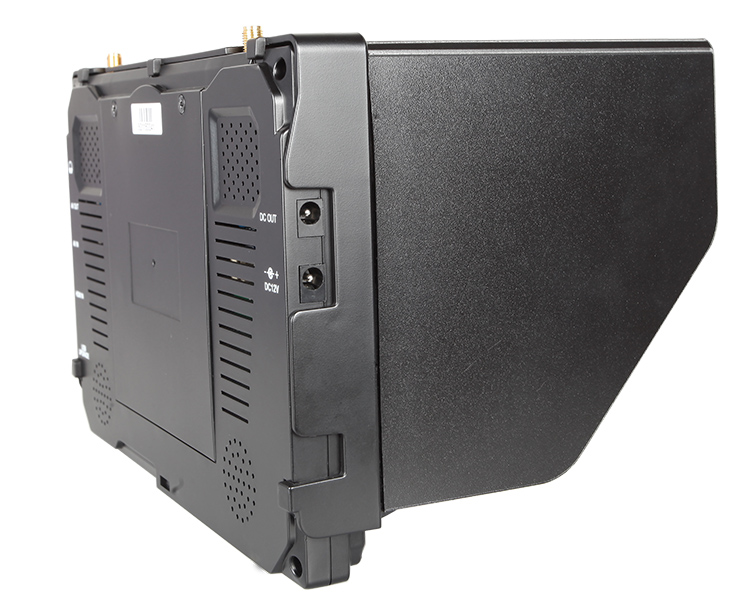

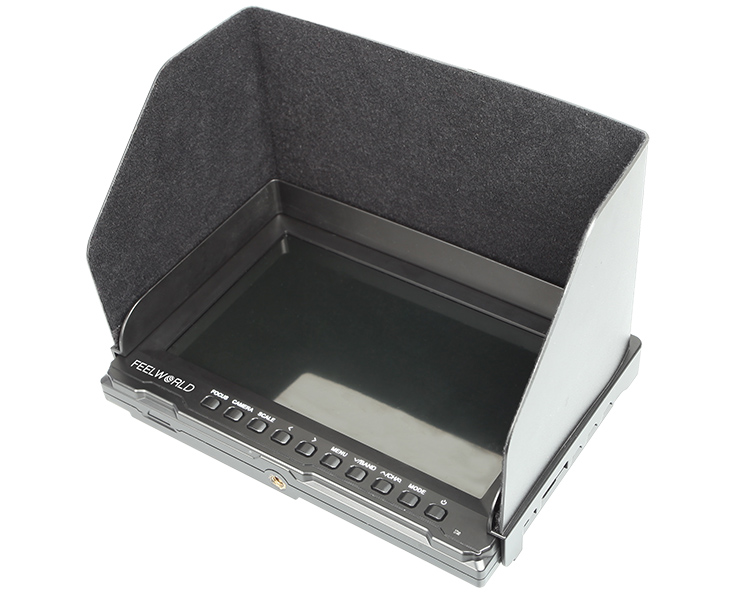

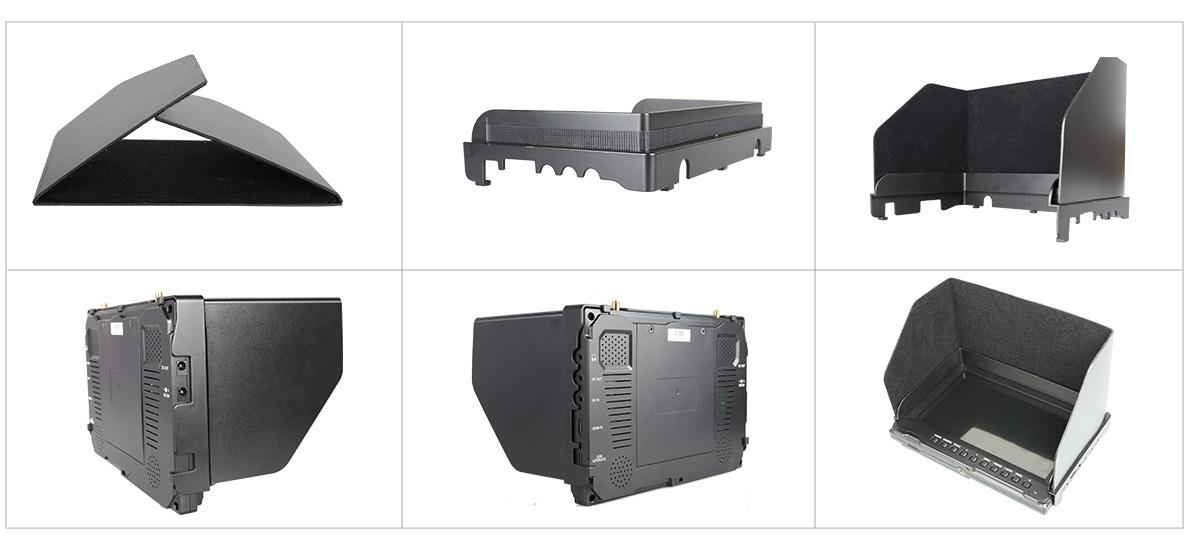

Collapsable Sunshade
is included for easier viewing in bright environments.
is included for easier viewing in bright environments.
Advanced Features:
1. High resolution 800x480, Bright 450cd/m²;
2. Built-in integrated lipo battery
3. 5.8GHz,32 Channels Receiver
4. Video outputs and DC output to connect and power other equipment
5. High Sensitivity: -90dBM
6. Channel auto searching, selection via button
7. High sensitivity diversity receivers for the best possible reception, built in Dual receiver Automatically for best reception automatic switching.
8. FPV aerial dedicated input port, high Definition.
9. High brightness, contrast ratio sunshade cover, can see clearly under sunlight
10. No Blue Screen under weak signal
11. Multiple color format support,manually enter the menu to select the appropriate standard, stronger adaptability
12. Analog composite video AV input, connect FPV aerial camera
13. 16:9 screen radio, switch 16:9/4:3 display mode freely

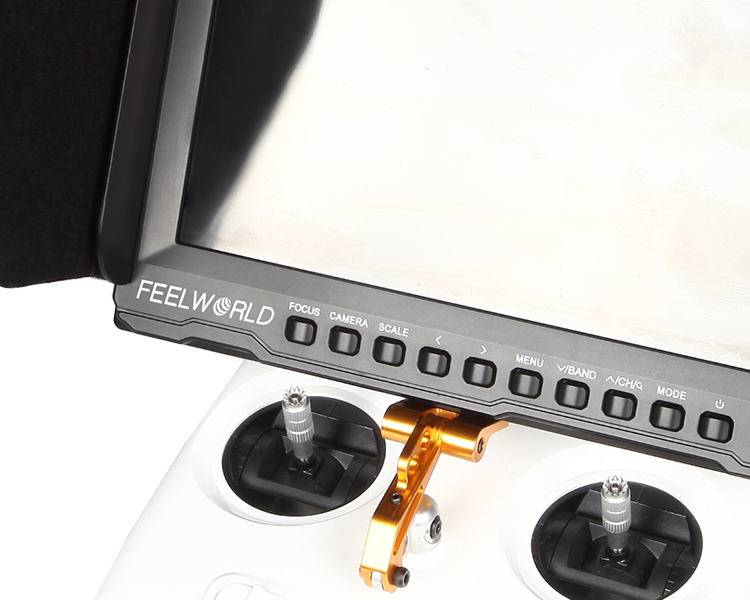

14. Connect with camera, as a monitor or aerial monitor
15. Multiple installation ways,convenient for different angles to view
1. High resolution 800x480, Bright 450cd/m²;
2. Built-in integrated lipo battery
3. 5.8GHz,32 Channels Receiver
4. Video outputs and DC output to connect and power other equipment
5. High Sensitivity: -90dBM
6. Channel auto searching, selection via button
7. High sensitivity diversity receivers for the best possible reception, built in Dual receiver Automatically for best reception automatic switching.
8. FPV aerial dedicated input port, high Definition.
9. High brightness, contrast ratio sunshade cover, can see clearly under sunlight
10. No Blue Screen under weak signal
11. Multiple color format support,manually enter the menu to select the appropriate standard, stronger adaptability
12. Analog composite video AV input, connect FPV aerial camera
13. 16:9 screen radio, switch 16:9/4:3 display mode freely
14. Connect with camera, as a monitor or aerial monitor
15. Multiple installation ways,convenient for different angles to view
Photography Functions:
1. Peaking Focus Assist
2. Check Field (Red, Green, Blue, Mono)
3. Camera 5D II Mode
4. Screen Marker
5. Centre Marker
6. 4:3&16:9 image adjustable
7. Full Screen Display in mode of Monitoring & Recording
1. Peaking Focus Assist
2. Check Field (Red, Green, Blue, Mono)
3. Camera 5D II Mode
4. Screen Marker
5. Centre Marker
6. 4:3&16:9 image adjustable
7. Full Screen Display in mode of Monitoring & Recording
Display Spec.
| Model | FPV821 |
| Screen Size | 8" |
| Resolution | 800×480 pixels |
| Pixe Pitch | 0.0736(W)×0.2070(H) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |

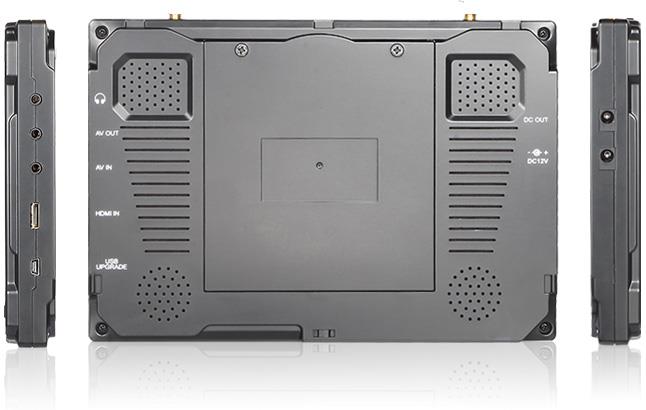

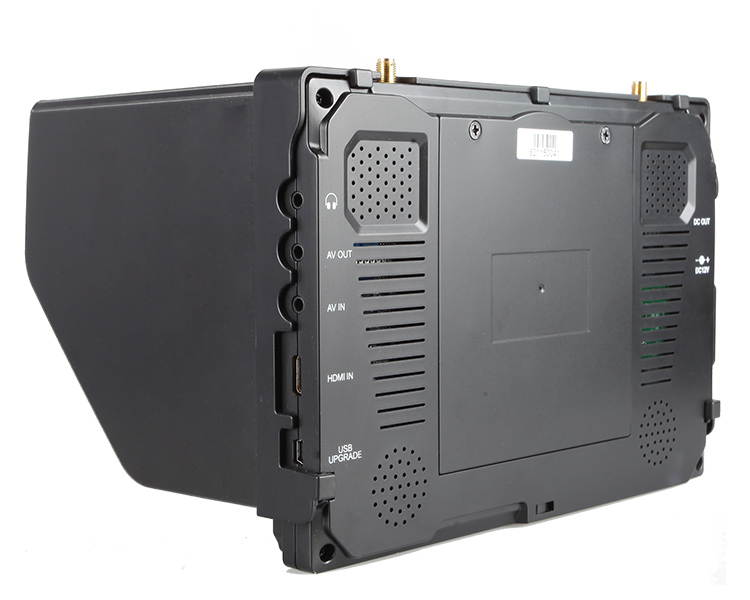

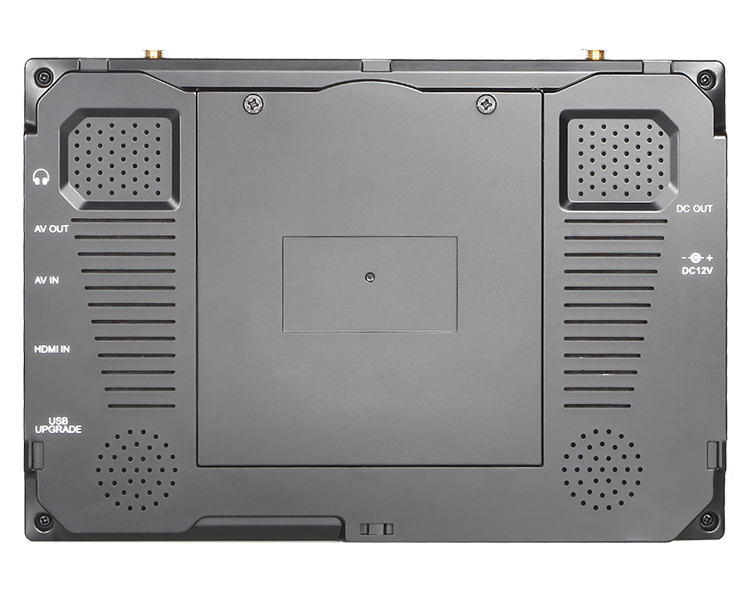

Input
| 1 X HDMI | HDMI |
| 1 X AV | AV |
| 1 X RF | RF |
Output
| 1 X AV | AV |
| 1 X DC | DC |
Audio
| Audio Out | Stereo Headphone, Speaker |
HDMI Support Format
| 480i /480p /576i /576p |
| 720p /1080i /1080p (50/60Hz) |
Video Support Format
| PAL-4.43; NTSC-3.58 |
General
| Built-in battery | 7.4V/ 2200mA (2 hours) |
| Input Voltage | DC9～18V |
| Power Consumption | ≤13W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread mounting socket |
| Unit Size | 212L×144H×22D (mm) |
| Unit Weight | 520g/ 600g (with battery) |
Professional FPV Monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
Standard Accessories:
1× Power Adapter
1× Sunshade
1× HDMI Converter
1× Li Battery
1× AV Cable

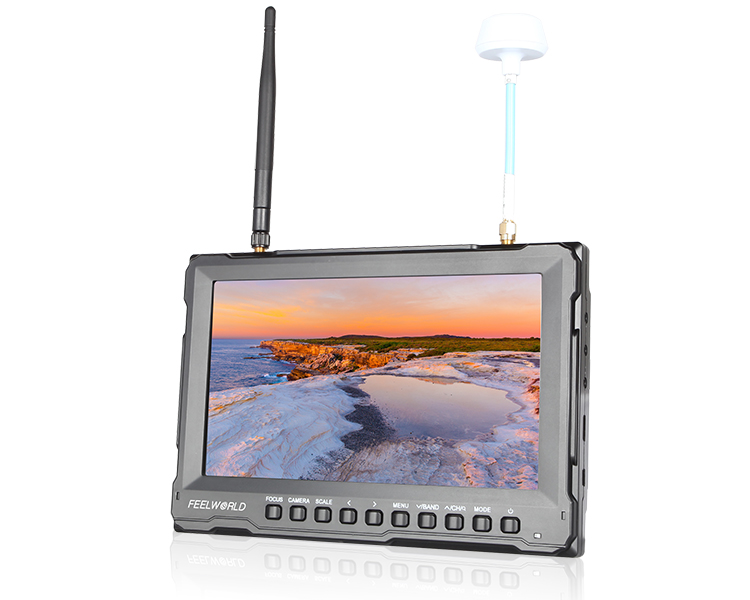

1× Wireless Antenna
1× Mushroom Antenna
1× Operation Manual
1× Power Adapter
1× Sunshade
1× HDMI Converter
1× Li Battery
1× AV Cable
1× Wireless Antenna
1× Mushroom Antenna
1× Operation Manual
