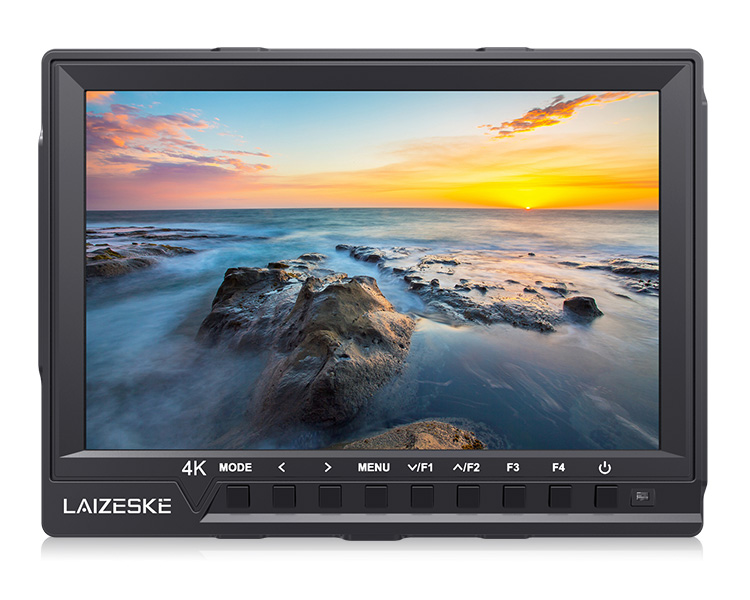

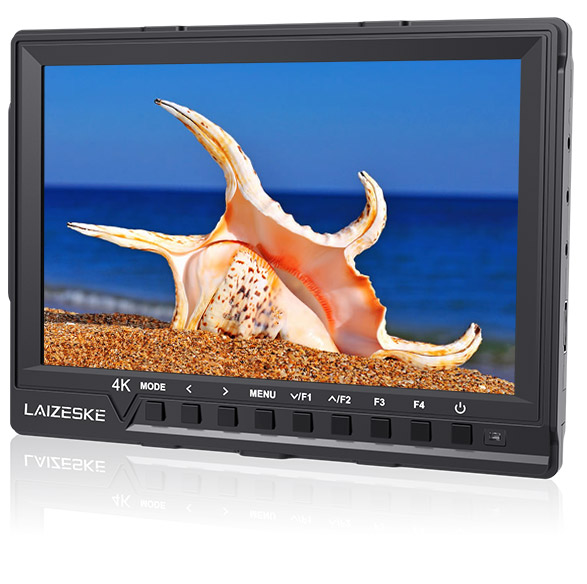

Full HD 1920 x 1200 resolution
Precise Color to fuel your creative flow
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), the pixel density of the DR760 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.
Precise Color to fuel your creative flow
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), the pixel density of the DR760 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.

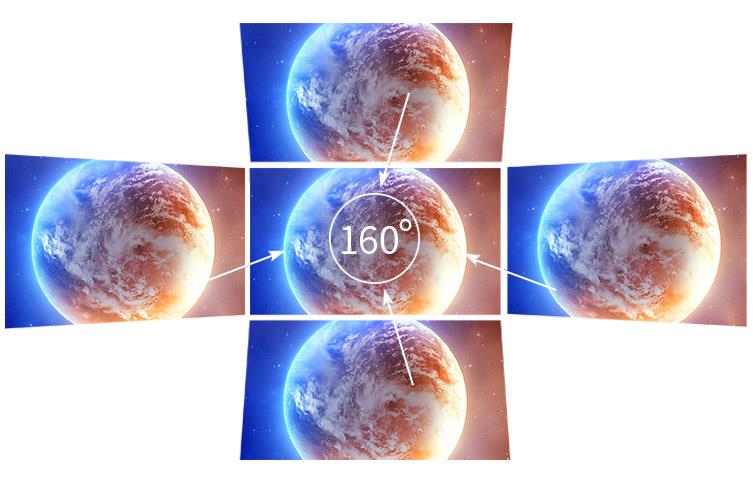

Enjoy consistent images from any perspective
160° Wider View angle, with a 450 nit brightness and 1200:1 contrast ratio, the DR760 provides richer, brighter and more dynamic colors than any contender in its class.
160° Wider View angle, with a 450 nit brightness and 1200:1 contrast ratio, the DR760 provides richer, brighter and more dynamic colors than any contender in its class.

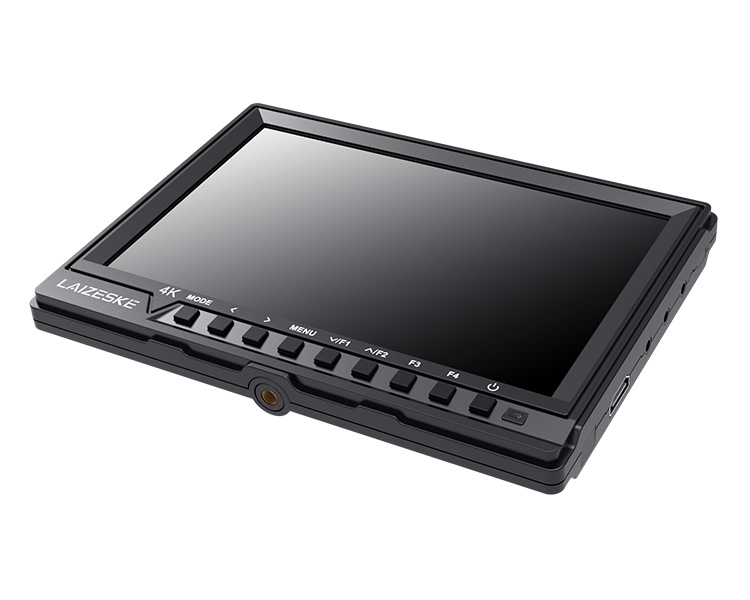

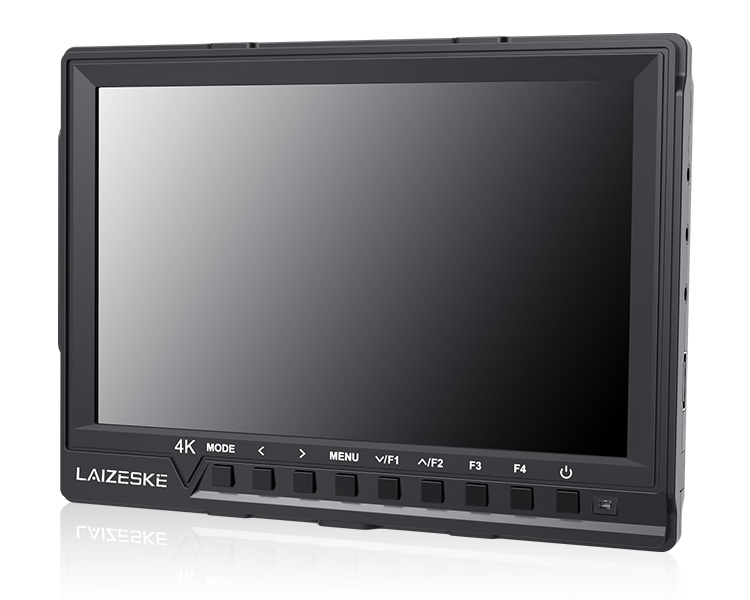

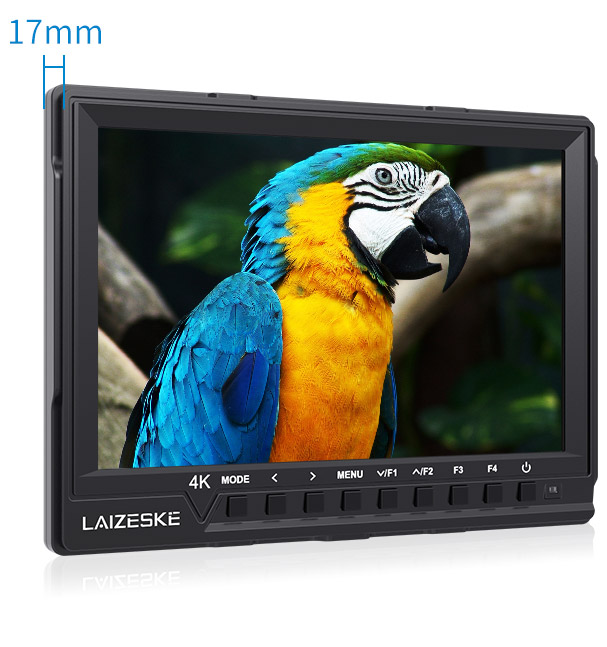

Ultra-thin Lightweight Design
Specially designed to merge portability,and functionality, 17mm thickness 270g the DR760 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Specially designed to merge portability,and functionality, 17mm thickness 270g the DR760 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
-

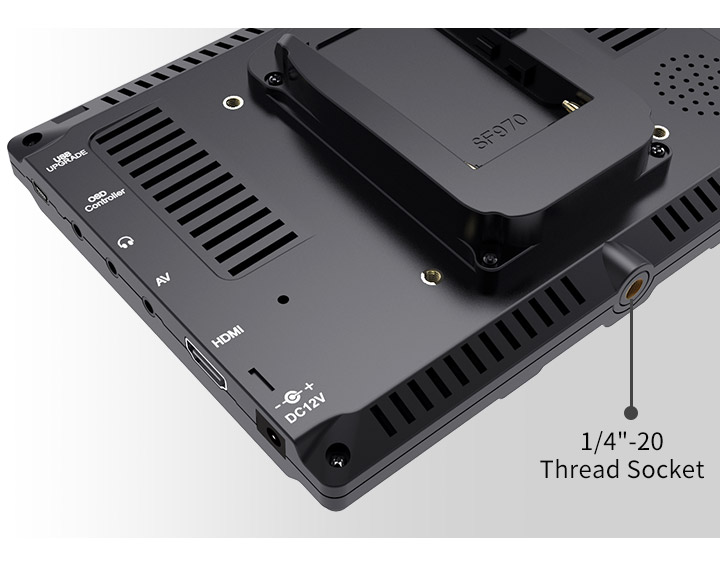

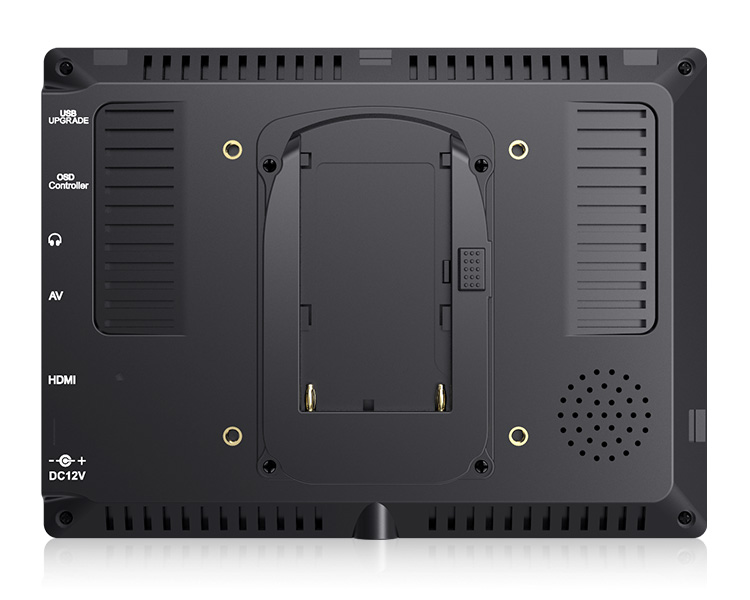

Multiple Interfaces
Input:
HDMI X 1
AV X 1
OSD Controller X 1
USB Upgrade X 1Output:
3.5mm Ear Phone Slot X 1
Built-in Speaker X 1

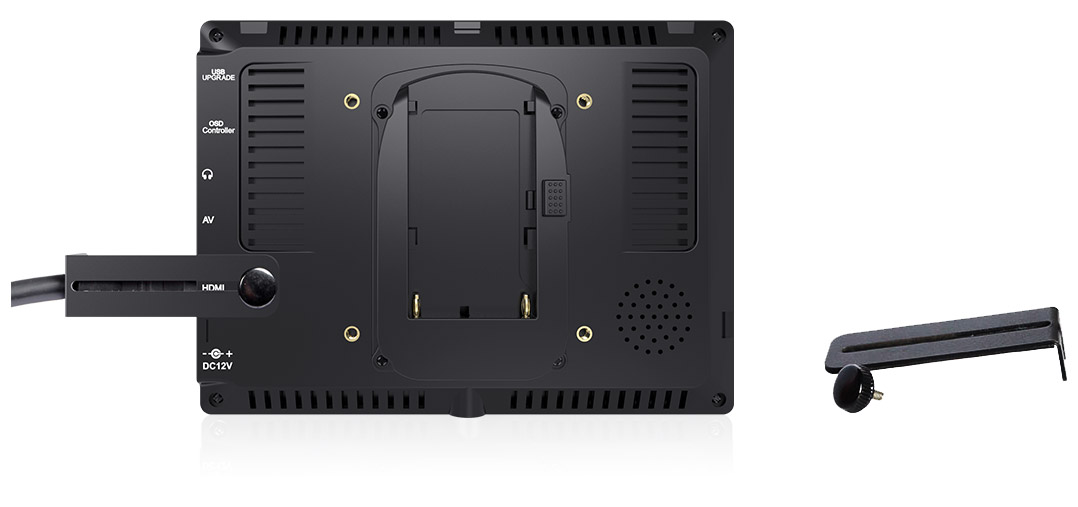

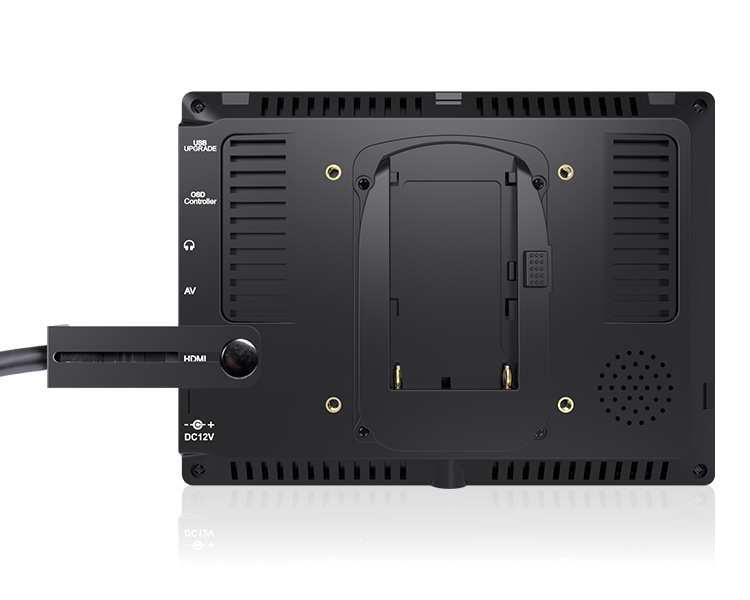

Specially Designed HDMI Lock
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, we specially designed HDMI lock to ensure the safety of signal transmission.
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, we specially designed HDMI lock to ensure the safety of signal transmission.

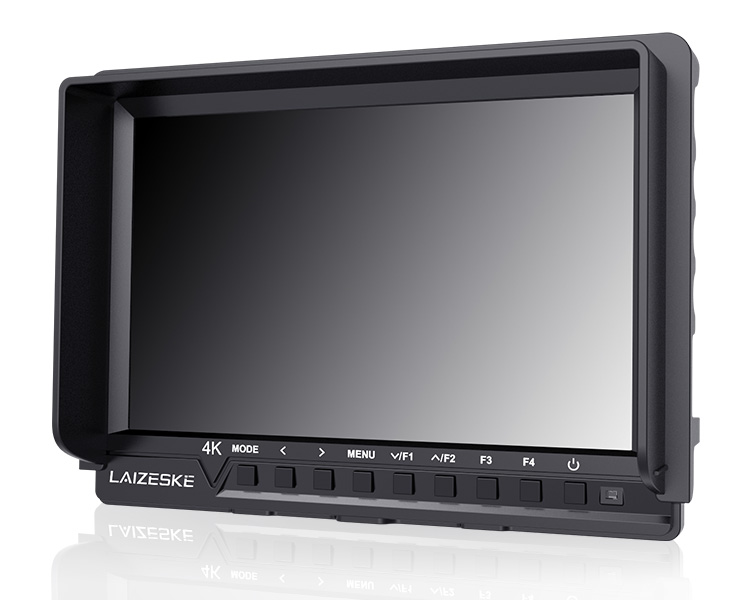

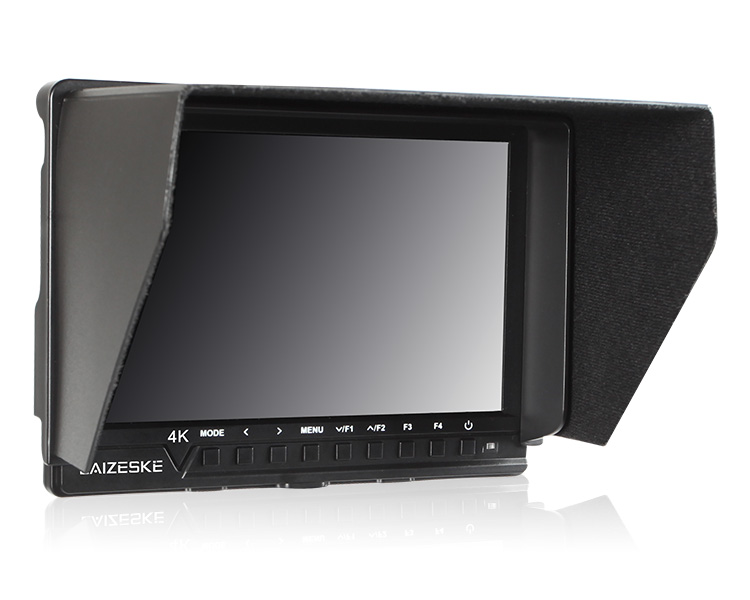

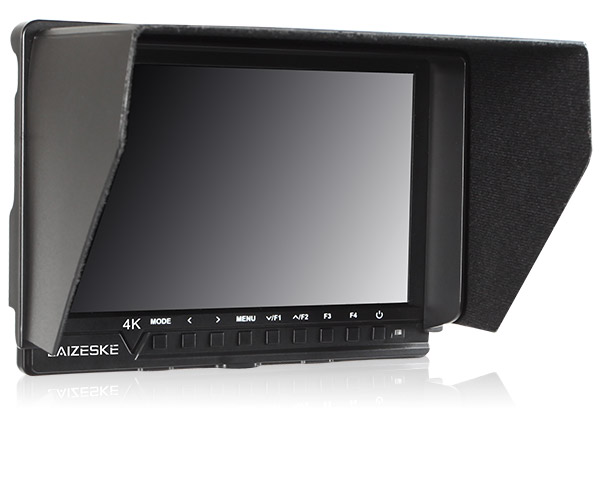

New Generation Collapsable Sunshade
For easier viewing in bright environments. DR760 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
For easier viewing in bright environments. DR760 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m²
4. 160°wide viewing angles IPS Panel
5. Ultra thin design 17mm thickness
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio Meter
12. Camera Mode
13. Zoom (Auto,4x,9x,16x)
14. Anamorphic Mode (1.3x,2.0x,2.0x mag)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black）
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All
24. U/D & L/R Zoom
25. Color Temperature Adjustment
2. High Contrast: 1200:1
3. High Brightness: 450cd/m²
4. 160°wide viewing angles IPS Panel
5. Ultra thin design 17mm thickness
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio Meter
12. Camera Mode
13. Zoom (Auto,4x,9x,16x)
14. Anamorphic Mode (1.3x,2.0x,2.0x mag)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black）
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All
24. U/D & L/R Zoom
25. Color Temperature Adjustment
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.
Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.
Image magnification is HD signal in any part, an amplification for high quality close-up.
.jpg)
Anamorphic Mode
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.
The Horizontal,Vertical and Hor&Ver of the image around flip.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

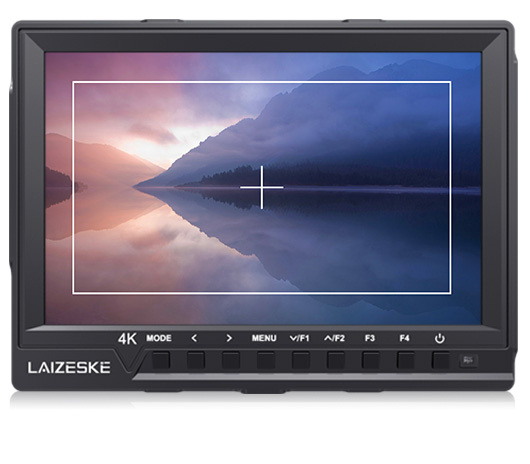

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
Display Spec.
| Model | DR760 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
| 1 X AV | AV |
| 1 X OSD Controller | OSD Controller |
Audio
| Audio | Stereo Headphone, Speaker |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|

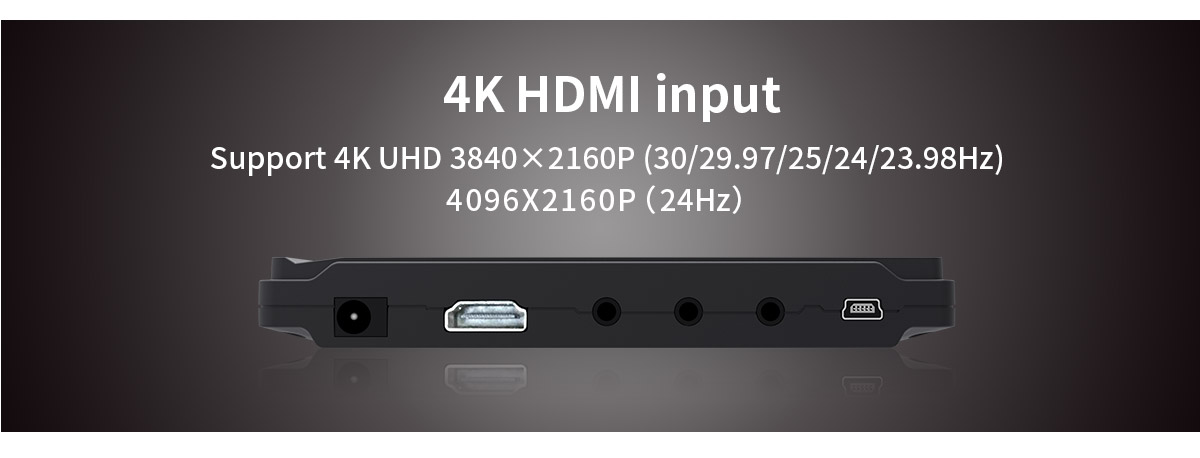

4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24 Hz)
|
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤8W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Unit Size | 176Lx130Hx17D (mm) |
| Unit Weight | 270g/370g (W/ Sunshade) |

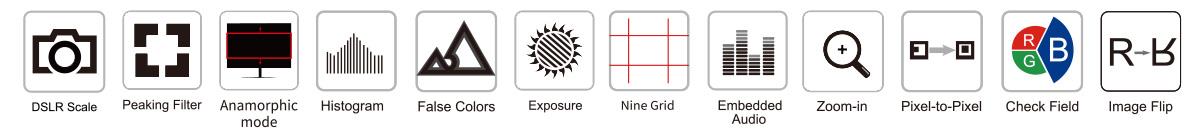

Advanced Features
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure (1-100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Camera Mode |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) |
| * Zoom (4X, 9X, 16X) (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Pixel to Pixel (Nonsupport in 4K input) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D Zoom (Nonsupport in 4K input) |
| * L/R Zoom (Nonsupport in 4K input) |
Dimensions (Unit: mm)

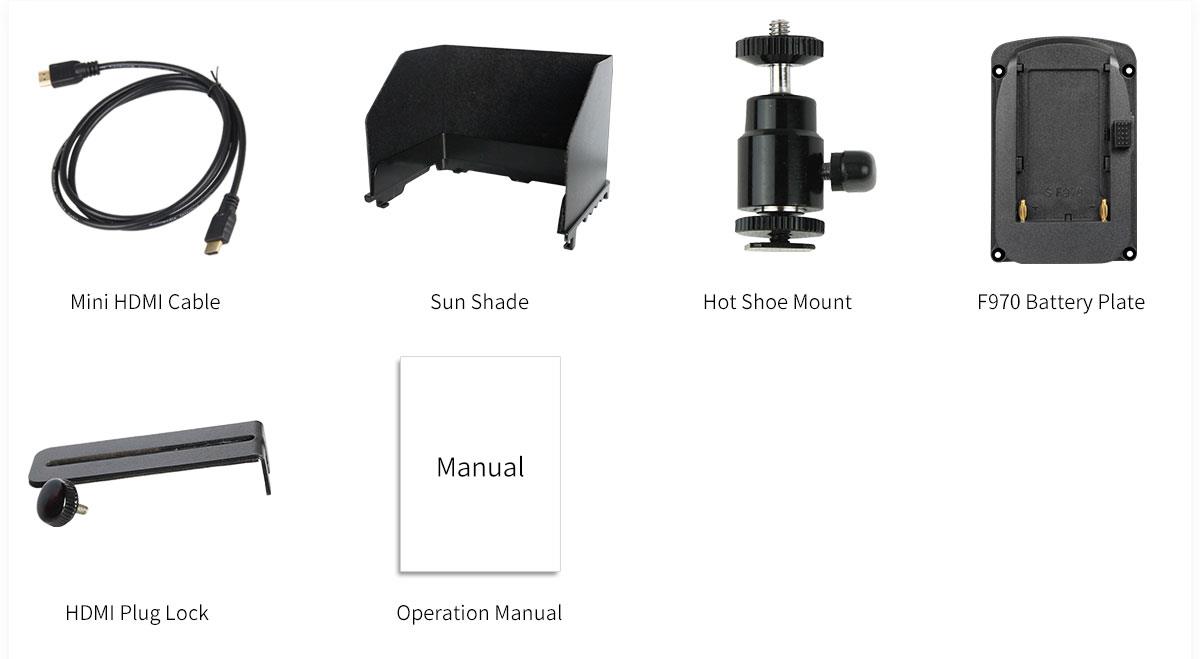

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
