More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

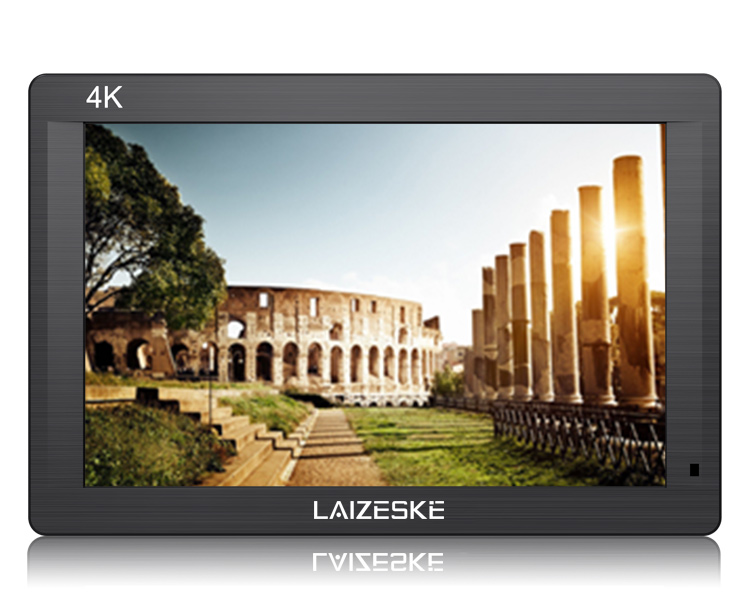

Richer, Brighter, Most Colorful
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. DRH7 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.

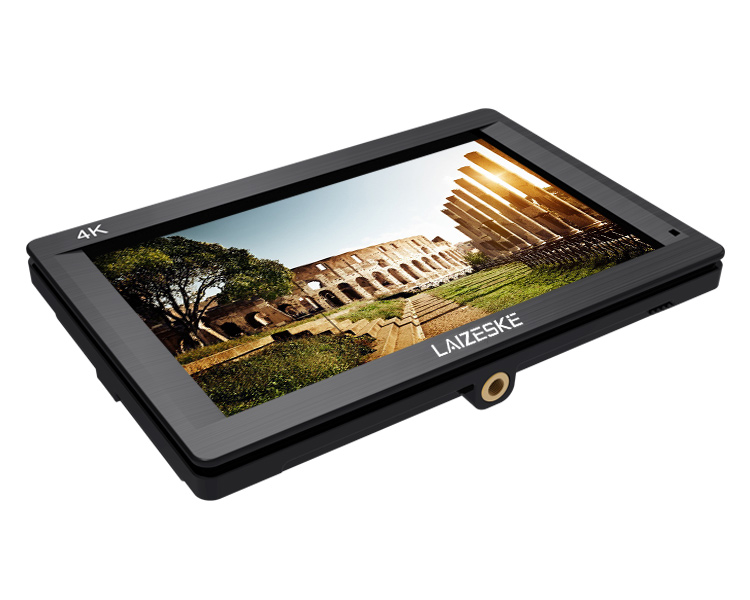

Specially designed to merge portability, and functionality, 23.1mm thickness 310g the DRH7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

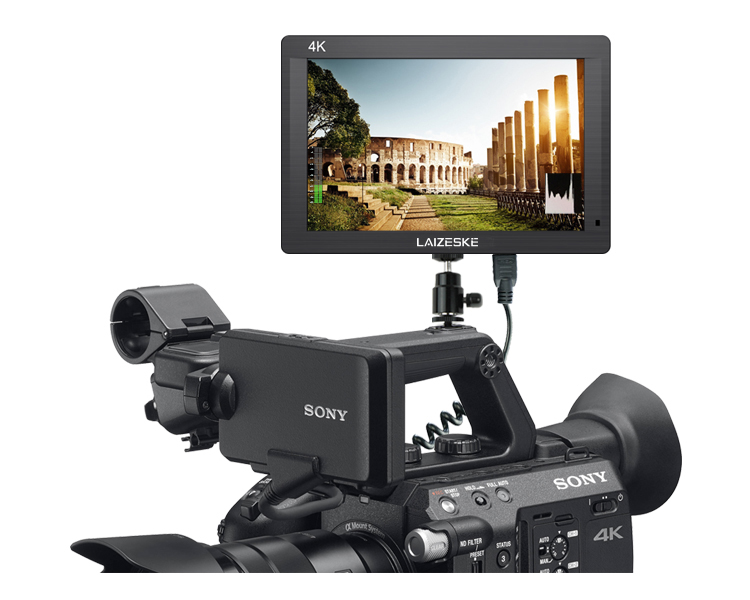

Support most DSLRs and camcorders.

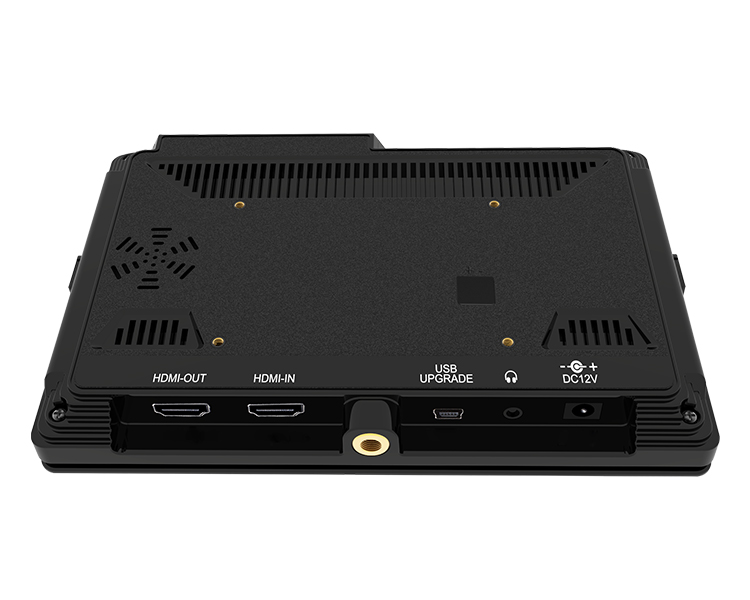

The DRH7 has both HDMI in and loop-out , allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.

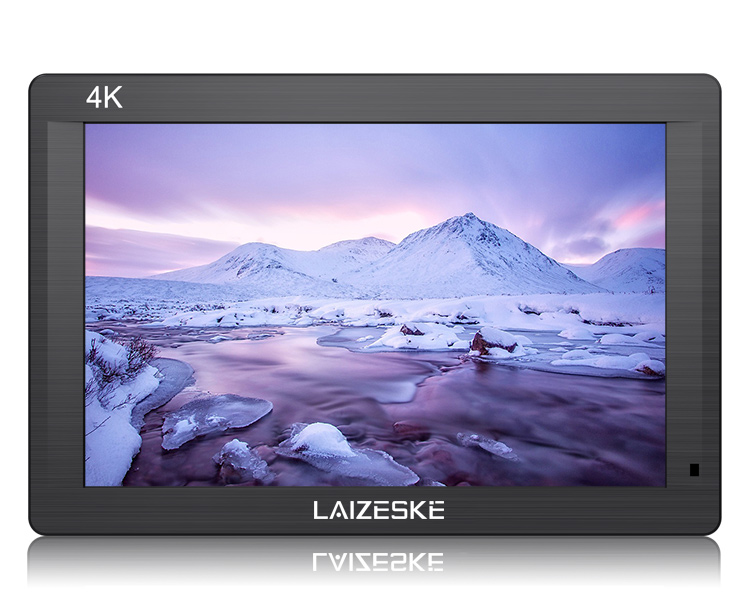

For easier viewing in bright environments. DRH7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.

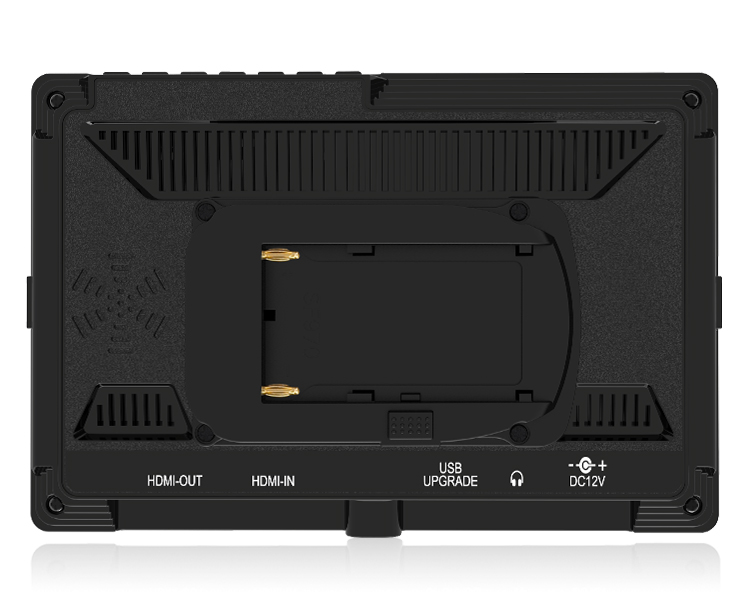

The DRH7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m²
4. 160°wide viewing angles IPS Panel
5. Ultra thin design 23.1mm thickness
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio Meter
12. Camera Mode
13. Zoom (4x,9x,16x)
14. Anamorphic Mode (1.3x,2.0x,2.0x mag)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black)
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All
24. U/D & L/R Zoom
25. Color Temperature Adjustment
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

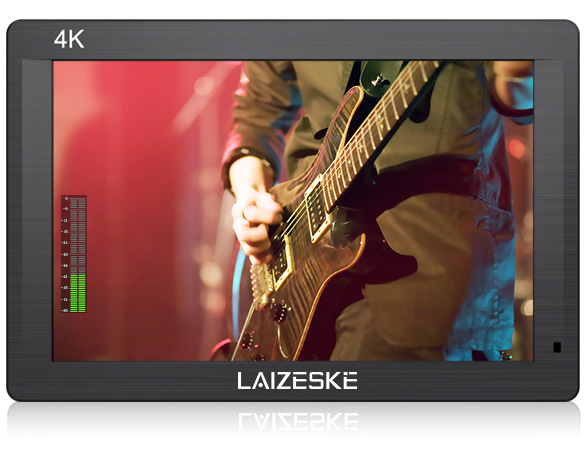

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.

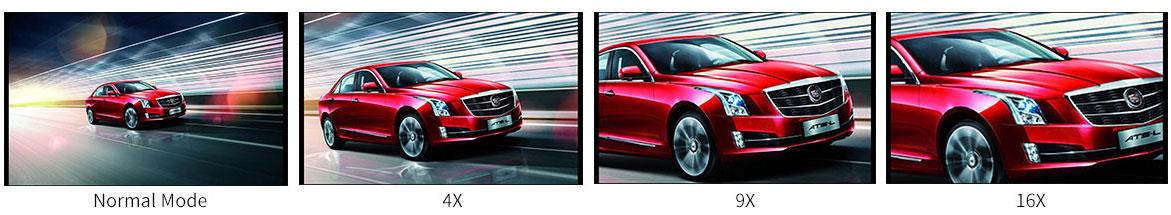

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.
Anamorphic Mode
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

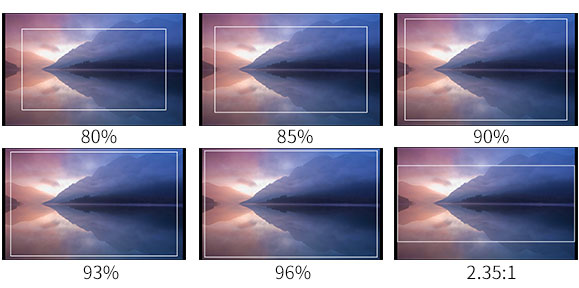

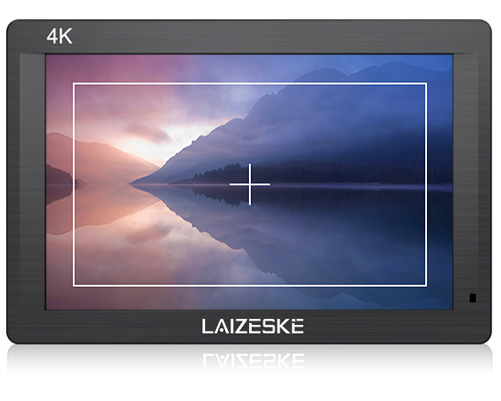

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
Model | DRH7 |
Screen Size | 7" IPS |
Resolution | 1920x1200 pixels |
Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
Aspect Ratio | 16:10 |
Brightness | 450cd/m² |
Contrast Ratio | 1200:1 |
Backlight | LED |
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
1 X HDMI | HDMI |
1 X HDMI | HDMI |
Audio | Stereo Headphone, Speaker |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
Input Voltage | DC7~24V |
Power Consumption | ≤8W |
Working Temperature | -20°C~55°C |
Storage Temperature | -30°C~65°C |
Install Way | 1/4"-20 Thread Socket (bottom) |
Battery Plate | F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |

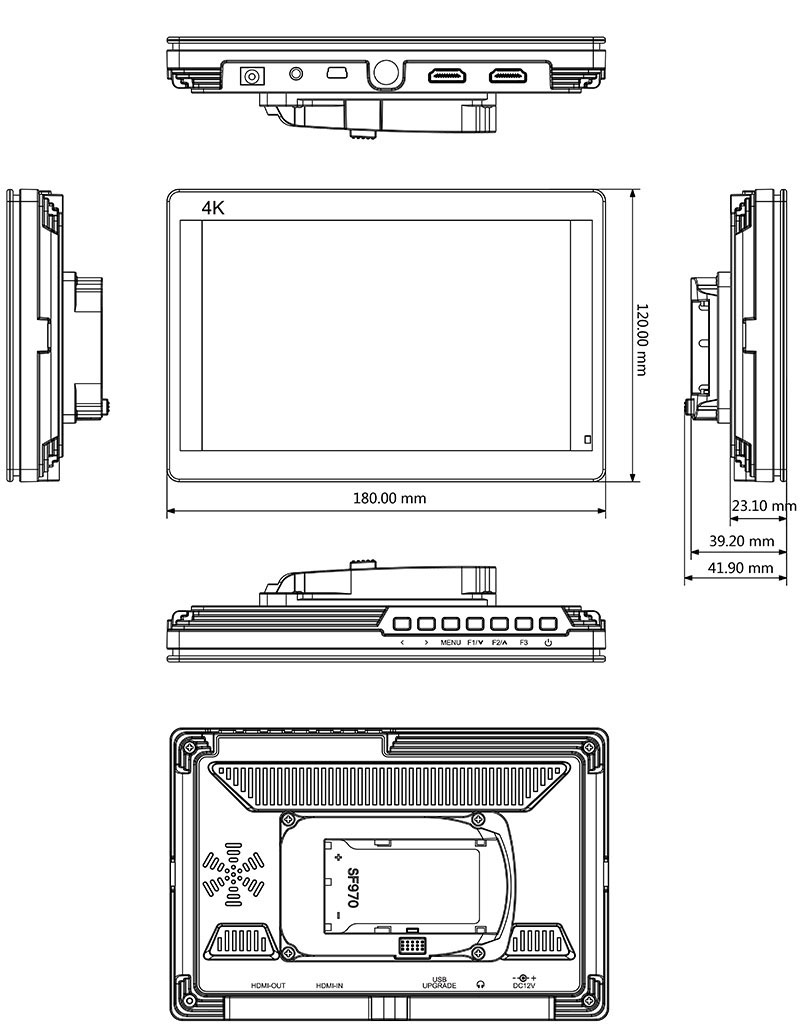

Unit Size | 180Lx120Hx23.1D (mm) |
Unit Weight | 310g/340g (With F970 Plate) |
* Brightness Histogram |
* Embedded Audio |
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
* False Colors |
* Zebra Exposure (1-100IRE adjustable) |
* Check Field (Red, Green, Blue, Mono) |
* Camera Mode |
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
* Image Flip (H, V, H/V) |
* Image Freeze |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
* Color Temperature Adjustment |
* Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) |
* Zoom (4X, 9X, 16X) (Nonsupport in 4K input) |
* Aspect Ratio (Nonsupport in 4K input) |
* Pixel to Pixel (Nonsupport in 4K input) |
* Zoom All (Nonsupport in 4K input) |
* U/D Zoom (Nonsupport in 4K input) |
* L/R Zoom (Nonsupport in 4K input) |

1× Mini HDMI Cable

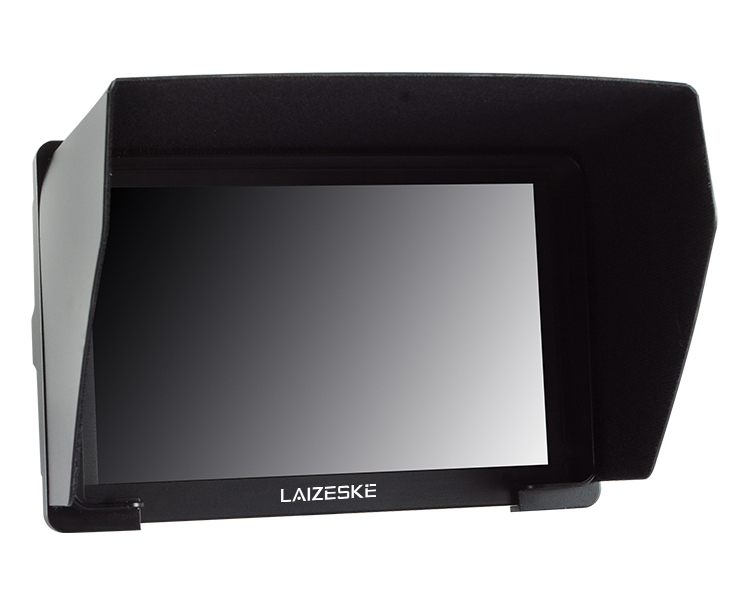

1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× Operation Manual
