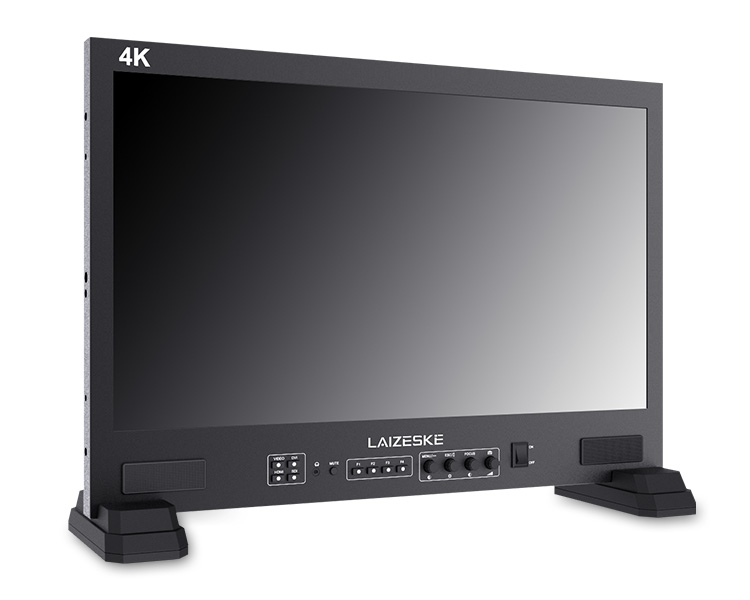

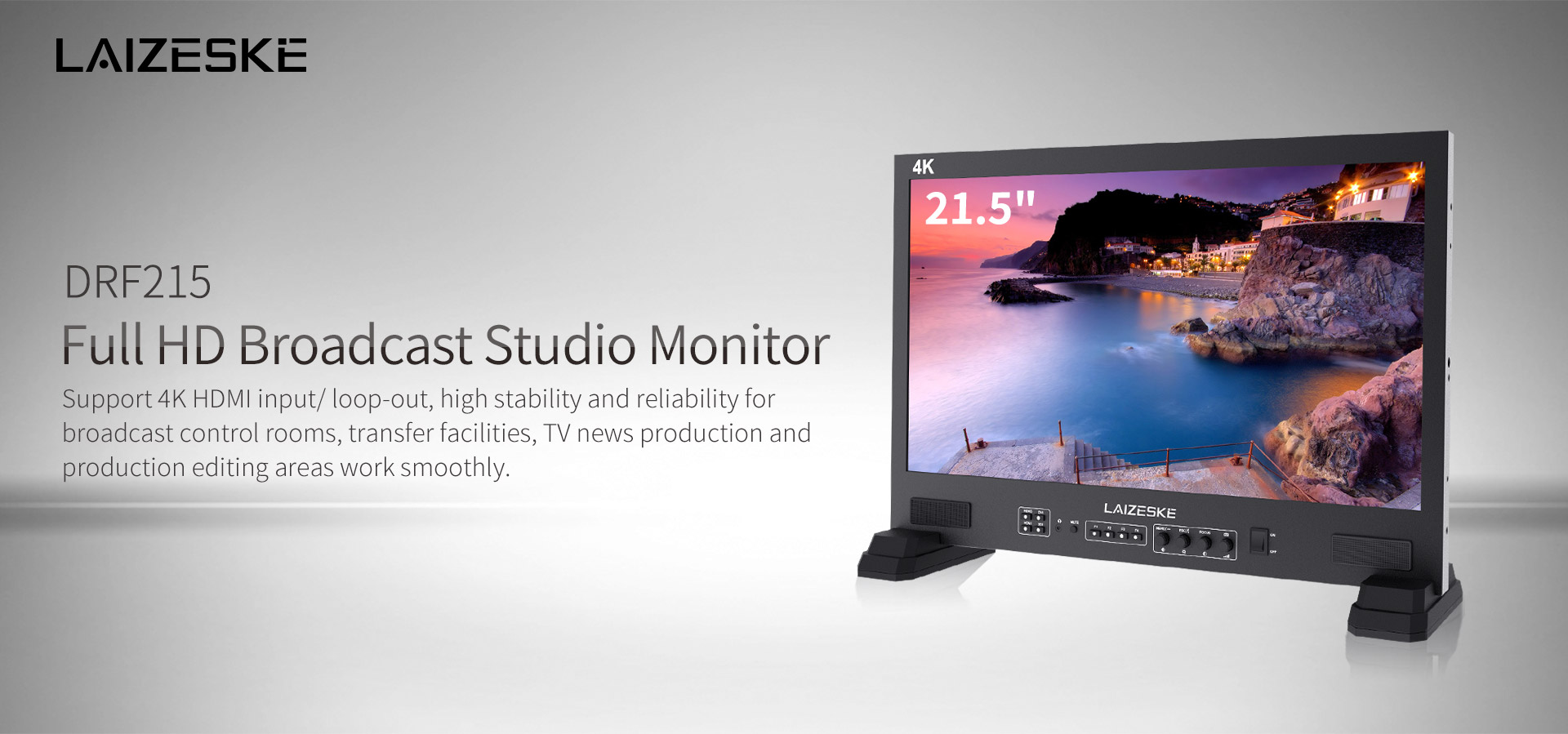

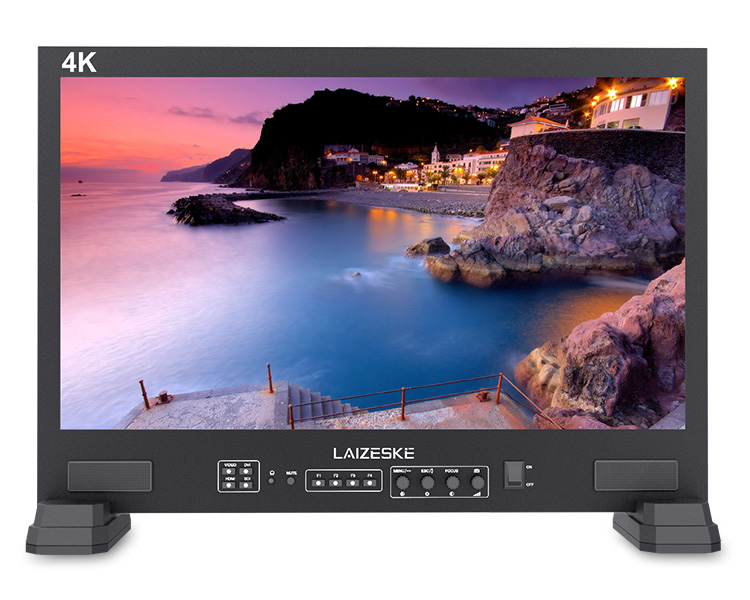

LAIZESKE SEETEC 21.5 inch 3G-SDI 4K HDMI Broadcast Studio Monitor IPS Full HD 1920x1080 DRF215

Hits:

Model:DRF215

Introduction

Screen Size:  21.5" IPS
Resolution:   1920x1080 pixels
Aspect ratio: 16:9
Brightness:   250cd/m²

Input

3G-SDI, HDMI, Video, Audio(L/R), DVI-I, RS485

Output

3G-SDI, HDMI, Video, RS485, Stereo Headphone, Speaker(built-in)

DM

pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

215-hd-monitor

full-hd-sdi-monitor4k-hdmi-monitor

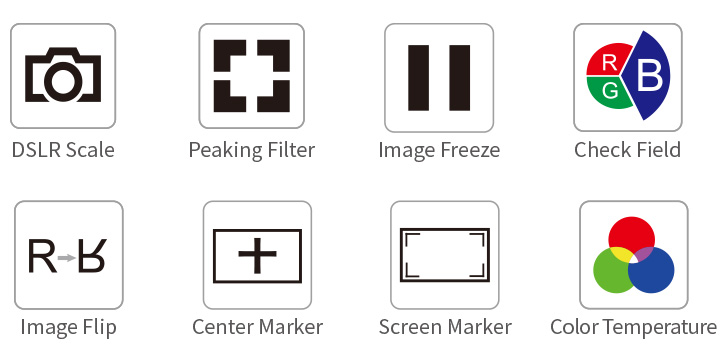

More Auxiliary Functions
More professional functions assist users to accurately exposure and focus, when shooting, making and playing movies/ videos.

peaking-studio-monitor

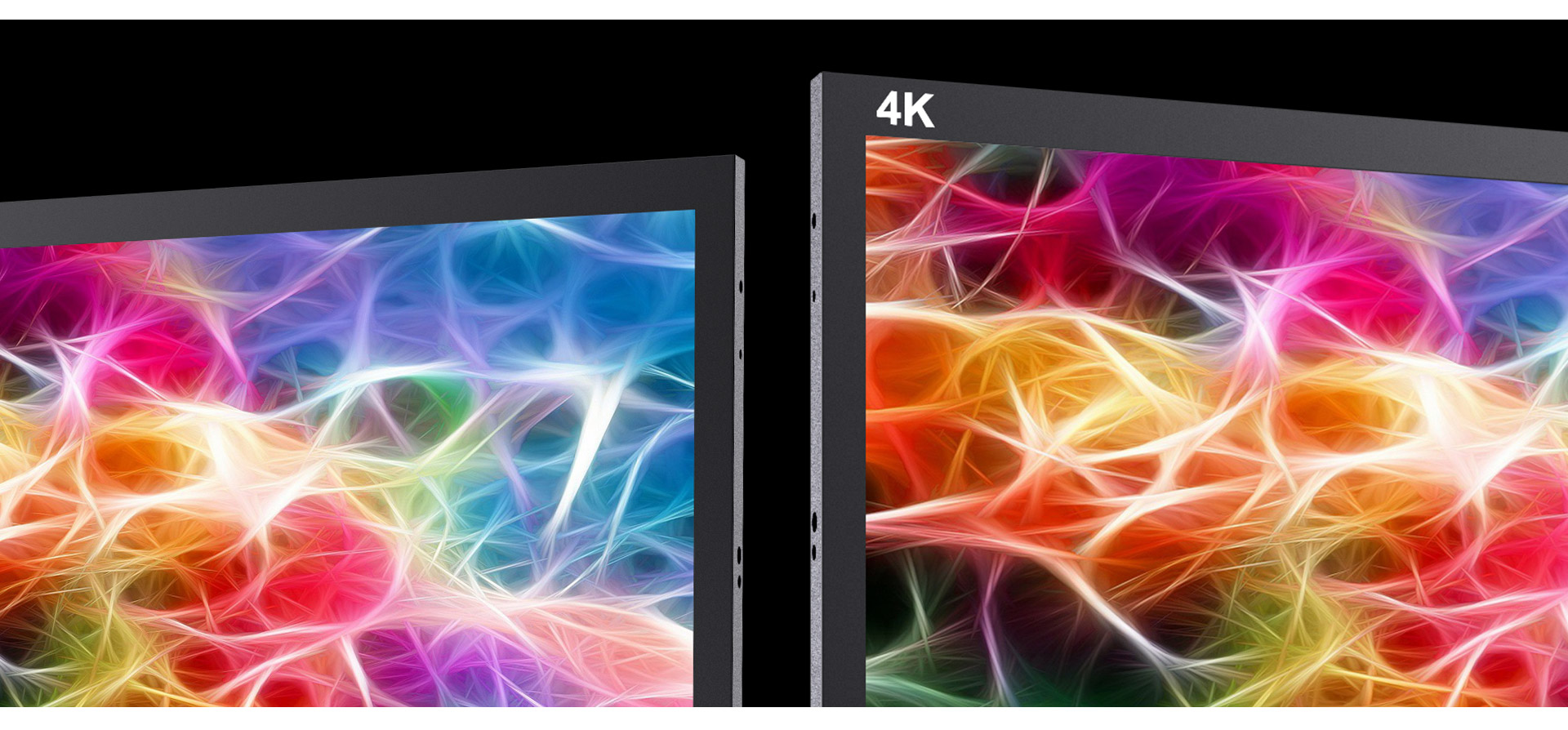

Full HD Resolution
Broadcast quality, see every little detail in massive Full HD quality!
Experience Full HD 1080P, 16.7 million color images, more clearer and sharper details, showing powerful color display capabilities, what you see is truly what you get! Let pre-production and post production more accurate. 21.5 inch large size, allows you to see every pixel.

full-hd-ips-monitor

1920x1080-broadcast-monitor



178° Wider View Angle
High Quality: no brightened dot, no streaking
178° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.

ips-panel-seetec-monitor

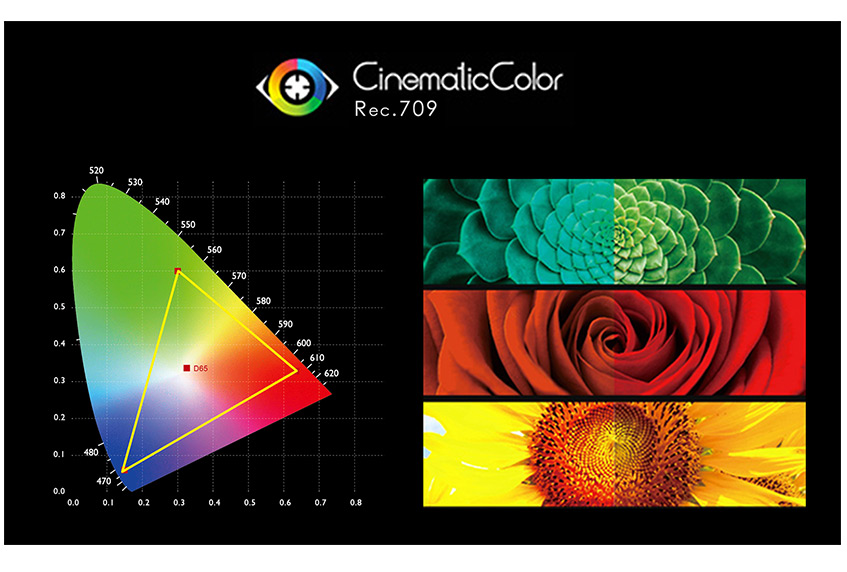

True Color . Professional Color Calibration
Use Rec.709 color standard
LAIZESKE uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

rec709



Accurate Color Reproduction
LAIZESKE monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

accurate-color-reproduction

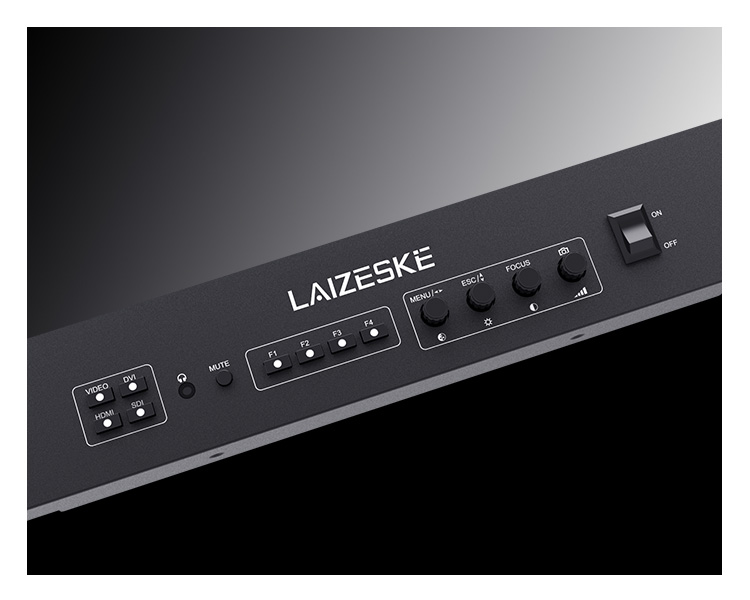

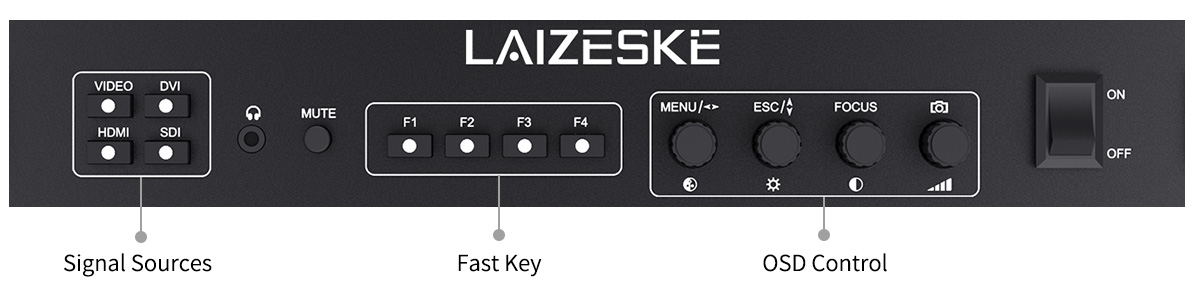

Innovation OSD Operation
Easy of operation
Switch signals quickly: VIDEO, DVI, HDMI, SDI
Four assignable shortcut keys: F1, F2, F3 and F4 for fast access to the functions you needs, Peaking, Pixel to Pixel, Camera Mode, Center Marker, Screen Marker and other functions by mean of push button.
Four rotary encoder switches: immediate access to Menu, Saturation, Brightness, Contrast, Focus, Camera Mode.

professional-displays



Professional Monitoring
Broadcast quality SD, HD and 3G monitoring!

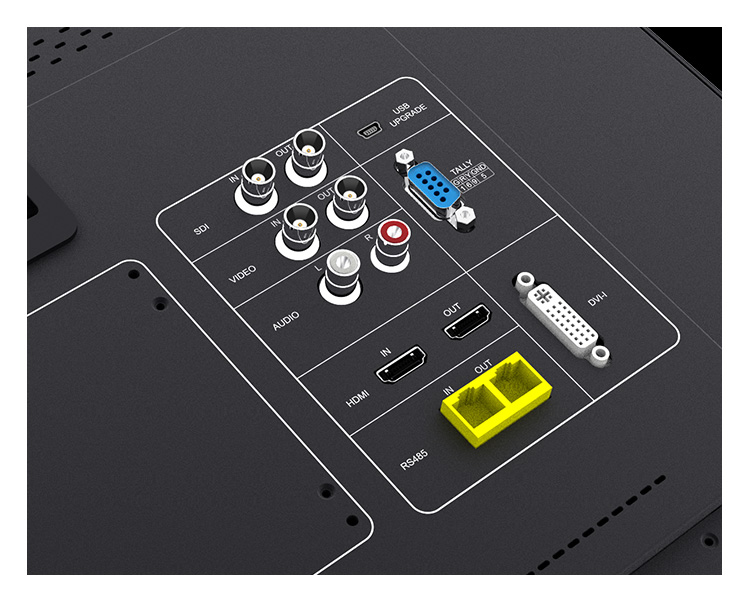

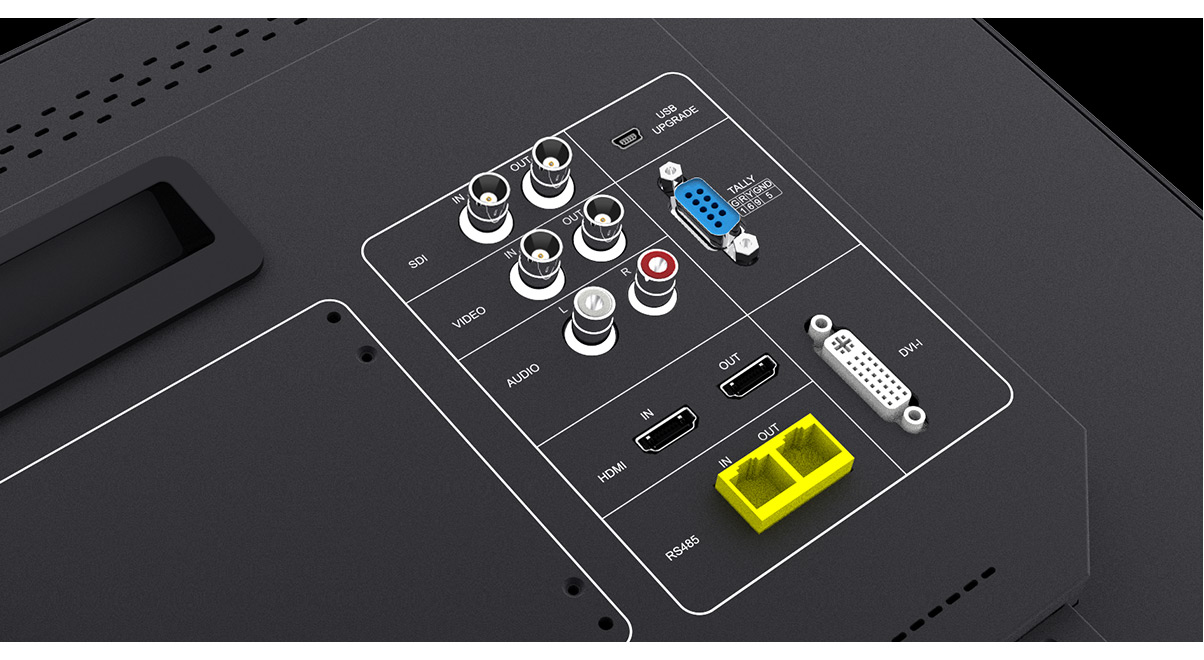

LAIZESKE DRF215 is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, Audio, Video, RS485, DVI-I inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.
When you need high quality monitoring, LAIZESKE monitors are the perfect solution!

3G-SDI-HDMI-VideoAudio-RS485-DVI-I

3G-SDI-4K-HDMI-monitor



4k-hdmi-input-output



22-inch-4k-monitor

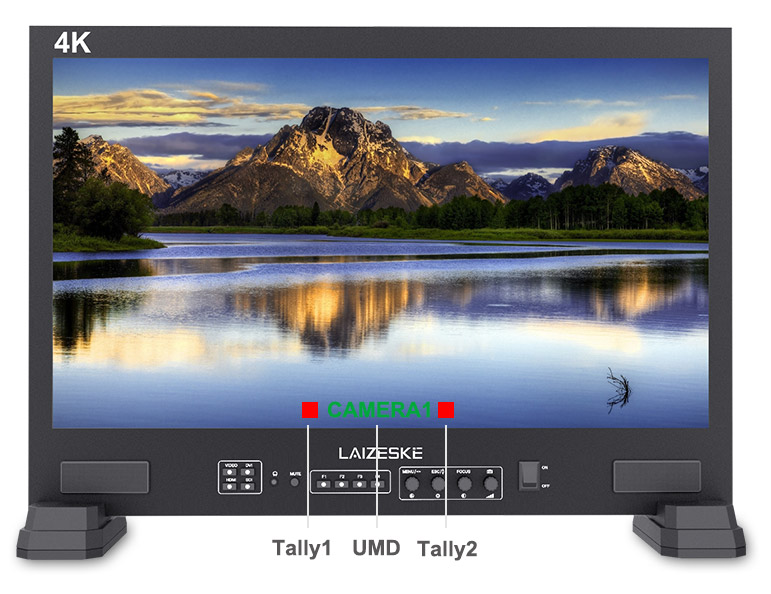

UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
DRF215 supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

22-3g-sdi-monitor

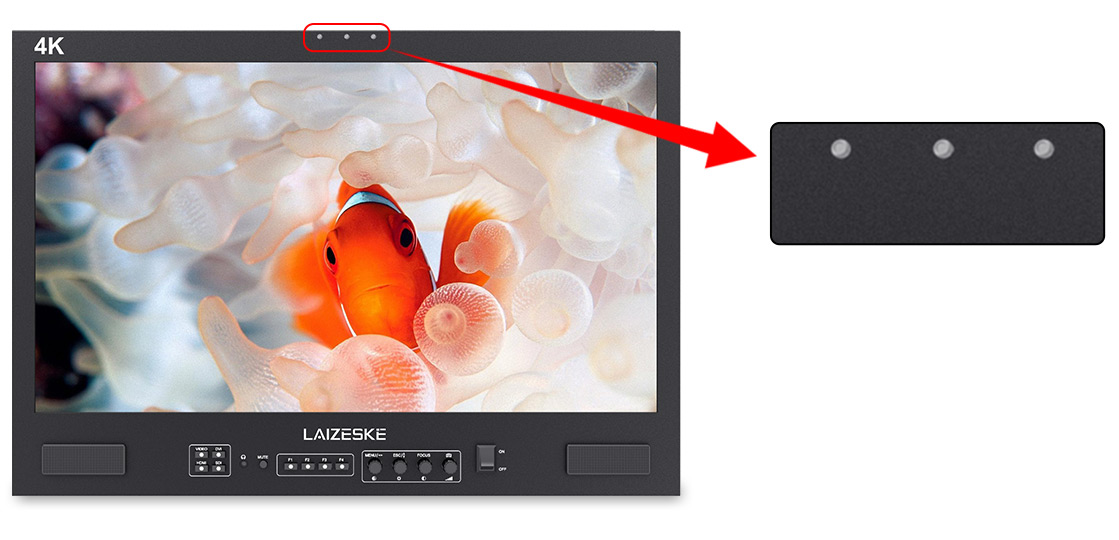

Innovative Designed TALLY Optional
Innovative designed tally function optional can not only tell the photographer being recording status, also make you experience that professional technique of TV recording you the convenience for your creation.

3g-hd-sdi-monitor

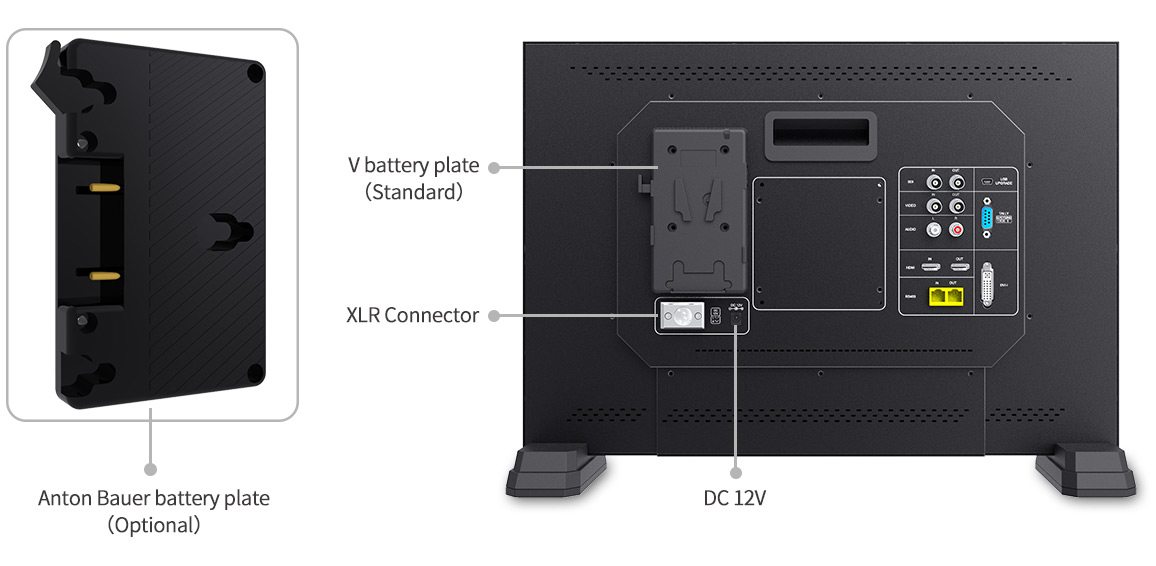

Hassle-free Power
Monitoring anywhere you need it!
We've made it easy to power the monitor. The DRF215 can be powered in two ways: with an DC adapter or lithium batteries. The DRF215 has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

battery-powered-broadcast-monitor

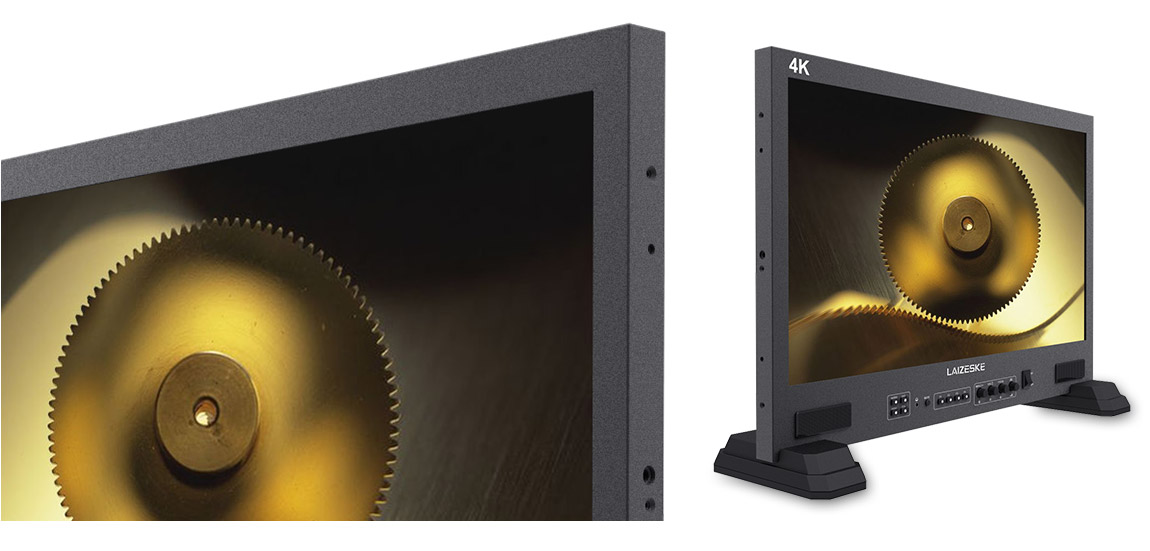

Stability and Reliability
Incredibly rugged design
Machined aluminum design that's built to last! The full metal shell not only make the product more solid and durable, but also solve the problem of heat dissipation.

21-led-monitor

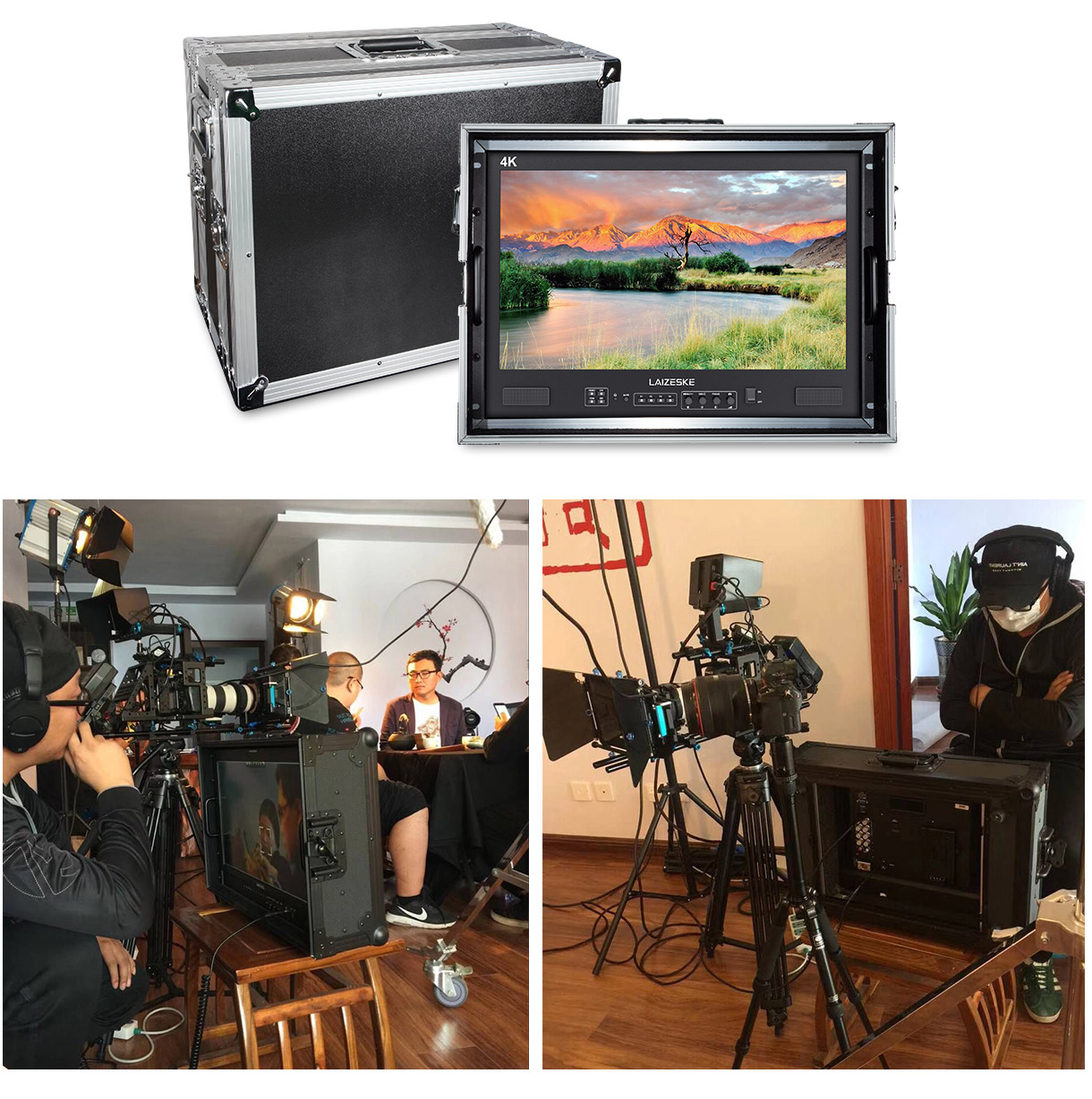

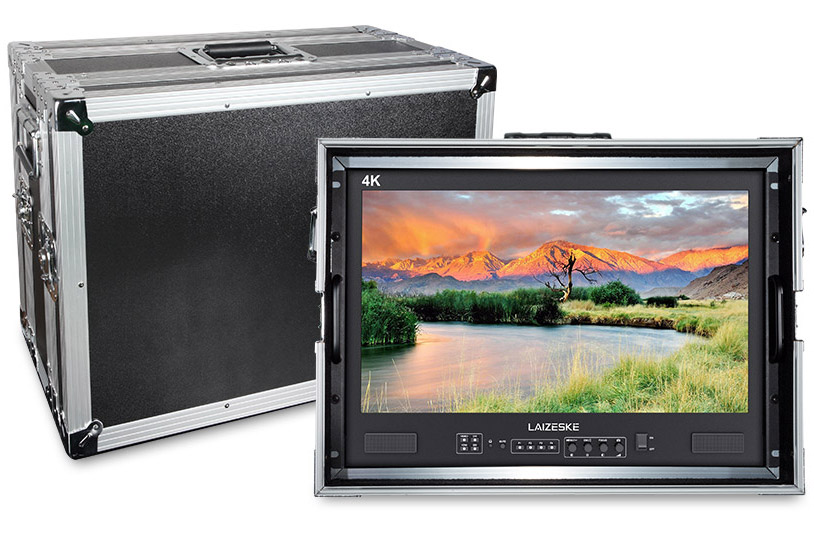

Innovative Design Portable Aviation Aluminum Case Optional
Unique design for high efficiency
Optional assembly of portable aluminum case, can effectively protect the monitor and easy to carry and transport, suitable for harsh shooting environment.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The LAIZESKE DRF215 is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

21-inch-carry-on-monitor



1. Wide view angle IPS screen, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Video, Audio(L/R), RS485, DVI inputs and HDMI, 3G-SDI, Video, RS485 loop-through outputs
3. Special Features:
* UMD and Text-Tally Display (TSL 3.1/4.0 Protocol)
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow) optional
6. Power using included 12-volt supply or use standard 4-pin XLR



Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.



Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.



Camera Mode Function
It will be full screen under camera mode.



Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

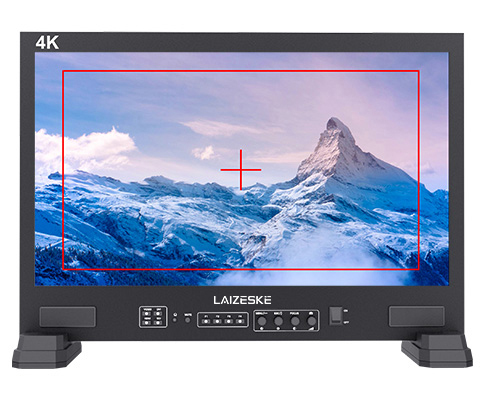

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)



Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.



Display Spec.
 Model  DRF215
 Screen Size  21.5" IPS
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Dot pitch  248.25x248.25 um
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  3000:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)

Input
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 1 X Video  Video
 2 X RCA  Audio(L/R)
 1 X DVI-I  DVI-I
 1 X RS485  RS485

Output
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 1 X Video  Video
 1 X RS485  RS485

Audio
 Audio  Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage  DC9-24V
 Power Consumption  ≤18W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size   511.56Lx355.6Hx36.33D (mm) (W/O stand feet)
 Unit Weight  4.4kg

Advanced Features
* UMD and Text-Tally Display (TSL 3.1/4.0 Protocol)
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Freeze
* Image Flip (H, V, H/V)
* Camera Mode
* Pixel-to-Pixel  (Nonsupport in 4K input)
* Check Field (Red,Green,Blue,Mono)
* Zoom All  (Nonsupport in 4K input)
* U/D & L/R Zoom  (Nonsupport in 4K input)
* Aspect Ratio (Nonsupport in 4K input)
* Custom Color Temperature
* Built-in LED tally indicators optional

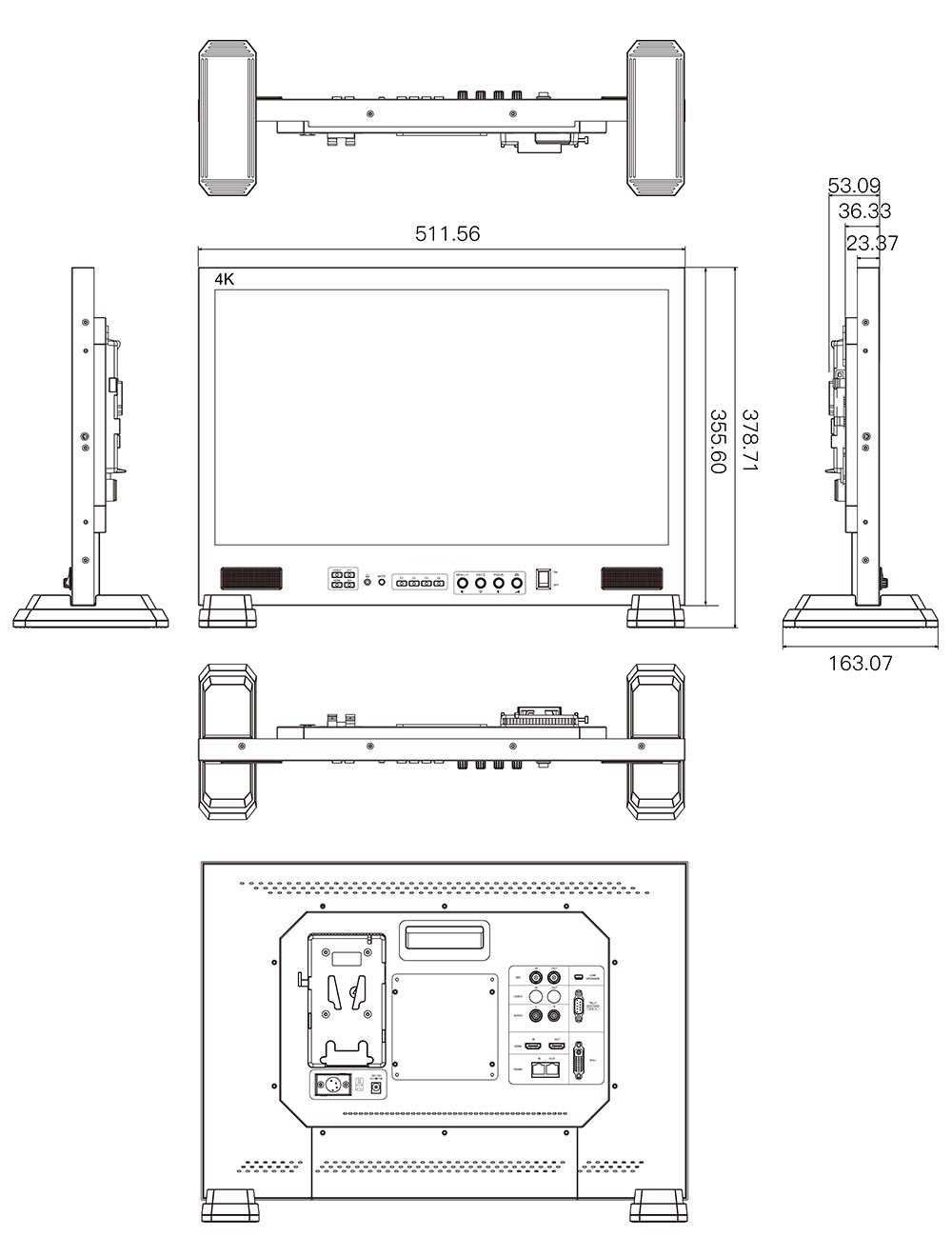

Dimensions (Unit: mm)

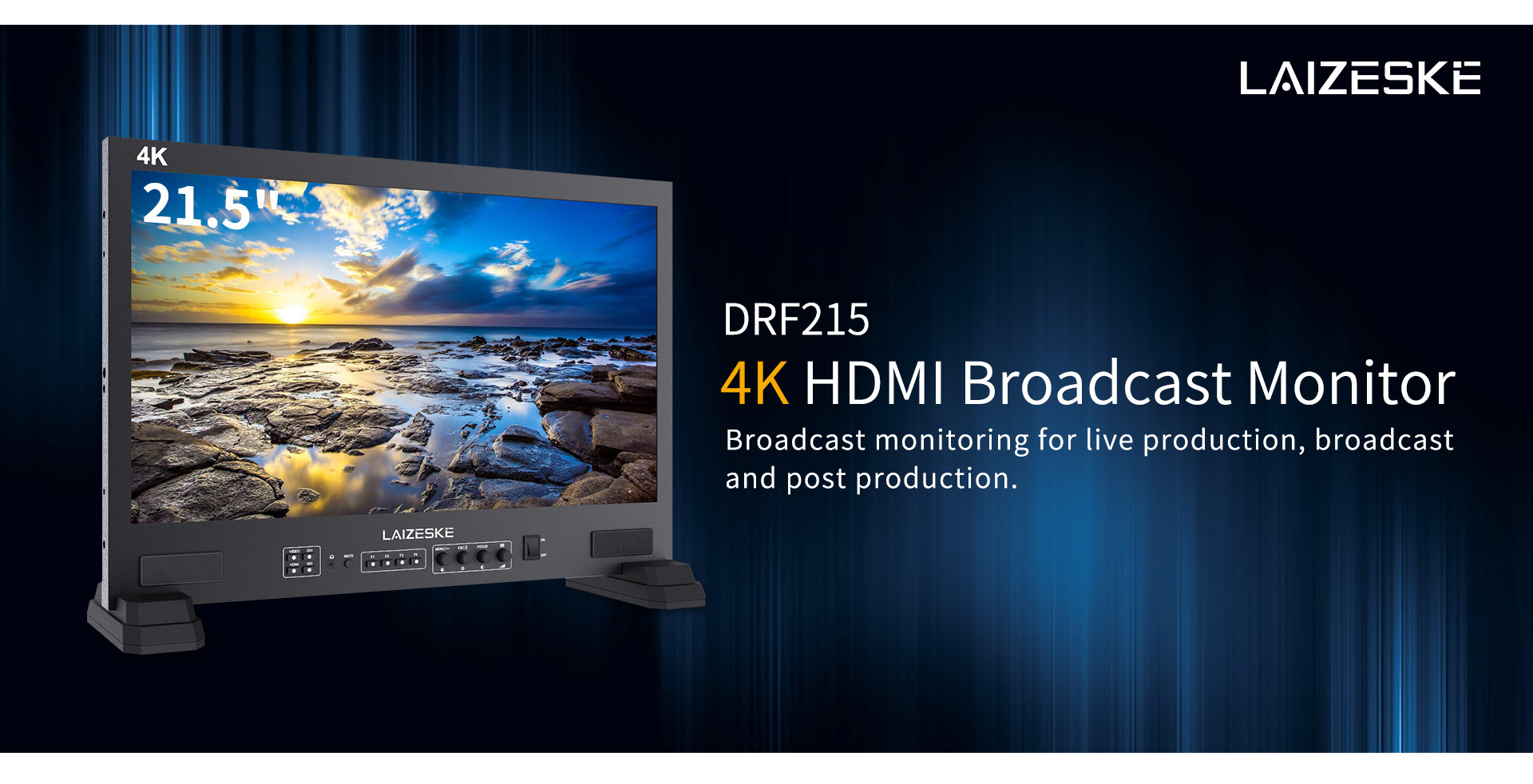

Flexible Your Workflow
Broadcast monitoring for live production, broadcast and post production
LAIZESKE DRF215 is an incredibly versatile monitor packed with features support SD/HD/3G-SDI and Ultra HD 4K HDMI 2160p, that make it perfect for broadcast and post! Mount it in a rack or hang it on a wall using a standard VESA mount. Support both external batteries, 12V DC power and XLR power, you can install it anywhere! Use external batteries on set, or plug it into standard power in your news rooms, vans, and post facilities.

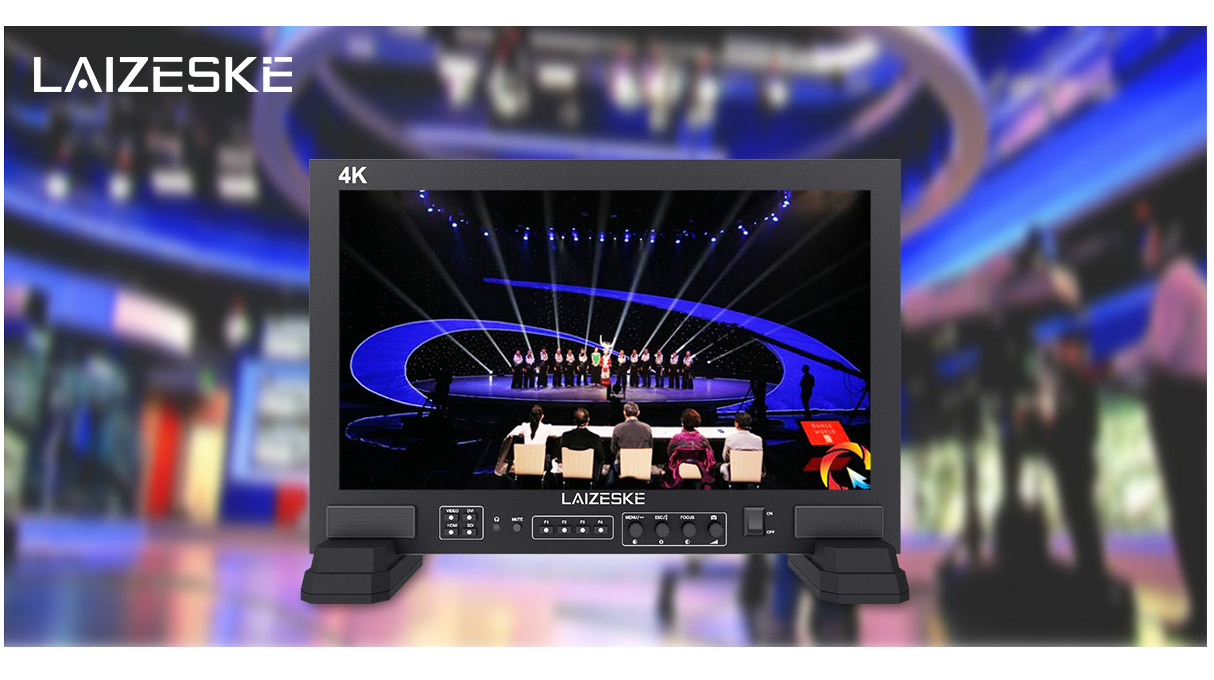

Live Broadcast
The ideal rack mount monitoring solution for broadcasters
When you're working on a multi camera studio production, you need to see all of your sources, graphics, keys and program displays at the same time. DRF215 supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The amazing clarity of the Full HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras!

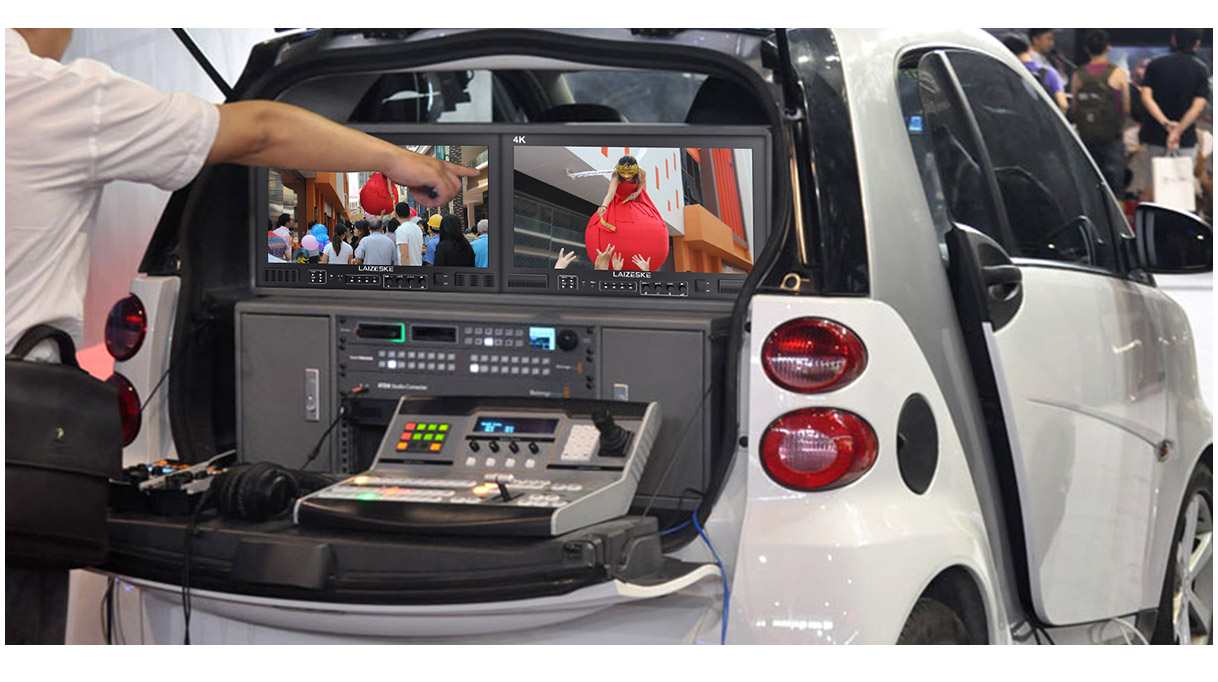

Broadcast Trucks
Incredibly thin mount design for when space is tight!
LAIZESKE DRF215 is ideal for the limited space in broadcast news trucks. Its super thin design, so it fits in the shallow racks mounted on the inside walls of news vans and trucks. You get both external battery, DC power and XLR power, flexible use it anywhere. There are even built in safe frame guides that make it easy to see safe picture area during live production.



Innovative Design Portable Aviation Aluminum Case Optional
Unique design for high efficiency
Optional assembly of portable aluminum case, can effectively protect the monitor and easy to carry and transport, suitable for harsh shooting environment.
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The LAIZESKE DRF215 is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

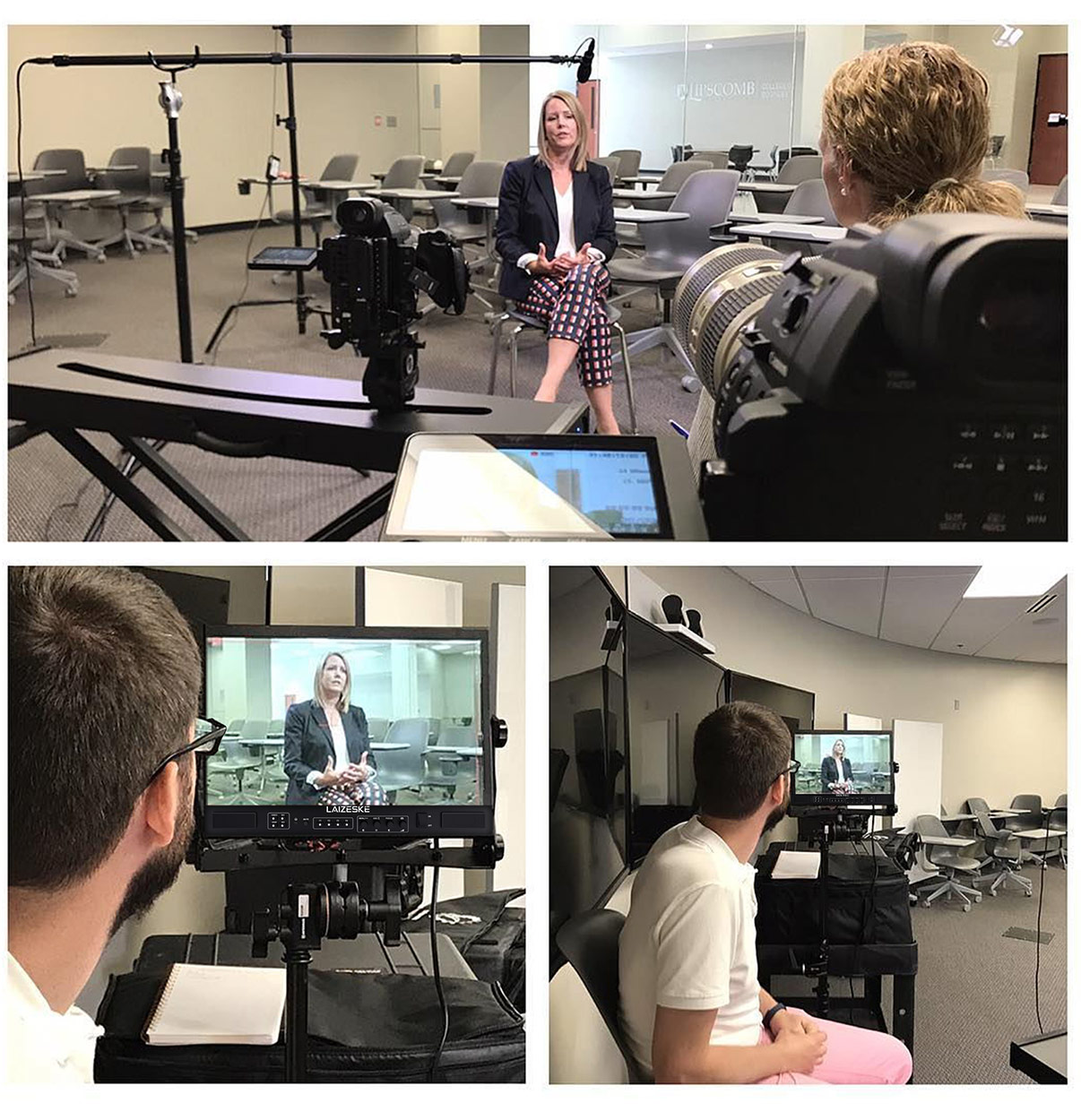

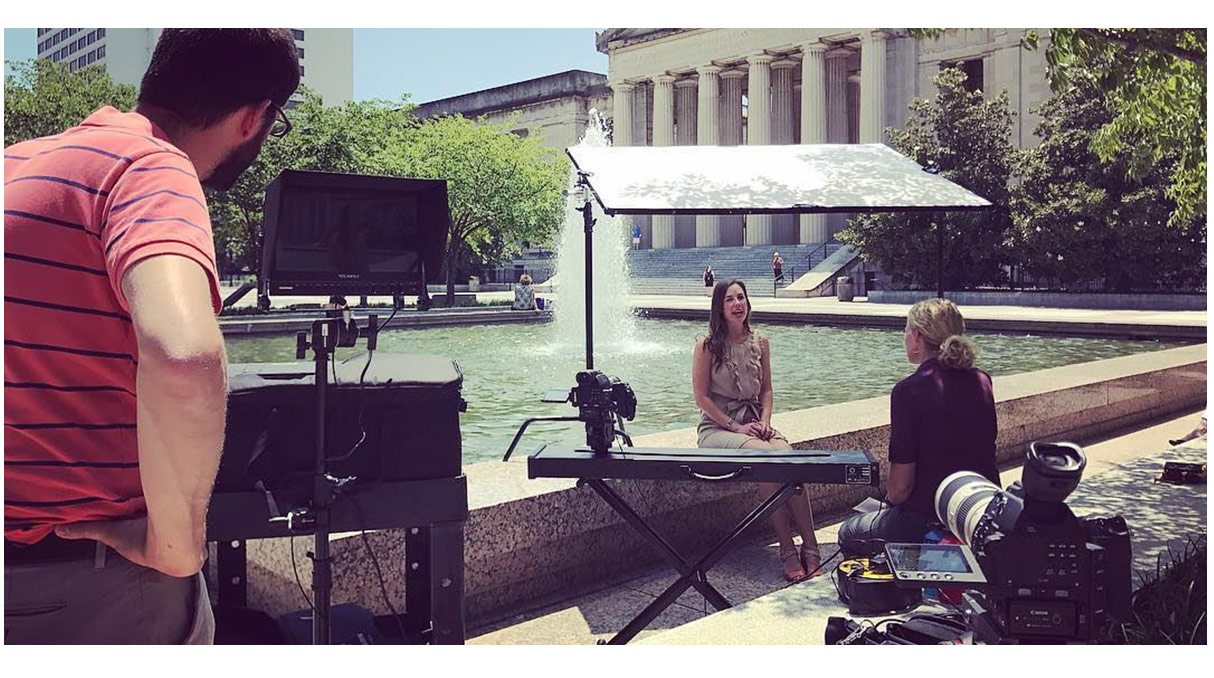

Film Crew Monitor
Now it's easy to get perfect focus and framing, everyone can see!
You get LAIZESKE DRF215 monitor, that's 21.5 inch large enough and full resolution allows you to see image every pixel, and with safe frame helpful for composition during shooting or title placement, ideal for the entire crew to see and tools such as peaking focus assist for focus accurately are ideal for camera assistants.

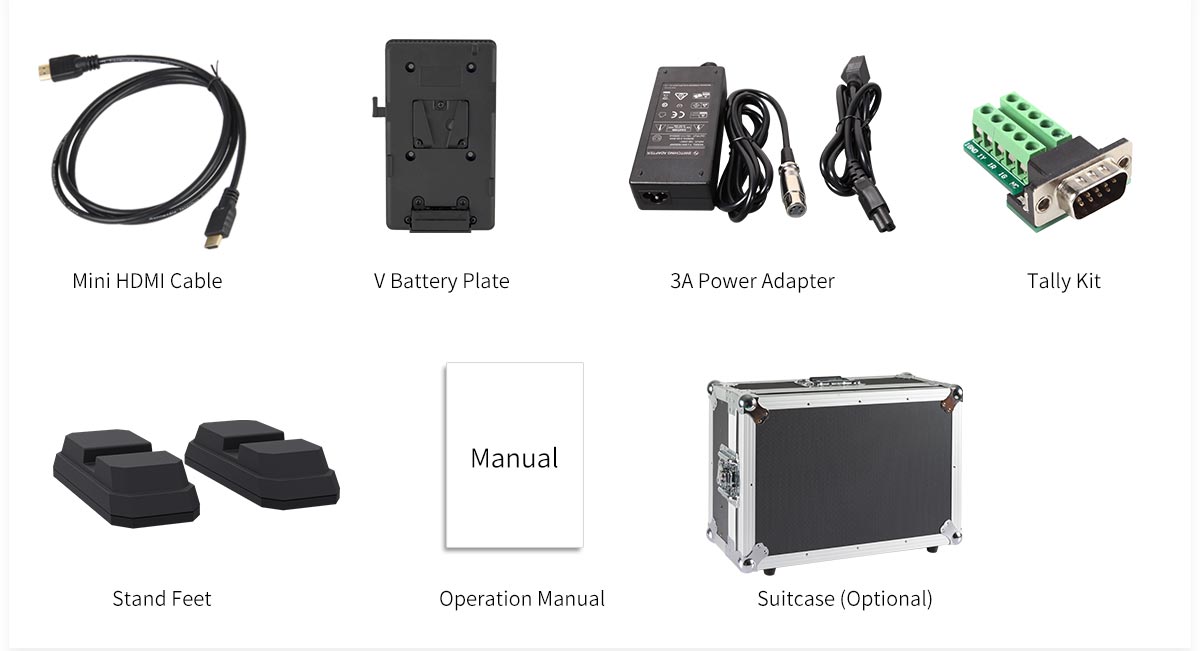

Standard Accessories:
  1× Mini HDMI Cable
  1× V-mount Battey Plate
  1× 3A Power Adapter
  1× Tally Kit optional
  2× Stand Feet
  1× Operation Manual

Optional Accessories:
  1× Suitcase
