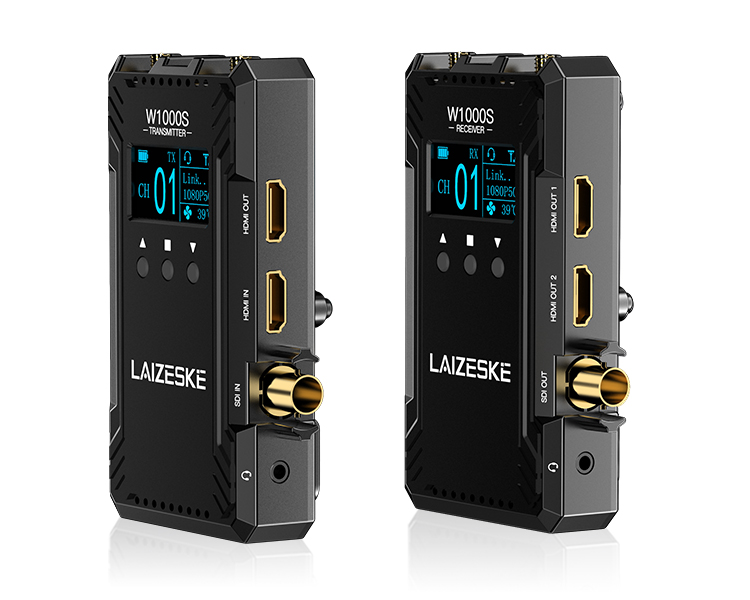

LAIZESKE W1000S 1000FT Dual HDMI + SDI Wireless Video Transmission System

Hits： 次

Model：W1000S

Introduction

Dual HDMI +SDI ports
1000ft(LOS)transmission distance
Up to 1080P60Hz
Wireless full-duplex intercom
One TX to multiple RX
Support APP monitoring
13 frequency channels, AUTO channel scan.

Input

3G-SDI HDMI

Output

3G-SDI, HDMI

DM

pdf Shop/2021/8/W1000S DM .pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

wirelesstransmissionsystem

firmware update transmission

LAIZESKE W1000S Video Transmission System Uprade to Version 1.1.9
In order to improve user experience,we updated the W1000S to V1.1.9. The user who has purchased can update the firmware.



Full Duplex Intercom Wireless Video Transmission System
Ideal for director and photographer
LAIZESKE W1000S TX/RX set is a real-time wireless video transmission system integrated with intercom which enable communication between the director and the photographer as well as wireless video transmission system functions, save your time and costs to set an extra intercom system. Supports SDI and dual HDMI wirelessly transmission range in 300 meters (max 400m) with 0.08S ultra-low latency, up to 1080P/60Hz video signal provide higher quality image. Supports one transmitter to multiple receivers, the transmitter can be switched as receiver at will. OLED screen show link status, signal strength, video format, intercom mode, battery level, temperature, fan status, etc. information. Android/iOS system APP monitoring; mulitple power options. Ideal for filmmaking, sports events, wedding live broadcast, church live streaming, etc.

full duplex transmission



Full Duplex Wireless Communication
Meet the real-time intercom between the director and the photographer
The one of highlights for W1000S is its full duplex intercom, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.

sdi video transmission



1000FT Transmission Range with 0.08S Low Lantency
The W1000S has more than 1000ft hassle-free and reliable range for wireless video and audio transmission; 0.08S achievable latency for real-time monitoring that enables.

1000ft transmission system



Dual HDMI + SDI Input and Output
Meet your different needs
SDI input HDMI input and output on TX; SDI and dual HDMI output on RX
Note: When switching the sources between HDMI and SDI on the transmitter, SDI input is selected by default if both HDMI and SDI sources are connected.

sdidualhdmitransmission



Compact and Lightweight

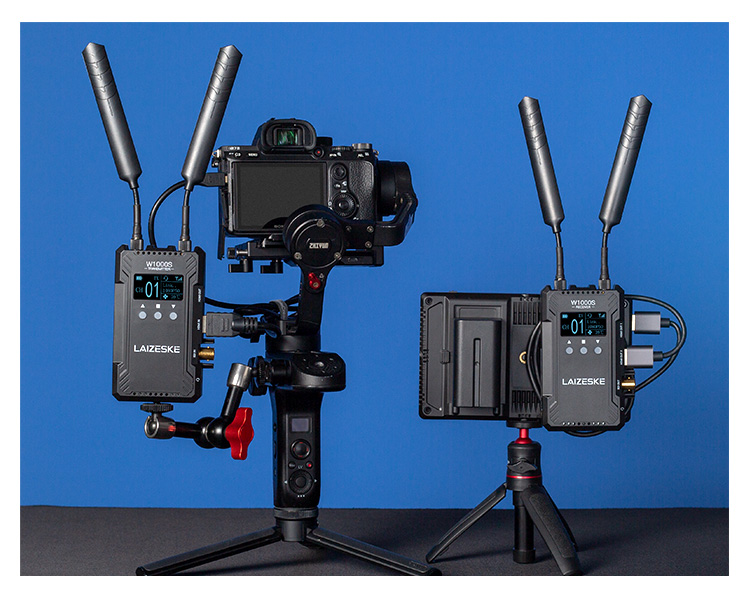

The W1000S is compact, lightweight, and small enough to mount anywhere. Both at the bottom of transmitter and receiver come with a single ¼”-20 mounting point for mounting camera arms, cold shoes, etc.

compacttransmissionsystem



One Device Dual Uses
More flexible and costs-effective
The transmitter can be flexible switched as a receiver, if you purchase two sets W1000S, you can setup 1 Transmitter, 3 receiver.

laizeske sdi tramsmitter system

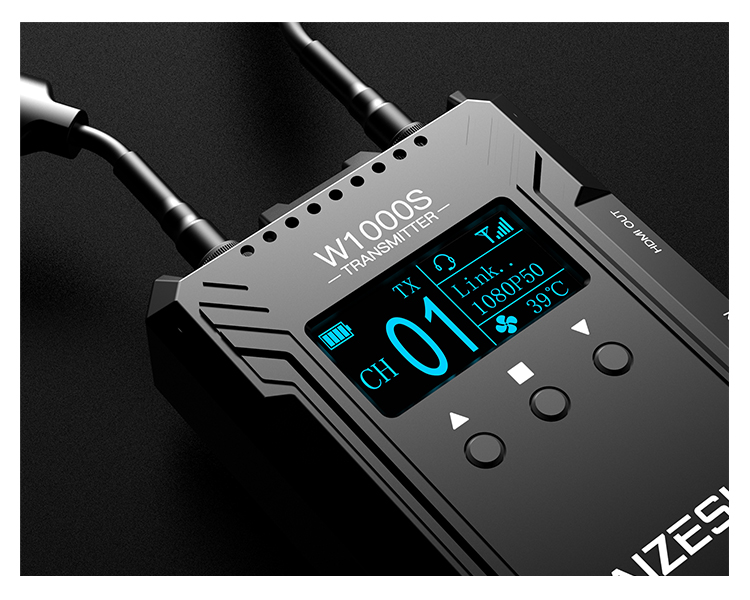

Innovation OLED Screen Design
Reading status and control system easily
The W1000S has a creative OLED screen so you can check out all device status and control the system with displayed information on the screen.

oled screen transmission



1080P HD Image Quality
The resolution supports 1080P60,1080i60 and under 1080P60 format, provide a higher quality image.

real time monitoring transmssion

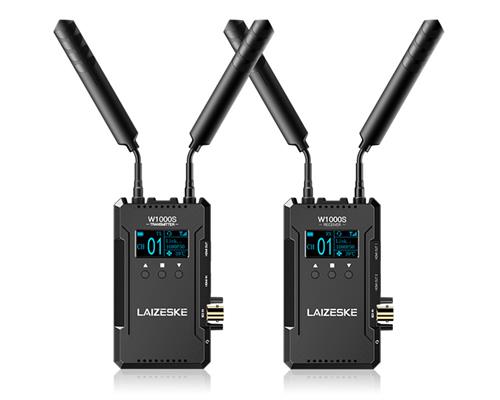

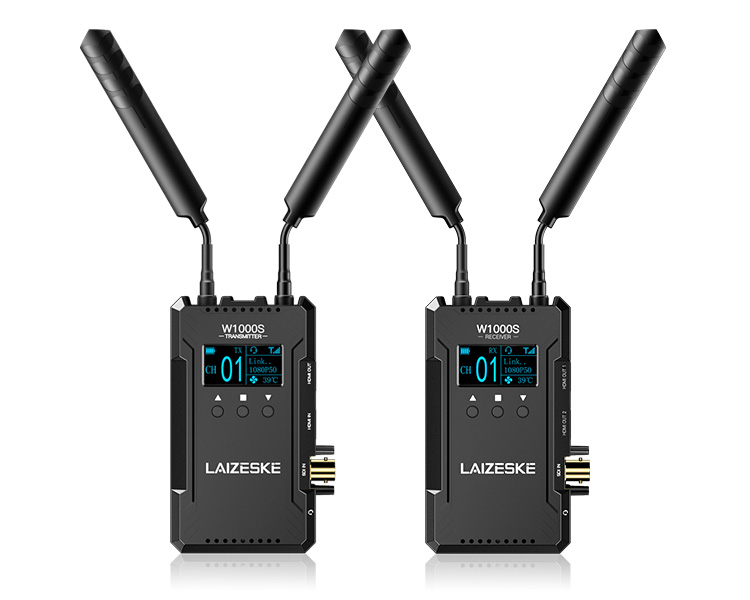

One Transmitter to Multiple Receivers
Monitoring for everyone on set
More than one device can “join the party”. W1000S allows you have up to four receivers bound to one transmitter that efficient your crew monitor every shot as it happens.

lightweight transmission system



13 Frequency Channels, AUTO Scan
Make the shooting screen more stable
There are 13 frequency channels. Automatically scan the current environment to find out available channels and avoid the channels with interference.

auto scan transmission



Built-in Fan, Effective Cooling
The excellent cooling design enable the device working long time in hot environment as well.

cooling fan transmission



Real-Time APP Monitoring
Support Android/iOS system
Supports both Android and IOS system APP monitoring, up to 4 phones or tablets real-time monitoring with professional monitor features, such as monochrome, false color and center mark(other features are under development).
IOS users can search “ LAIZESKE” on APP store to get APP (name: MMonitor)

ios app transmission



Android APP (name: LAIZESKE ) can be downloaded in the "Download" section of the W1000S details page or scan the QR code to download.

app monitoring transmission

dual system app transmitter



Multiple Power Options
Long-lasting power for your shooting
The W1000S is equipped with Sony F970 battery plate to be powered by standard F970 battery, Type-C ( 5V/1.5A ) charging and 6-16V DC power options.
Note: Due to the actual output of some batteries will be greater than 16V, which may burn the machine. Please ensure that the actual output voltage of the battery used is less than 16V.

wireless video transmitter



Wide Range Application
The W1000S is widely used in the areas of filmmaking, sports events, wedding live broadcast, church live streaming, corporate events etc.
wide application transmission









Key Features:

* Dual HDMI + SDI signal interfaces, meet your different needs
* More than 1000ft transmission range with 0.08S ultra-low latency
* Up to 1080P@60Hz, provide high quality image
* Wireless full-duplex talkback, real-time intercom between the director  and the photographer
* The transmitter can be switched as a receiver at will
* One TX to multiple RX, monitoring for everyone on set
* Real-time APP monitoring for Android/iOS system
* 13 frequency channels, AUTO channel scan



Transmitter
 Screen  OLED
 Interface

 1 * SDI input

 1 * HDMI input

 1* HDMI output

 2 *Antenna port （RP-SMA Male）

 DC power input

 3.5mm headphone jack

 Type-C
 Power Supply Way/Voltage

 F970 battery

 Type-C: 5V/1.5A

 DC adapter: 6-16V
 Power Consumption  <7.5W
 HDMI Format

 480P60, 576P60

 720P60/59.94/50

 1080P60/59.94/50/30/29.97/25/24/23.98

 1080I60/59.94/50

 HDMI Type A
 SDI Format

 480P60, 576P60

 720P60/59.94/50

 1080P60/59.94/50/30/29.97/25/24/23.98

 1080I60/59.94/50

 1*BNC
 Frequency  5.1-5.9GHz
 Modulation Mode  OFDM
 Transmission Power  Maximum 17dBm
 Band Width  20MHZ
 Latency  Min 0.08S
 Intercom Frequency Response Range  20Hz~20KHz
 Operating Temperature  0℃ ～ 40℃
 Storage Temperature  -20℃ ～ 60℃
 Unit Size(mm)  67L*24W*118H (excluding antenna）
 Unit Weight  128g



Receiver
 Screen  OLED
 Interface

 1 * SDI input

 2* HDMI output

 2 *Antenna port （RP-SMA Male）

 DC power input

 3.5mm headphone jack

 Type-C
 Power Supply Way/Voltage

 F970 battery

 Type-C: 5V/1.5A

 DC adapter: 6-16V
 Power Consumption  <6.5W
 HDMI Format  480P60, 576P60

 720P60/59.94/50

 1080P60/59.94/50/30/29.97/25/24/23.98

 1080I60/59.94/50

 HDMI Type A
 SDI Format  480P60, 576P60

 720P60/59.94/50

 1080P60/59.94/50/30/29.97/25/24/23.98

 1080I60/59.94/50

 1*BNC
 Frequency  5.1-5.9GHz
 Modulation Mode  OFDM
 Receiving Sensitivity  -87dBm
 Band Width  20MHZ
 Occupied Bandwidth  20/40MHz
 Latency  Min 0.08S
 Intercom Frequency Response Range  20Hz~20KHz
 Operating Temperature  0℃ ～ 40℃
 Storage Temperature  -20℃ ～ 60℃
 Unit Size(mm)  67L*24W*118H (excluding antenna）
 Unit Weight  128g



Packaging Information
 Size of Color Box  252L*173W*50H (mm)
 Outer Carton QTY  10PCS
 Size of Outer Carton  305x255x420mm
 Gross Weight

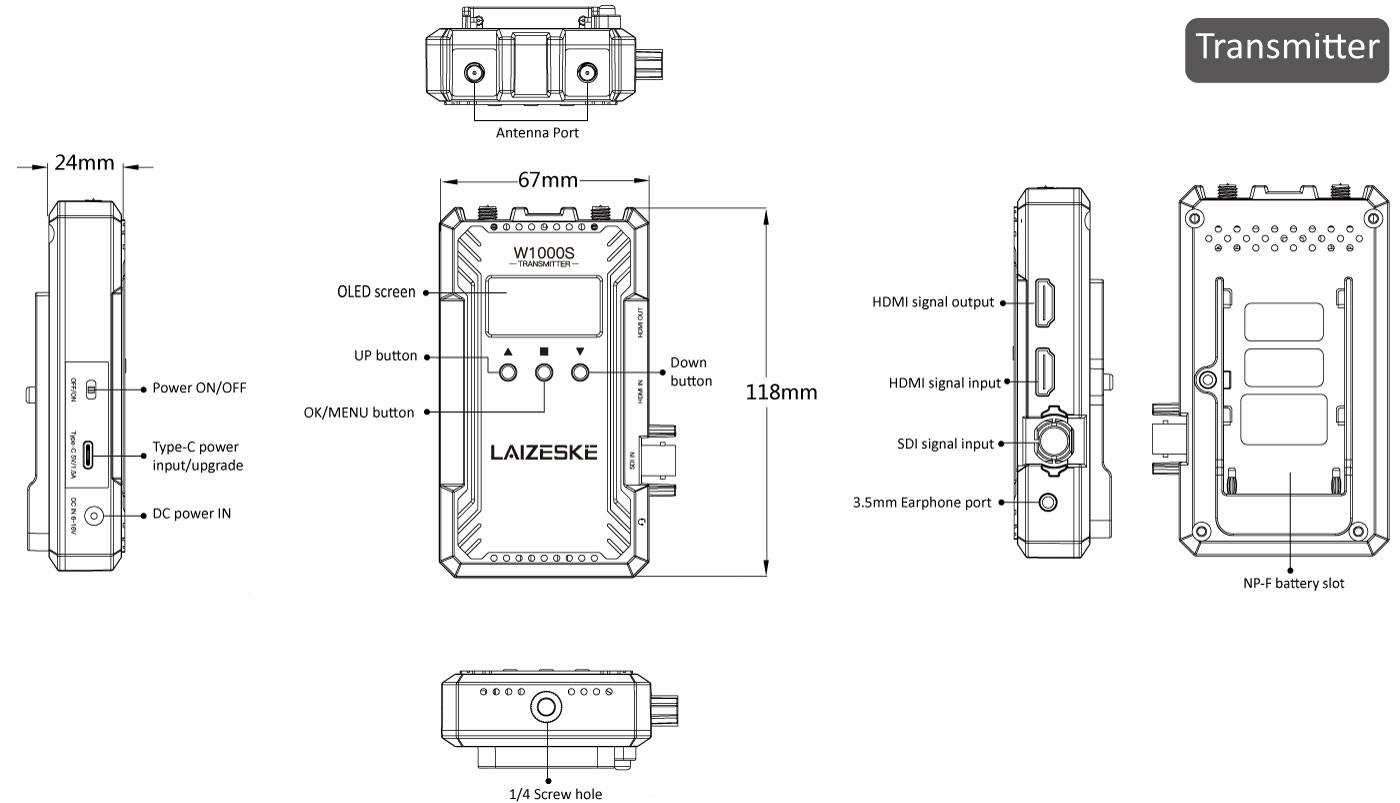

Structure







Packaging List:
1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× Type-C to USB
1× User Manaul
