Brings Video Transmission to the next level

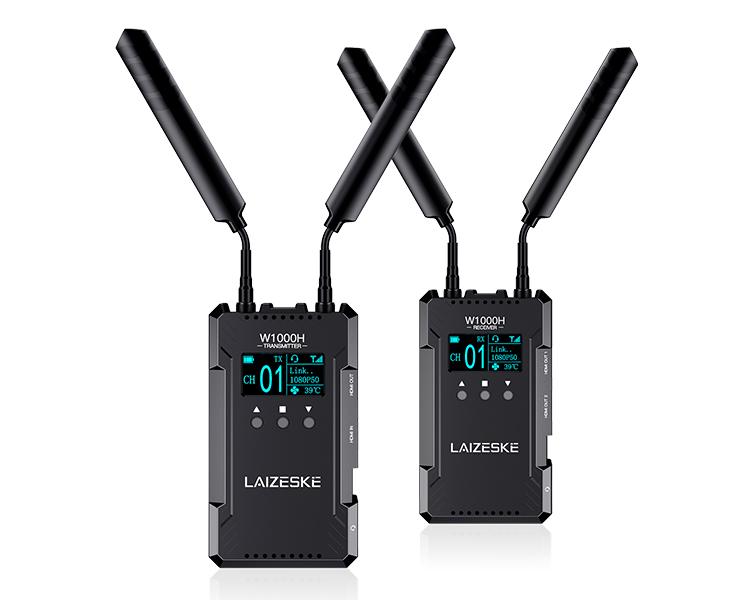

LAIZESKE W1000H TX/RX set is a real-time wireless video transmission system integrated with intercom and live streaming. With 8Mbps high data rate, dual HDMI ports and other features built for professional filmmaking, the W1000H empowering filmmakers, crews, and content creators everywhere.
Meet the real-time intercom between the director and the photographer
The one of highlights for W1000H its full duplex intercom, just connect to headphone, enable communication between the director and the photographer, save your time and costs to set an extra intercom system.
Supports static IP and route IP
With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on our personal computer without further encryption and decryption via a video capture device.
Note: The Type-C to Ethernet adapter is optional

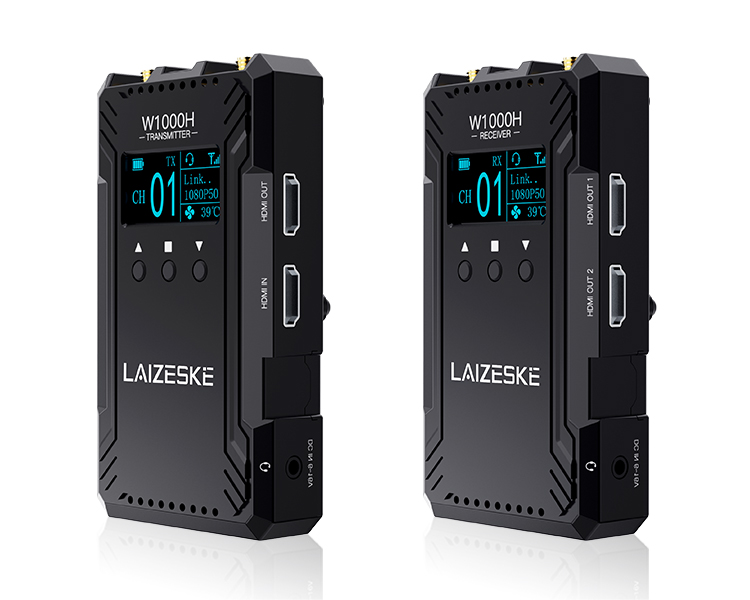

The W1000H is compact, lightweight, and small enough to mount anywhere. Both at the bottom of transmitter and receiver come with a single ¼”-20 mounting point for mounting camera arms, cold shoes, etc.
The W1000H has more than 1000ft hassle-free and reliable range for wireless video and audio transmission; 0.08S achievable latency for real-time monitoring that enables.

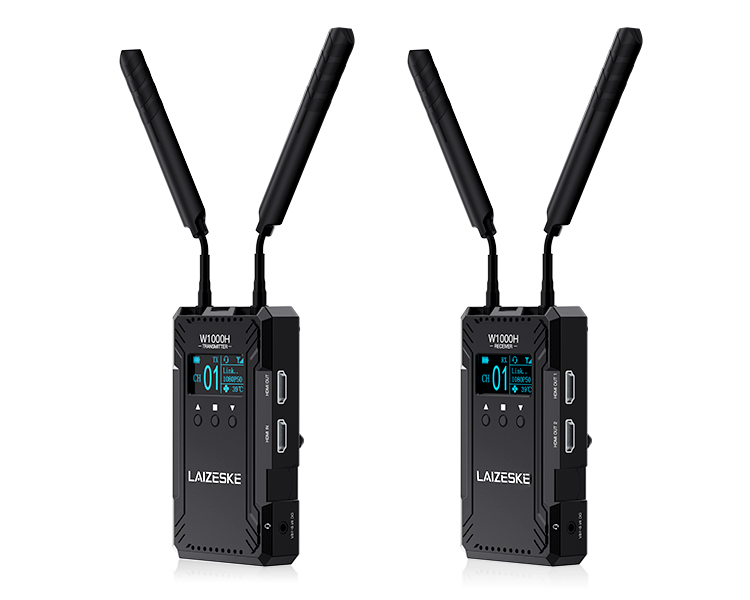

The transmitter with HDMI input and output, can output video a small monitor on the camera, allow the cameraman to clearly see the shots. The receiver with two HDMI outputs, which support simultaneous output the video.
More flexible and costs-effective

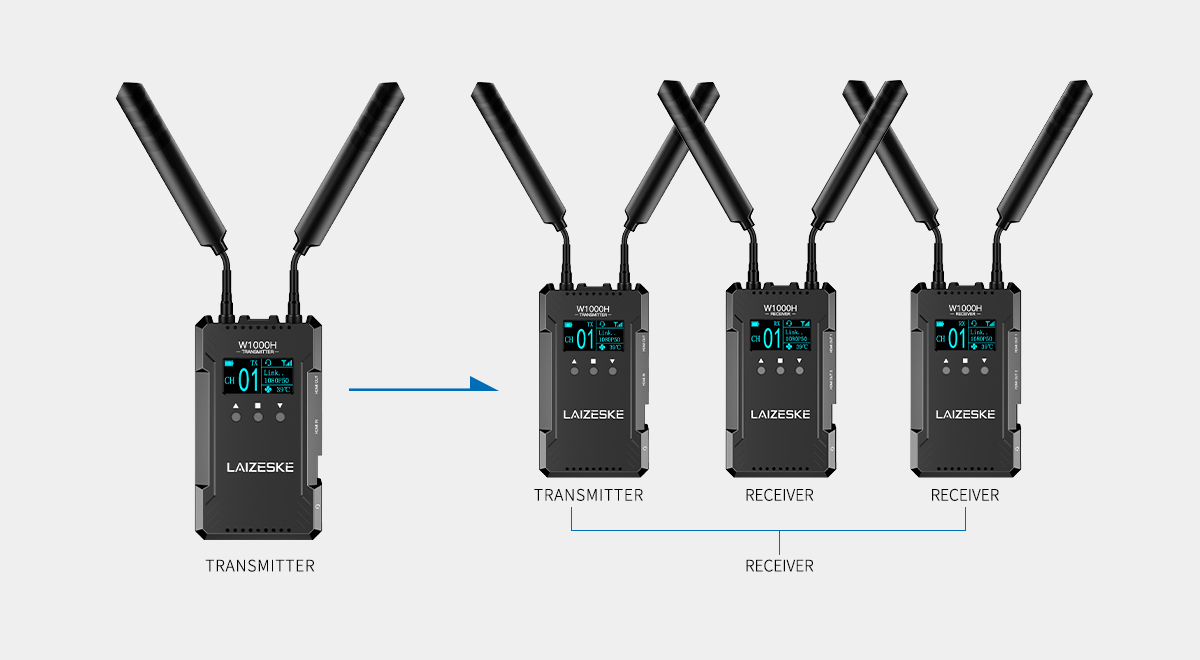

The transmitter can be flexible switched as a receiver, if you purchase two sets W1000H, you can setup 1 Transmitter, 3 receiver.
Reading status and control system easily

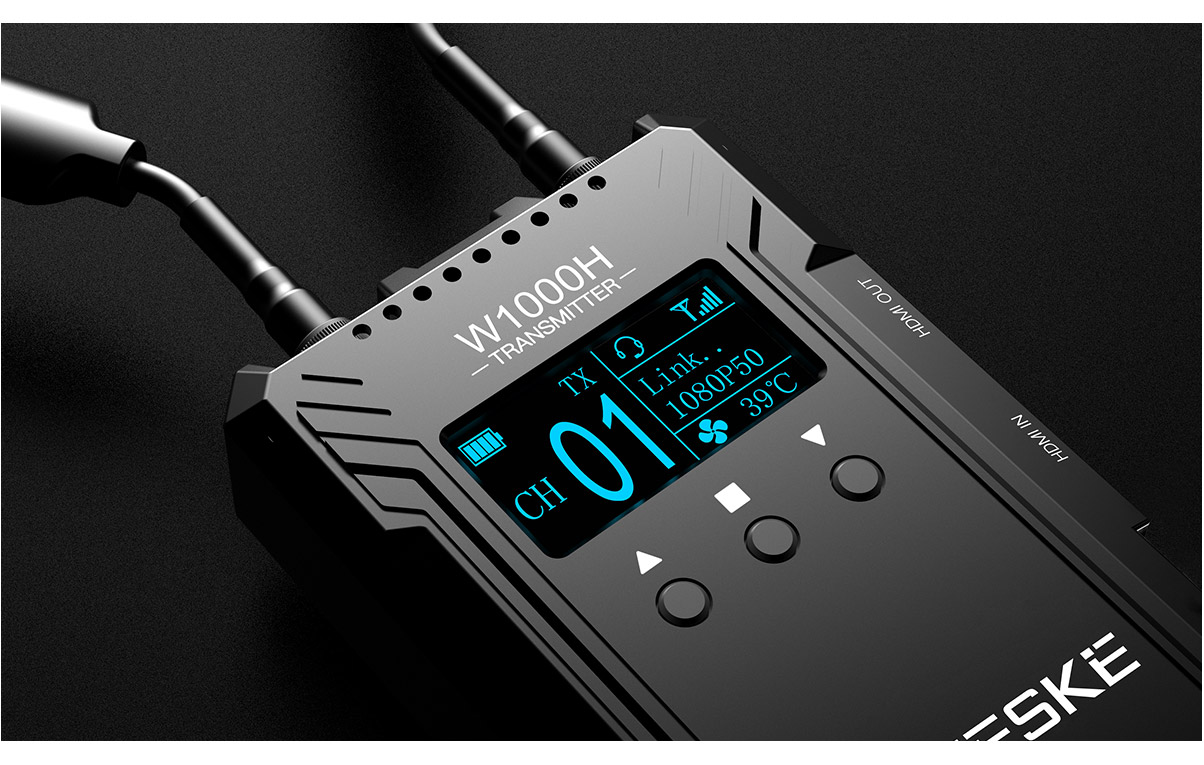

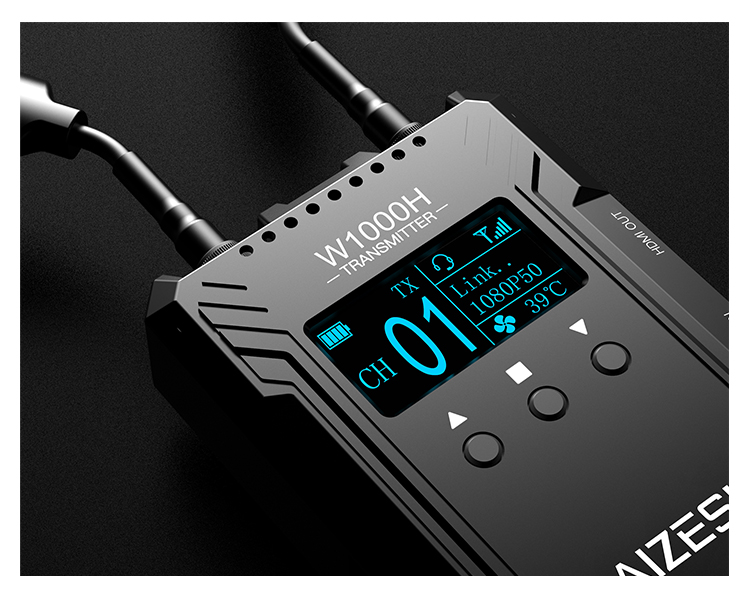

The W1000H has a creative OLED screen so you can check out all device status and control the system with displayed information on the screen.
The resolution supports 1080P60,1080i60 and under 1080P60 format, provide a higher quality image.
Monitoring for everyone on set
More than one device can “join the party”. W1000H allows you have up to four receivers bound to one transmitter that efficient your crew monitor every shot as it happens.
Make the shooting screen more stable
There are 13 frequency channels. Automatically scan the current environment to find out available channels and avoid the channels with interference.
Each channel can choose image quality priority or latency priority, switch freely as needed to help you easily cope with different occasions.
The excellent cooling design enable the device working long time in hot environment as well.
Real-Time APP Monitoring
Support Android/iOS system
Supports both Android and IOS system APP monitoring, up to 4 phones or tablets real-time monitoring with professional monitor features, such as monochrome, false color and center mark(other features are under development).
IOS users can search "LAIZESKE" on APP store to get APP (name: MMonitor)
Android APP (name: LAIZESKE ) can be get from the following ways: .
1. search "LAIZESKE" in GOOGLE PLAY
2. on the "Download" section of the W1000H details page
3. scan the QR code
Long-lasting power for your shooting

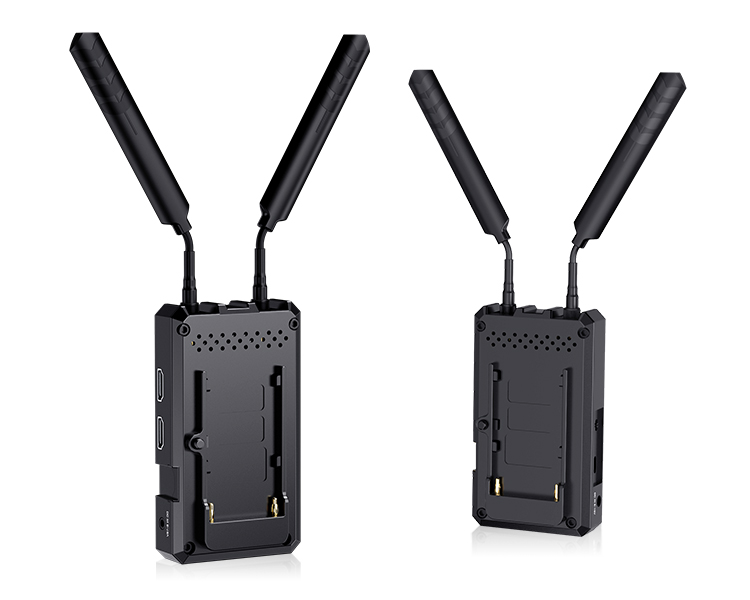

The W1000H is equipped with Sony F970 battery plate to be powered by standard F970 battery, Type-C ( 5V/1.5A ) charging and 6-16V DC power options.
Note: Due to the actual output of some batteries will be greater than 16V, which may burn the machine. Please ensure that the actual output voltage of the battery used is less than 16V.
The W1000H is widely used in the areas of filmmaking, sports events, wedding live broadcast, church live streaming, corporate events etc.
* Dual HDMI signal interfaces, meet your different needs
* More than 1000ft transmission range with 0.08S ultra-low latency
* Up to 1080P@60Hz, provide high quality image
* Wireless full-duplex talkback, real-time intercom between the director and the photographer
* The transmitter can be switched as a receiver at will
* One TX to multiple RX, monitoring for everyone on set
* Real-time APP monitoring for Android/iOS system
* 13 frequency channels, AUTO channel scan
| Screen | OLED |
| Interface |
1 * HDMI input 1* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
F970 battery Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <7.5W |
| HDMI Format |
480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 HDMI Type A |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Transmission Power | Maximum 17dBm |
| Band Width | 20MHZ |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 67L*24W*118H (excluding antenna） |
| Unit Weight | 128g |
| Screen | OLED |
| Interface |
2* HDMI output 2 *Antenna port （RP-SMA Male） DC power input 3.5mm headphone jack Type-C |
| Power Supply Way/Voltage |
F970 battery Type-C: 5V/1.5A DC adapter: 6-16V |
| Power Consumption | <6.5W |
| HDMI Format | 480P60, 576P60
720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 HDMI Type A |
| Frequency | 5.1-5.9GHz |
| Modulation Mode | OFDM |
| Receiving Sensitivity | -87dBm |
| Band Width | 20MHZ |
| Occupied Bandwidth | 20/40MHz |
| Latency | Min 0.08S |
| Intercom Frequency Response Range | 20Hz~20KHz |
| Operating Temperature | 0℃ ～ 40℃ |
| Storage Temperature | -20℃ ～ 60℃ |
| Unit Size(mm) | 67L*24W*118H (excluding antenna） |
| Unit Weight | 128g |
| Size of Color Box | 252L*173W*50H (mm) |
| Outer Carton QTY | 10PCS |
| Size of Outer Carton | 305x255x420mm |
| Gross Weight |
1× Transmitter
1× Receiver
5× Antenna
1× Cold Shoe
1× Type-C to USB
1× User Manaul
