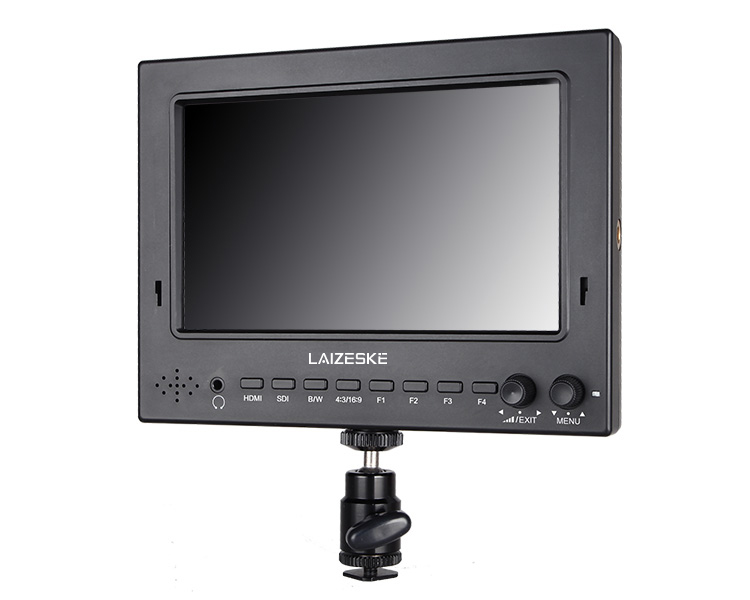

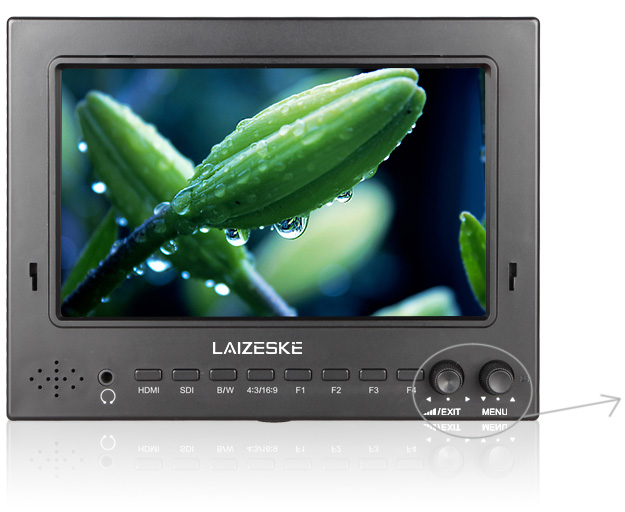

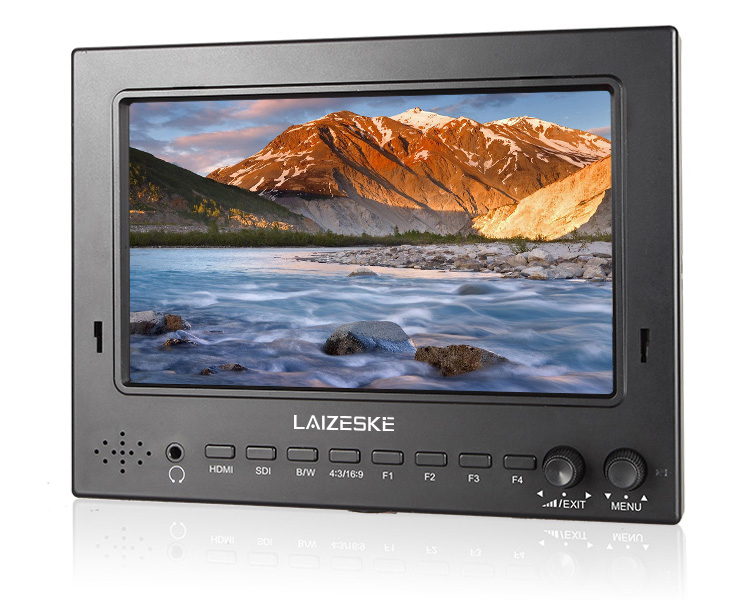

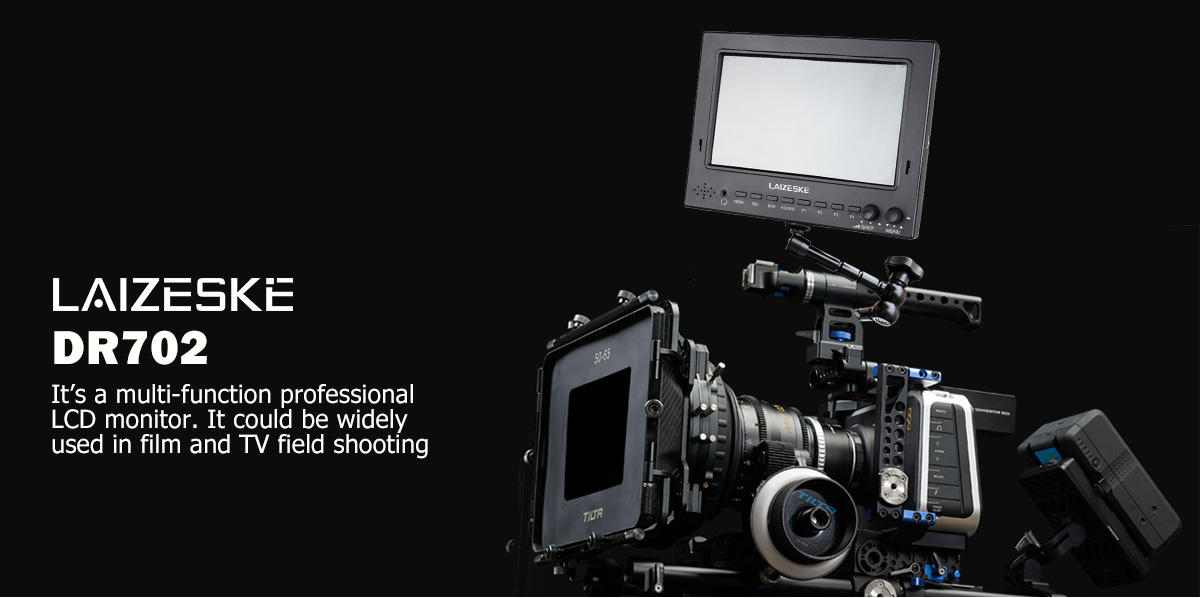

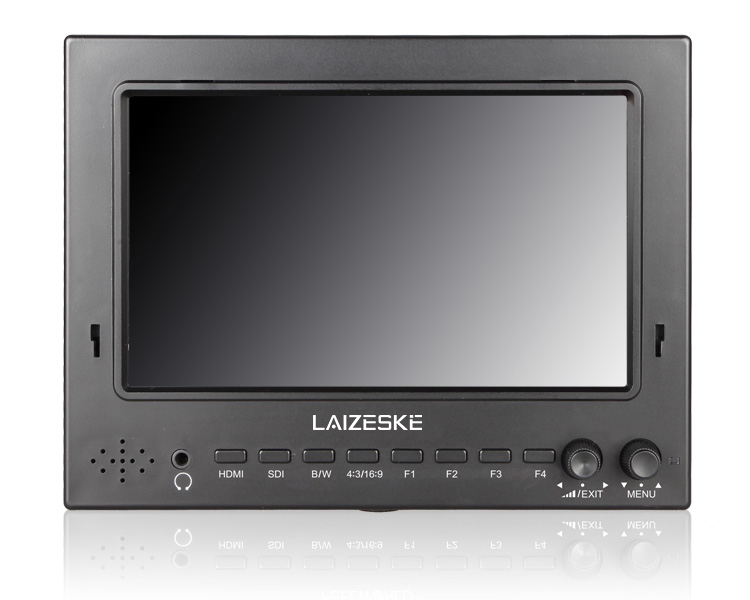

LAIZESKE new release DR702 7-inch IPS high-resolution monitor, with the main demands of premium, lightweight, clear, full functions. It is with 600cd/m² brightness, 800:1 high contrast ratio and 1024x600 resolution HD images, and it also provides a wide range of signal inputs, HDMI, SDI input and output, terminals to facilitate flexible use for the director. Complete Focus Assist, warning feature provides photographers to accurate diagnostic tool, to make wonderful film without defects. The setting knob and six shortcut keys make the monitor adjustment and settings more quickly.
-

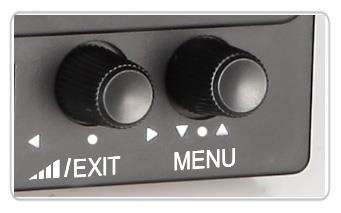

Innovation OSD Operation
DR702 double function knobs are LAIZESKE's exclusive technology feature, which will bring you more convenient and rapid operation feeling.
-

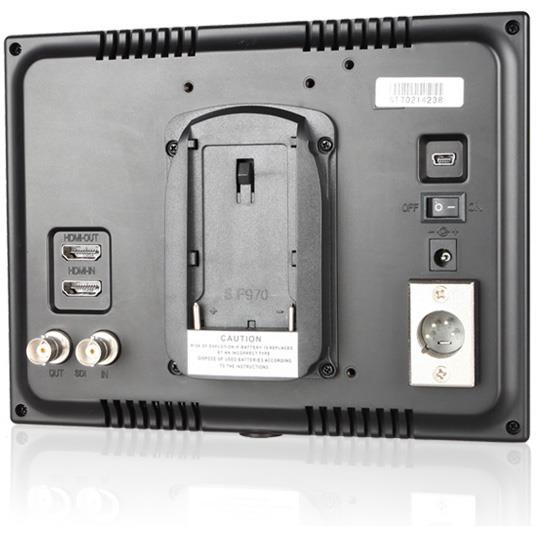

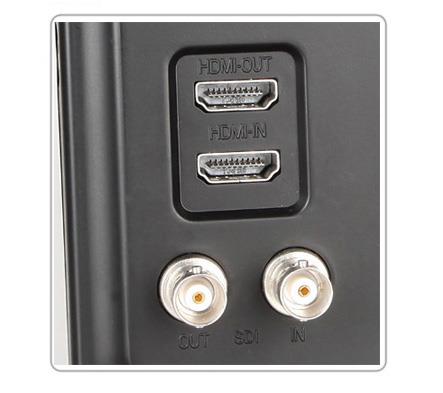

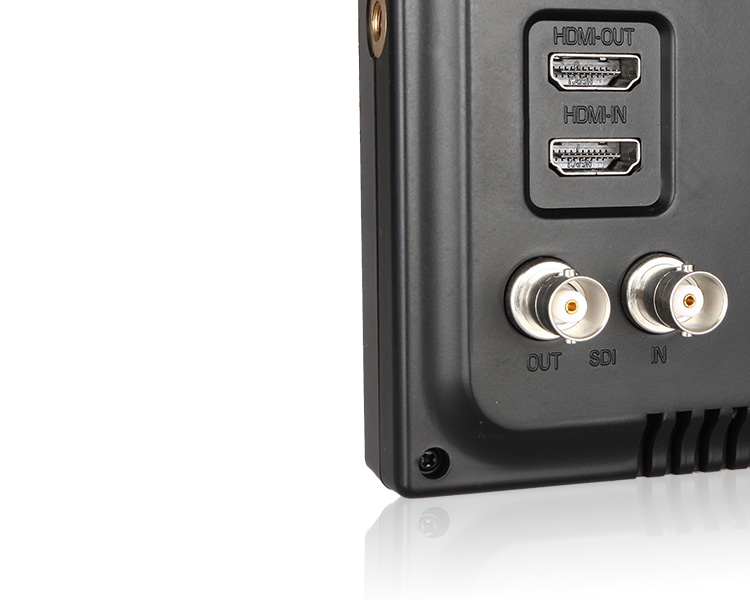

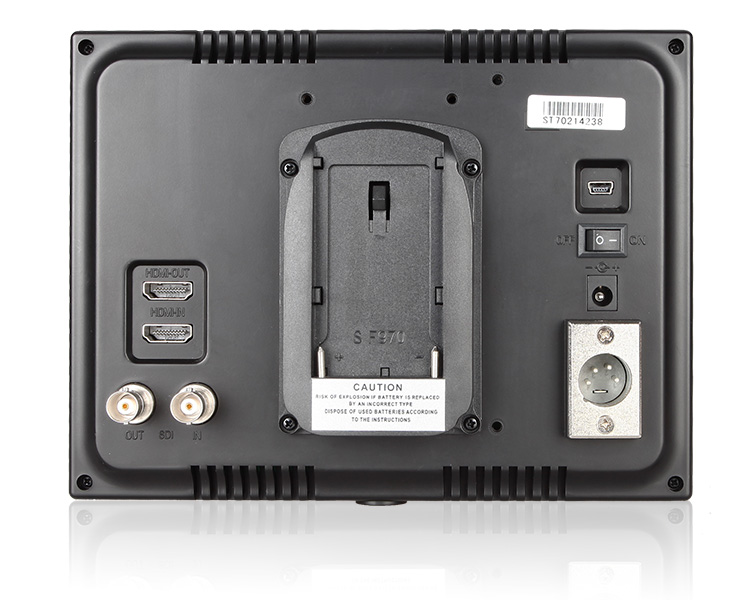

Input and Outputs
The DR702 is with SDI and HDMI inputs and outputs. Since the monitor is all digital, it shows the purest and cleanest signal directly on the LCD panel. To remove the legacy analog inputs and circuits makes your image as clean as possible.
-

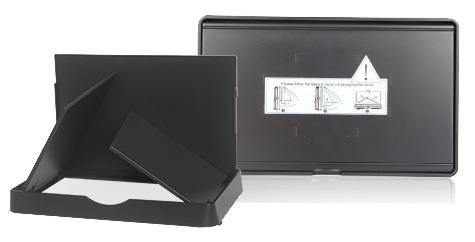

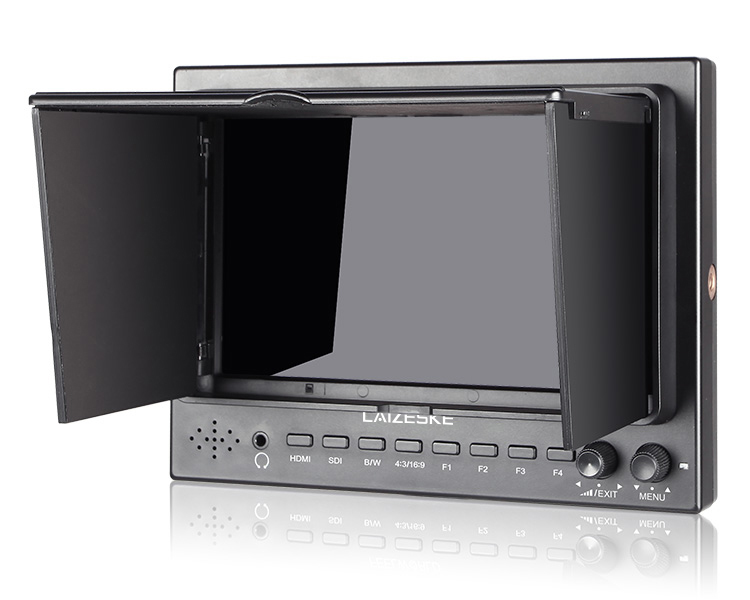

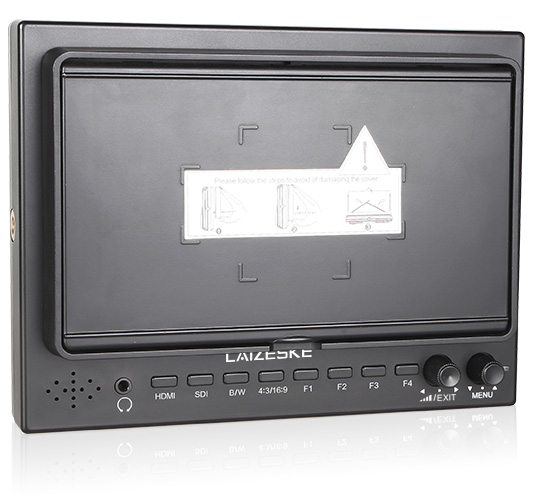

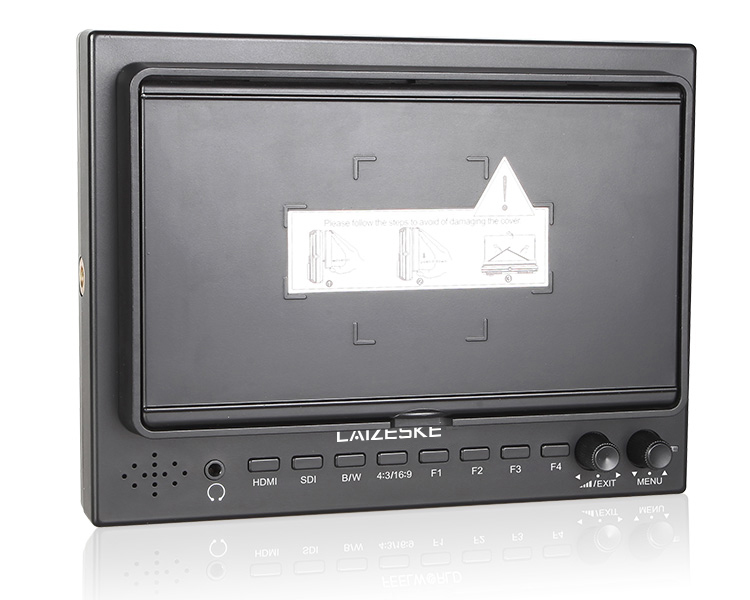

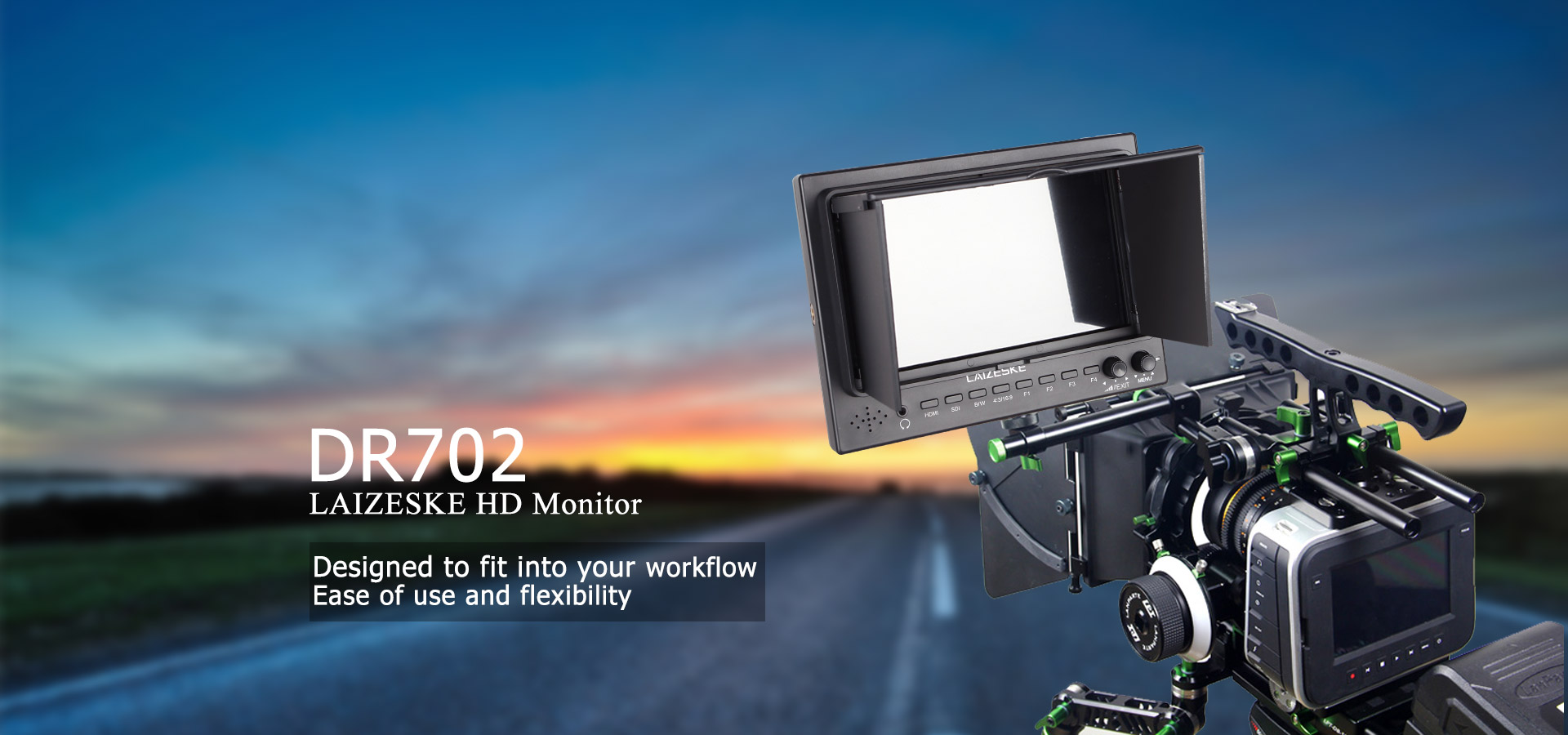

Foldable Sunshade
New extended screen hood, acquire ideal visual effect under almost all environments.

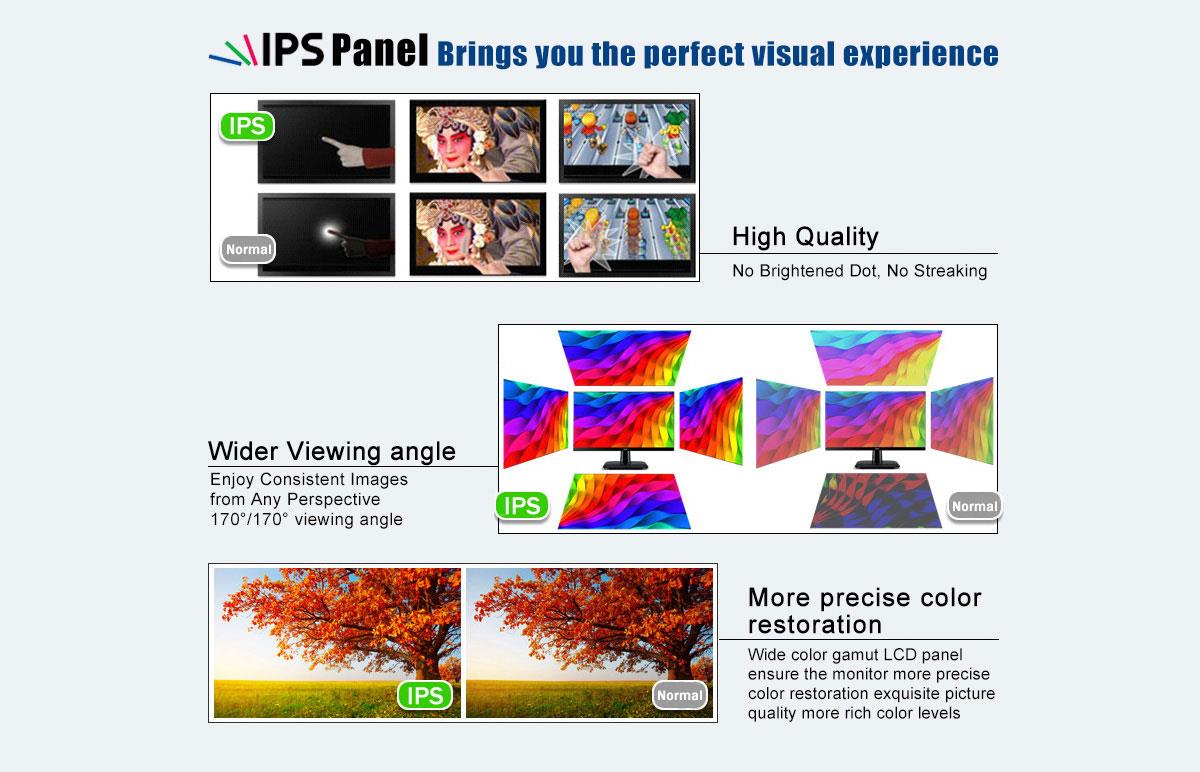

1. Wide view angle, IPS panel 1024x600, bright, colorful display
2. SDI and HDMI inputs and loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
4. Knob Menu Selection, Volume Control
5. Feature Options Shortcuts Panel Operation, Simple and Efficient
6. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
7. Power using included 12-volt supply or use standard 4-pin XLR
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

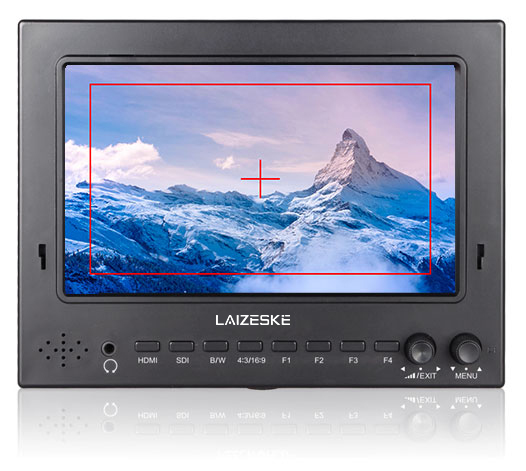

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | DR702 |
| Screen Size | 7" IPS |
| Resolution | 1024×600 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 600cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Input
| 1 X BNC | SDI |
| 1 X HDMI | HDMI |
Output
| 1 X BNC | SDI |
| 1 X HDMI | HDMI |
Audio
| Audio Out | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC6～24V |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Unit Size | 194L×148H×28.5D mm |
| Unit Weight | 521g |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Check Field (Red,Green,Blue,Mono) |
| * Camera Mode |
| * Pixel to Pixel |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom All |
| * U/D & L/R Zoom |
| * Custom Color Temperature |

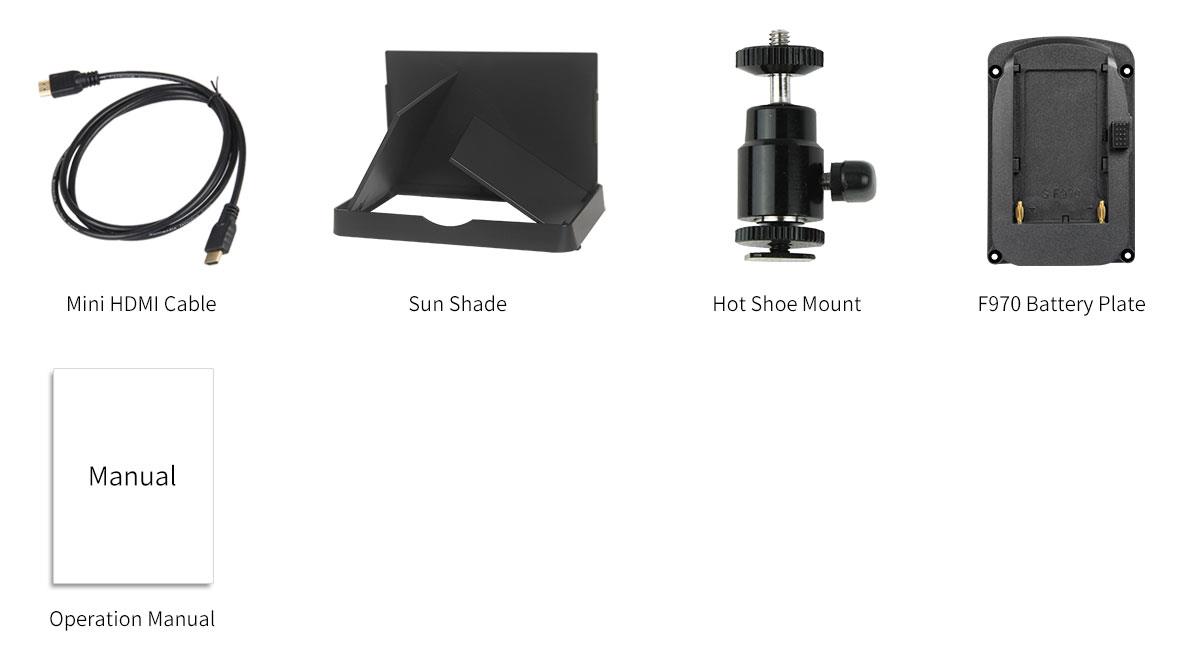

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
-
