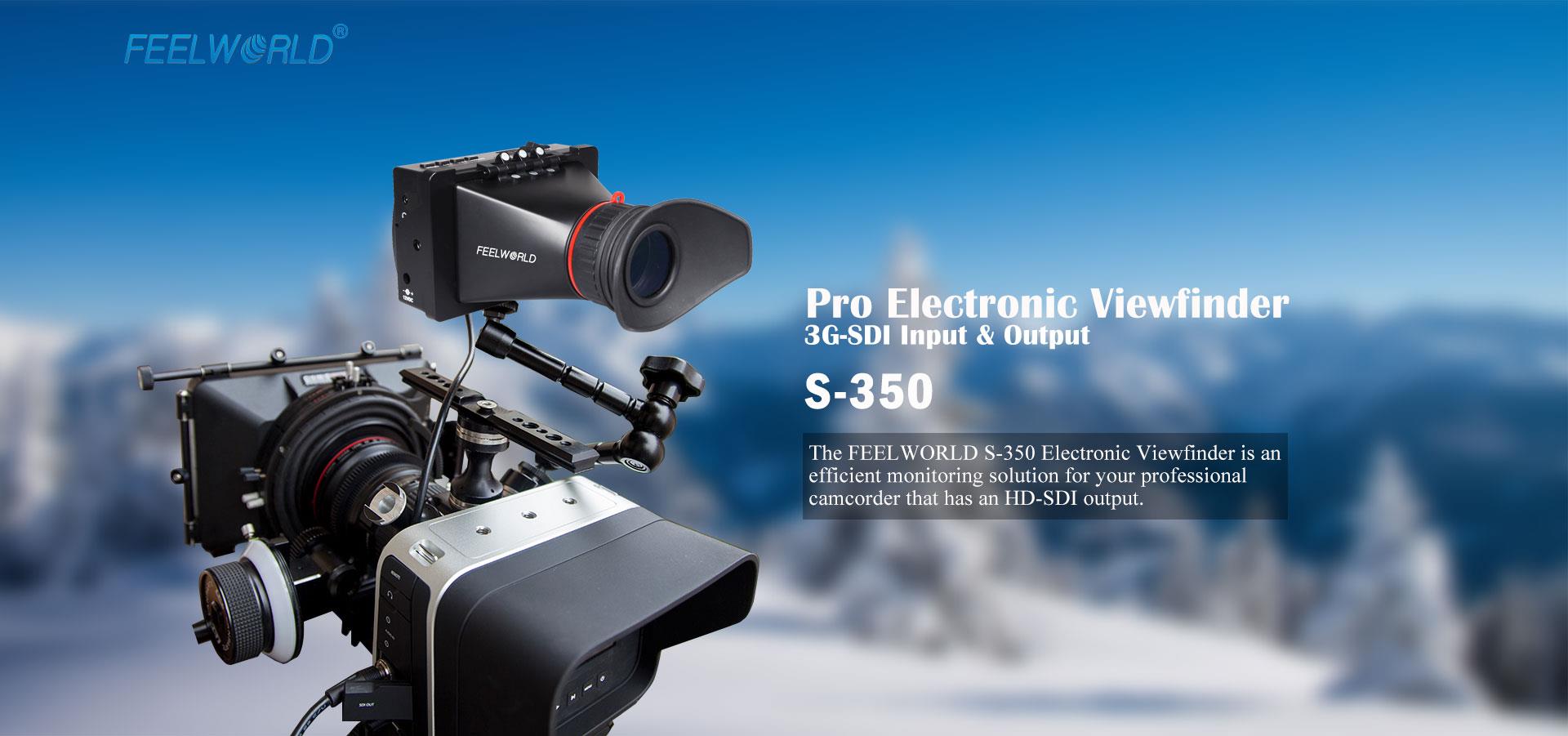

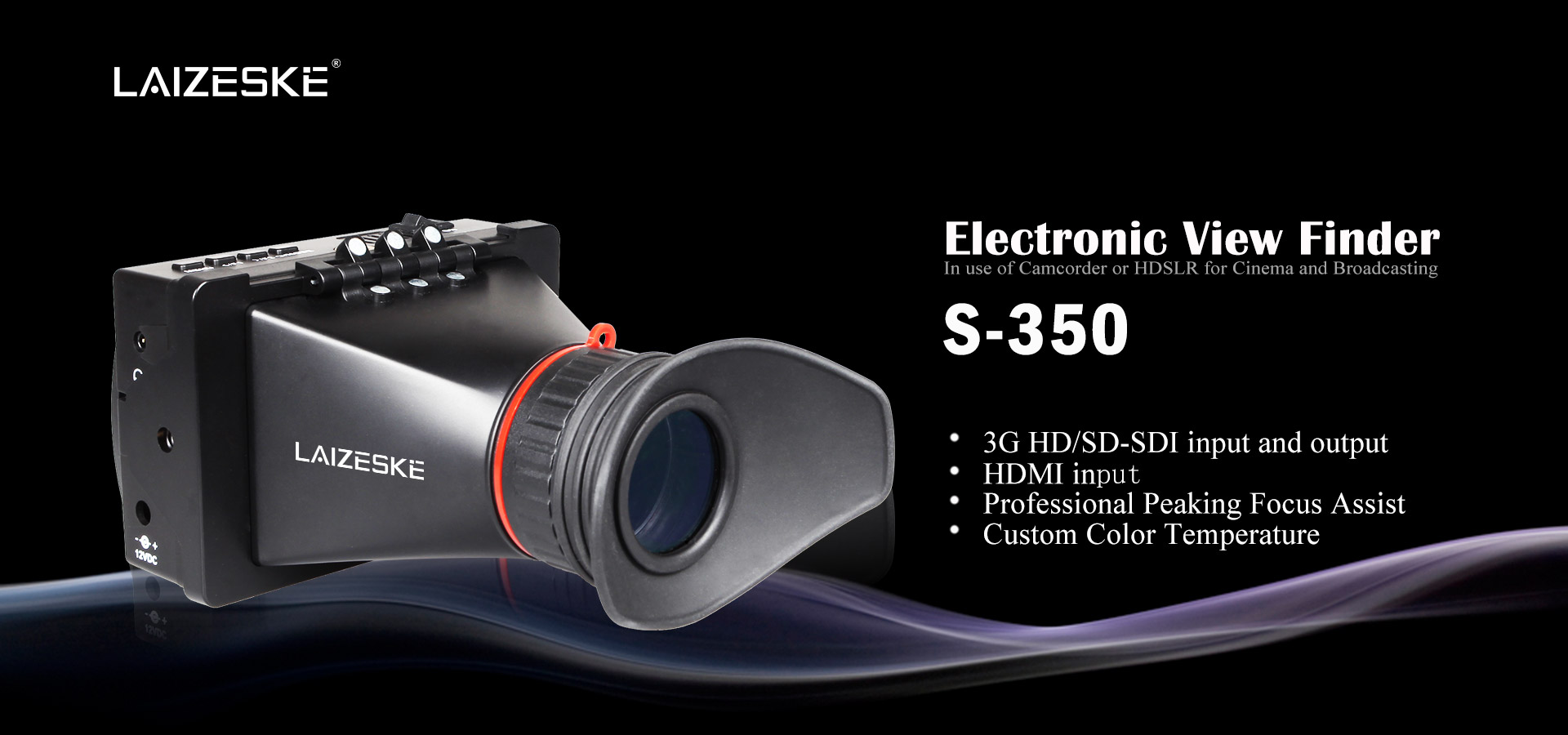

S350 FEELWORLD New 3G HD/SD-SDI Electronic View Finder. This EVF Electronic View Finder is transforming the form factor of DSLR cameras for video with our electronic viewfinder. The EVF is a 3.5” TFT-LCD Max resolution up to1920x1440. This electronic viewfinder allows you to operate the DSLR camera or any camcorder with SDI and HDMI output, with the correct form factor for video with the camera "in-line" to your rod system (the most stable way) and your eye in the EVF offset. In addition, brightness, contrast, hue and saturation can be adjusted. Ideal for indoor and outdoor filming.
3.5" HD LCD Display
The FEELWORLD S350's high resolution display provides excellent picture quality and color reproduction for exact video monitoring.
3G/HD/SD-SDI

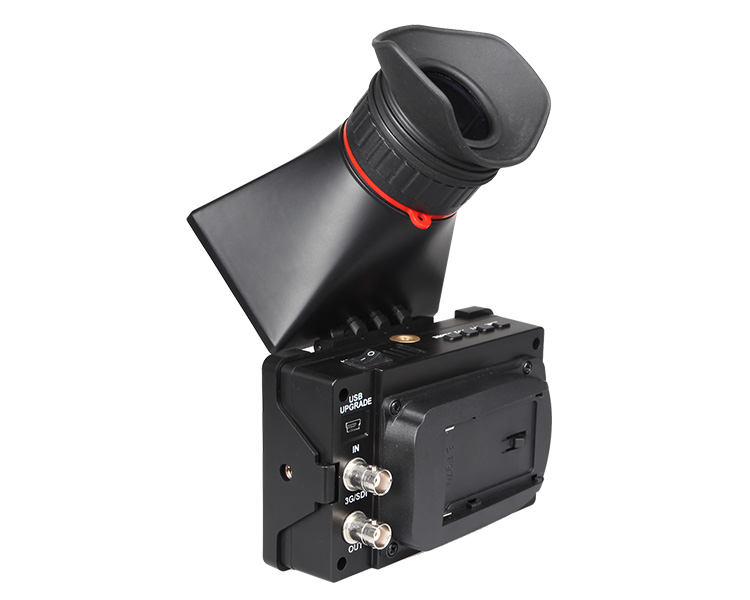

This S350 has 3G-SDI/HDMI input and 3G-SDI loop-through output.

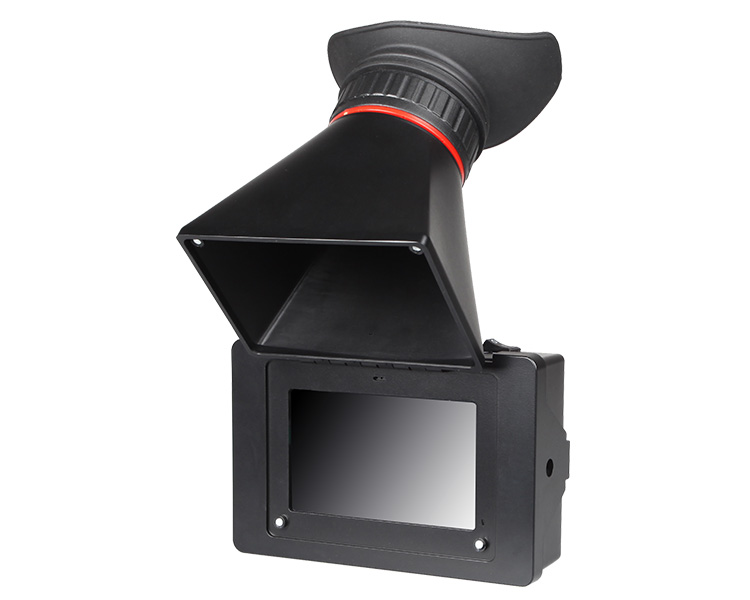

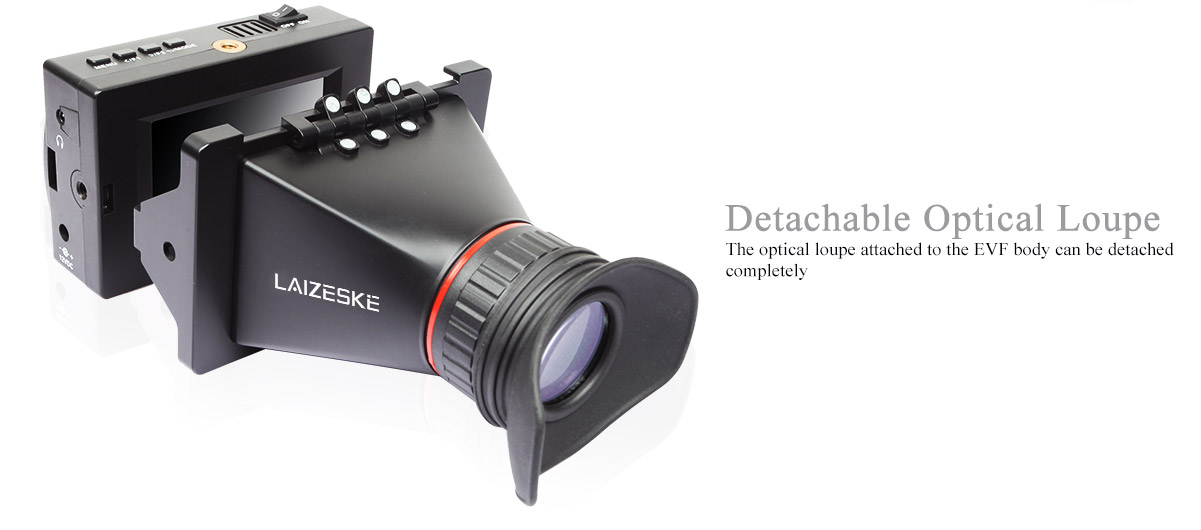

Openable Optical Loupe
The optical loupe attached to EVF body can be flip up open.
1. Wide view angle, HD, bright, colorful display
2. SDI, HDMI inputs and SDI loop-through output
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
4. Monitoring via 3.5mm stereo headphone jack
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
Display Spec.
| Model | S350 |
| Screen Size | 3.5" |
| Resolution | 800×480 pixels |
| Dot pitch | 0.0315(W)×0.0945(H) mm |
| Aspect Ratio | 15:9 |
| Brightness | 315cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X BNC | SDI |
| 1 X HDMI | HDMI |
Output
| 1 X BNC | SDI |
Audio
| Audio Out | Stereo Headphone |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC6～18V |
| Power Consumption | ≤6W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket |
| Unit Size | 124.3L×87.5H×178.5D mm |
| Unit Weight | 344g |
